350-500MHz Coaxial Isolator with SMA Female Connector

350-500MHz 30W RF Coaxial Isolator is high isolation and high power.

Item NO.:
MNI-0.35-0.5-SMAF
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Guangzhou/Shenzhen

Inquiry now

Products Details

Product Name

Coaxial Isolator 350-500MHz ,SMA Female connector type,30W

Product Features

350-500MHz 30W RF Coaxial Isolator is Low VSWR,Low Insertion loss and high Isolation RF Coaxial Isolator is widely used for Military,Space and Commercial Applications.

Technical &Mechanical Specifications

Model No.	MNI-0.35-0.5-SMAF
Freq(MHz)	350-500MHz
Insertion Loss(dB)	≤0.7/≤0.8
VSWR	≤1.50
Isolation(dB)	≥15/≥14
Forward Power(W)	300 CW
Operating Temperature(℃)	-10~70
Connector	SMA-Female

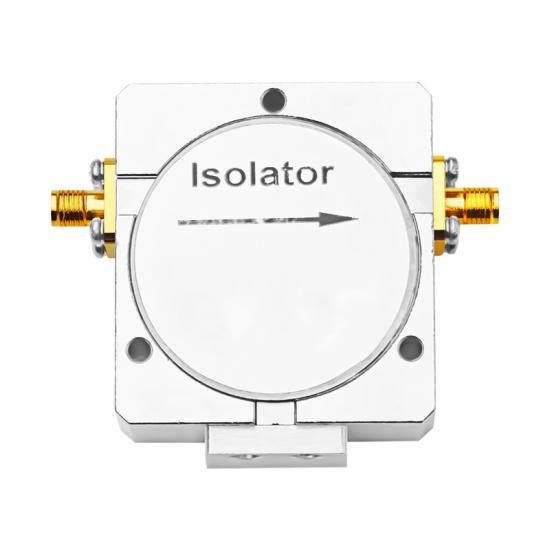

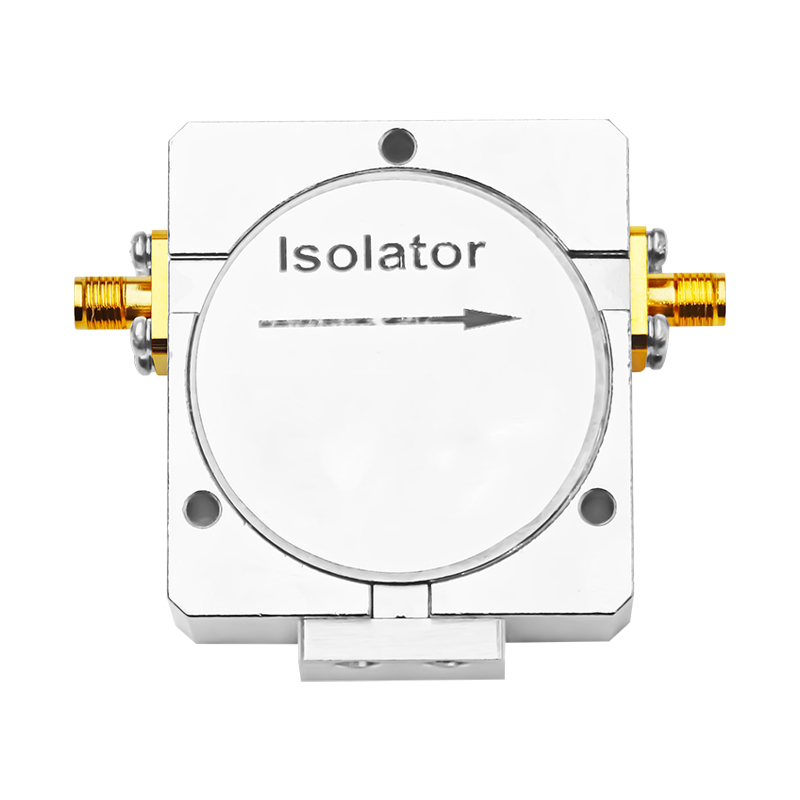

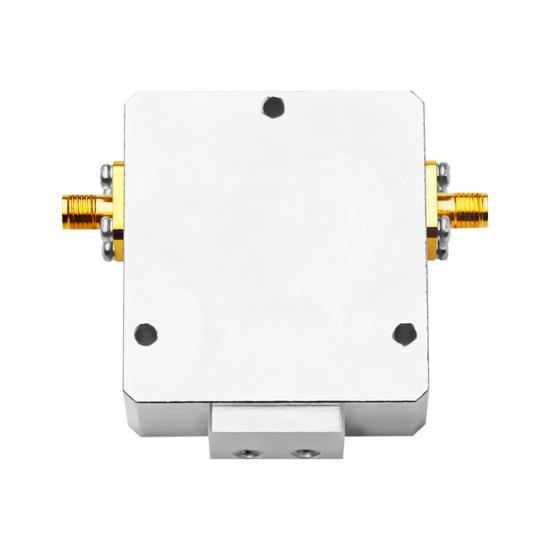

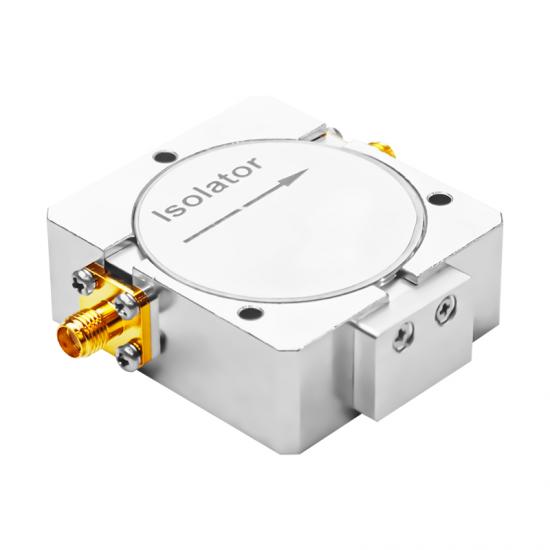

Product Pictures:

OUR SERVICES

1. Professional skills support for RF Passive Products
2. OEM/ODM services is available.
3. 24 hours you can contact our salesman and engineer.
4. We will try our best to provide support whatever you need and we can do.

NOTE:All the specifications can be changed as customer's requirment. Our company has a variety of products to choose.
