Product Description
The 380-397MHz RF Isolator is a high-performance passive component designed to protect RF sources from reflected power. This Maniron isolator stands out with its Low Insertion Loss (0.3dB) and stable VSWR, ensuring maximum signal integrity and system longevity in critical UHF communication networks.
Product Features
- Superior Protection: Effectively handles 200W forward power and 100W reverse power to safeguard your equipment.
- High Isolation: Provides a minimum of 23dB Isolation, preventing signal feedback and interference.
- Wide Temperature Range: Operates reliably from -30°C to +75°C, making it suitable for both indoor and outdoor base station environments.
Technical Specifications
| Model No. | MINJK-1-100/380-397MHz |
| Frequency Range | 380 - 397 MHz (Clockwise) |
| Insertion Loss | 0.3 dB Max |
| Isolation | 23 dB Min |
| VSWR | ≤ 1.20 |
| Forward Power | 200W CW |
| Reverse Power | 100W |
| Connector Type | N-Female (N-K) |
| Operating Temp | -30°C to +75°C |
NOTE: All specifications can be fully customized (Forward/Reverse power, Isolation, etc.) to meet your requirements. Maniron provides a wide variety of RF Isolators for your choosing.
Frequently Asked Questions
- Q1: What is the main benefit of using a Clockwise (CW) isolator?
- A: It defines the signal flow direction, ensuring that signal energy moves from the input to the output with minimal loss while routing reflected power away from the source.
- Q2: Can I request a custom connector type, like SMA or DIN?
- A: Yes, we offer OEM services. Although N-Female is standard, we can customize the connector type based on your interface needs.
- Q3: Why is high reverse power capability important?
- A: High Reverse Power (100W) ensures the isolator can safely handle significant reflections from mismatched antennas without damaging your transmitter.
- Q4: How can I get technical support for my RF system design?
- A: Our sales and engineering teams are available 24 hours a day. Please contact us for professional skill support or to discuss custom purchasing options.

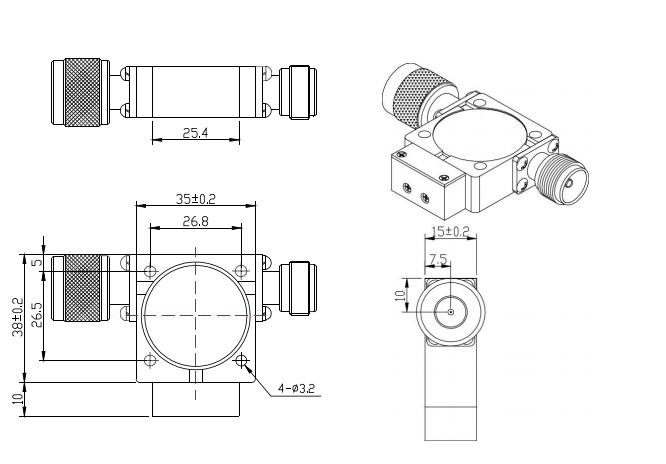

Outline Drawing
