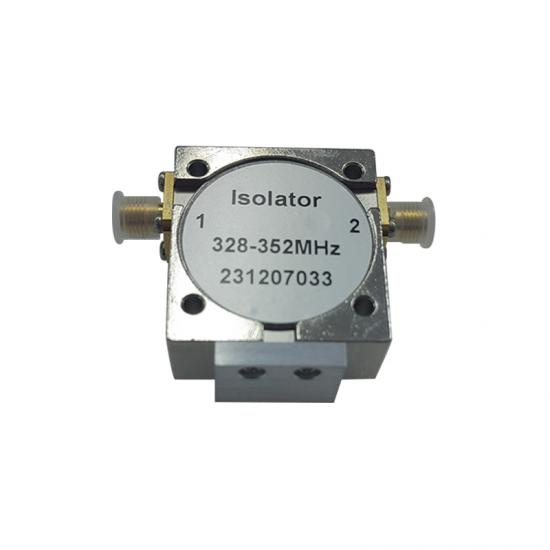

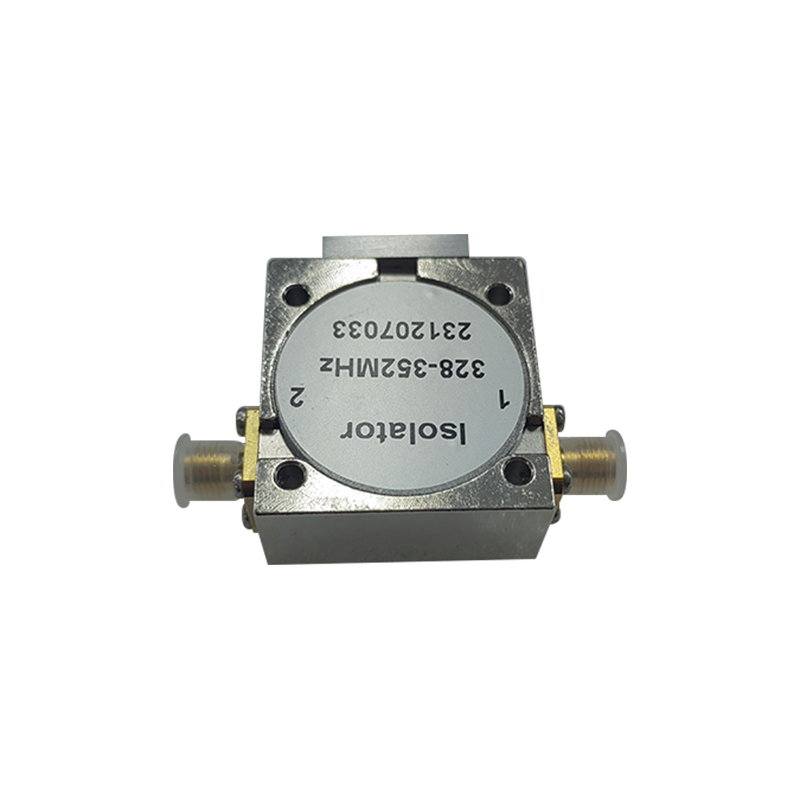

328-352MHz rf coaxial isolator high isolatin sma female connector

328-352MHz coaxial isolator is high isolation and widely used for telecommunications
  • Item NO.:

    MNRI-300-SF
  • Product Orgin:

    China
  • Brand:

    Maniron
  • Shipping Port:

    Shanghai/Shenzhen/Guangzhou
  • Products Details

Product Name

RF coaxial isolator(328-352MHz)


Product Features

328-352MHz Microstrip line coaxial isolator is Wide Frequency Band ,Low VSWR,Low Insertion loss and High Isolation.

Technical &Mechanical Specifications

  Freq(MHz)

                                                   328-352

Insertion Loss(dB)

≤0.5

Isolatoion(dB)

≥20

 Forward Power (W)

100W CW

Impedance

50 ohm

VSWR

1.25 max

Reverse Power

30W

Direction

clockwise

uhf coaxial isolator
