Product Description
The UHF Coaxial Isolator (450-470MHz) is a professional-grade passive component engineered for maximum signal protection. Featuring an industry-leading 60dB Isolation and an ultra-low 0.6dB Insertion Loss, it ensures peak transmitter efficiency while providing absolute shielding from reflected power. This isolator is the preferred choice for high-reliability Military, Space, and Commercial communication systems.
Product Features
- Elite Isolation Performance: Delivers a minimum of 60dB Isolation, offering superior protection for sensitive RF sources.
- Precision Signal Flow: Low VSWR (≤ 1.20) and minimal insertion loss ensure seamless integration with high-performance UHF networks.
- 100W Power Capability: Robustly handles 100W CW on both forward and reverse paths for mission-critical reliability.
- Rugged Environmental Design: Operates consistently across a wide temperature range of -30°C to +75°C.
Technical Specifications
| Model No. | NKK-1-100 / 450-470MHz |
| Frequency Range | 450 - 470 MHz (Clockwise) |
| Insertion Loss | ≤ 0.6 dB |
| Isolation | ≥ 60 dB |
| VSWR | ≤ 1.20 |
| Forward Power | 100 W CW |
| Reverse Power | 100 W |
| Connector Type | N-Female In / N-Female Out |
| Operating Temp | -30°C to +75°C |
NOTE: All specifications, including isolation levels, power handling, and frequency range, can be customized via our OEM services to match your exact project requirements.
Frequently Asked Questions
- Q1: Why is 60dB Isolation necessary for UHF applications?
- A: 60dB Isolation is an elite performance tier. It provides almost complete decoupling between the transmitter and the antenna, ensuring that even under severe load mismatch, the reflected energy reaching the transmitter is virtually zero.
- Q2: Does the 0.6dB insertion loss impact signal range?
- A: With such a Low Insertion Loss (0.6dB), the impact on signal range is negligible, ensuring that your system maintains high power efficiency while staying protected.
- Q3: Is this isolator suitable for outdoor base station environments?
- A: Yes, with a robust temperature range of -30°C to +75°C, it is perfectly suited for various outdoor enclosures and commercial base station setups.
- Q4: How can I request professional technical support?
- A: Our engineering team and sales experts are available 24 hours a day. We offer professional skill support to help you achieve the highest reliability for your RF infrastructure.

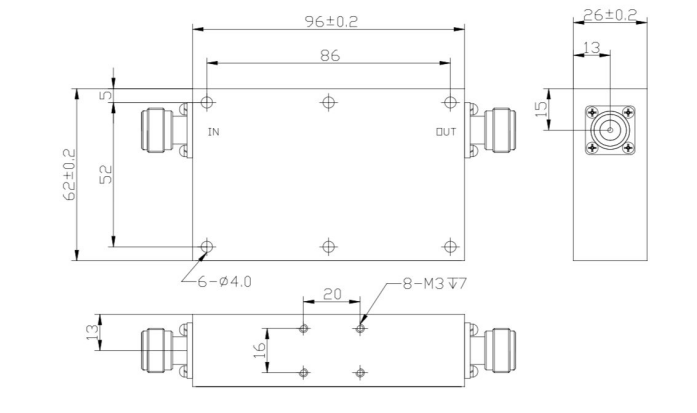

Mechanical Drawing
