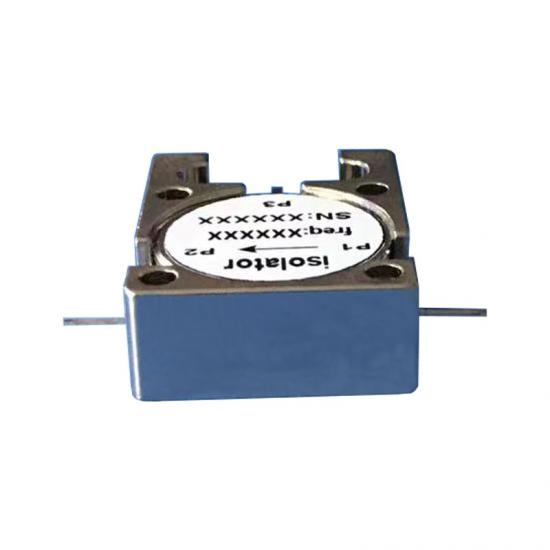

3800-4200MHz Drop-In Isolator With High Isolation 5G

3800-4200MHz Drop-in Isolator is high isolation and widely used for Military,Space and Commercial Applications
  • Item NO.:

    MDII-3800/4200
  • Product Orgin:

    China
  • Brand:

    Maniron
  • Shipping Port:

    Shanghai/Shenzhen/Guangzhou/Ningbo
  • Products Details

Product Name

3800-4200MHz Drop-in Isolator is high isolation and Power.


Technical &Mechanical Specifications

Model No.

                                                       MDII-3800/4200

Frequency Range

3800-4200MHz

Insert loss

0.35dB max

Isolation

20 dB min

Return loss(dB)

20 dB min

Avg Power

100W

Size

19mm*25.4mm*8mm

Connector Type

TAB

Temperature

-30~+75℃


Mechanical Drawing

3800-4200MHz Drop-In Isolator
