Product Name

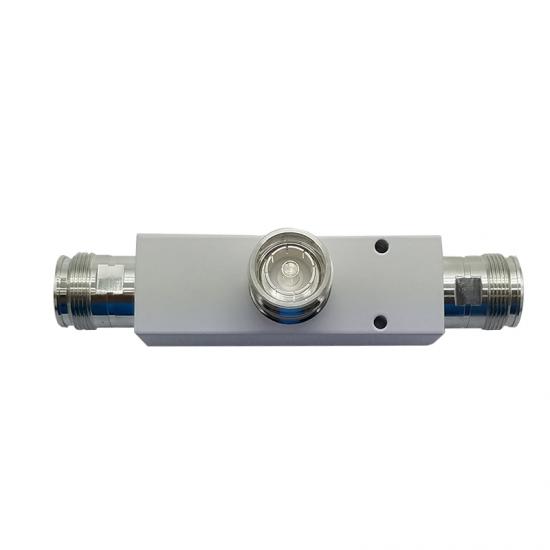

698-3800 MHz power tapper with 4.3-10-Female connector,widely for telecommunication
Product Features
◆ Wide Frequency Band 698-3800MHz
◆ 2G/3G/4G/LTE Coverage
◆ Low VSWR & Insertion Loss
◆ High Isolation
◆ Low Passive Intermodulation
◆ Widely used in IBS projects
Technical & Mechanical Specifications
|
Splitting ratio |
1 : 0.33 : 0.67 |
1 : 0.25 : 0.75 |
1 : 0.2 : 0.8 |
1 : 0.16 : 0.84 |
1 : 0.11 : 0.89 |
1 : 0.1 : 0.9 |
1 : 0.05 : 0.95 |
1 : 0.03 : 0.97 |
1 : 0.01 : 0.99 |
|
Frequency range |
698-3800 MHz |
||||||||
|
Insertion loss |
≤ 2.2 dB |
≤ 1.7 dB |
≤ 1.3 dB |
≤ 0.9 dB |
≤ 0.8 dB |
≤ 0.6 dB |
≤ 0.4 dB |
≤ 0.3 dB |
≤ 0.3 dB |
|
Coupling |
4.8 dB ±1.5 dB |
6.1 dB ±1.5 dB |
7 dB ±1.2 dB |
8.6 dB ±1.2 dB |
9.5 dB ±1.2 dB |
10.4 dB ±1.2 dB |
13.2 dB ±1.2 dB |
15.1 dB ±1.2 dB |
20.1 dB ±1.2 dB |
|
IM - value 3rd order @ 2 x 20 W |
≤ -160 dBc |
||||||||
|
VSWR |
≤ 1.3 |
||||||||
|
Power rating |
Average Power 300W (CW) |
||||||||
|
Connectors |
4.3-10 female |
||||||||
|
Temperature range |
-30 °C – +75 °C |
||||||||
|
Degree of protection |
IP 65 |
||||||||
|
Environmental conditions |
ETSI EN 300019-1-1 Class 1.2 ETSI EN 300019-1-2 Class 2.3 ETSI EN 300019-1-4 Class 4.1E |
||||||||
|
Weight |
0.22 kg |
||||||||
