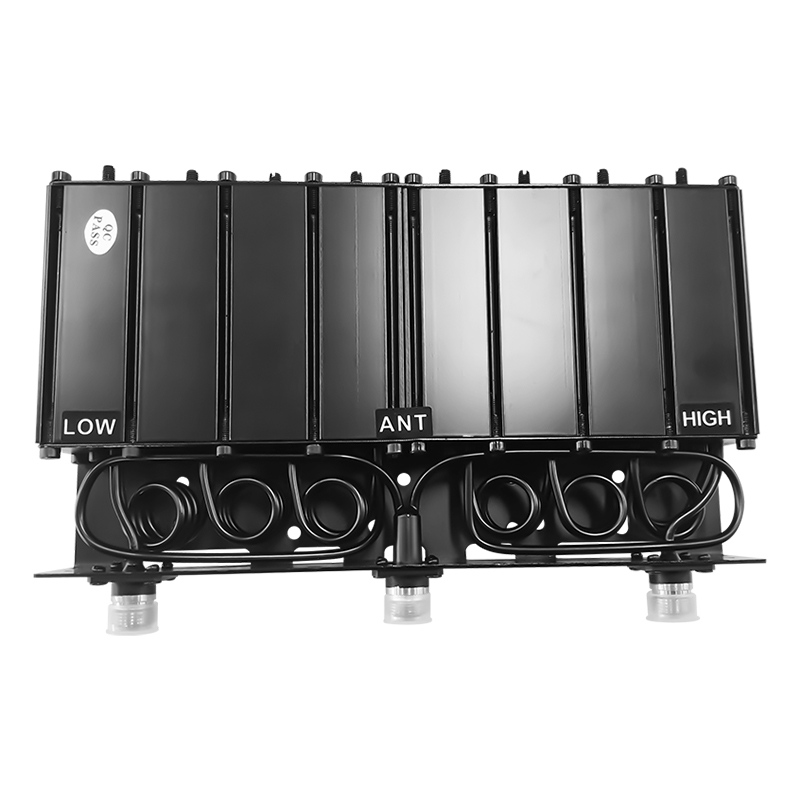

High Quality 100W 150-174MHz High Isolation 75dB 8 Cavity Duplexer N/BNC-F for DAS Radio Repeater

150-1745MHz Duplexer N/BNC-F, Low PIM, High Isolation. It's Easy For Installation.

Item NO.:
MNL-150K
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Shenzhen/Guangzhou
Color:
Black

Inquiry now

Products Details

Product Name

100W 150-174MHz Duplexer N/BNC-F High Isolation 75dB 1.40VSWR RF Duplexer for DAS Radio Repeater.

Product Features

◆Compact, low weight

◆High reliability

◆Simple installation

Technical &Mechanical Specifications

Model No.	MNL-150K
Freq(MHz)	150-174MHz
VSWR	≤1.4
Bandwidth(KHz)	±10000
Frequency Spacing(MHz)	4.6
Insertion Loss	≤1.2dB
Isolation	≥75dB
Maximum Input Power	100W
Normal Impedance	50 ohm
Connector	N-F
0perating Temperature	-20℃- +50℃
Weight	1.8KG

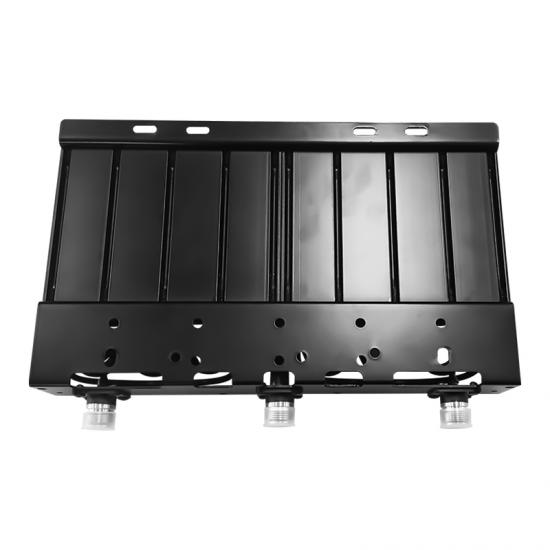

Outline Pictures:

Leave Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Subject : High Quality 100W 150-174MHz High Isolation 75dB 8 Cavity Duplexer N/BNC-F for DAS Radio Repeater
Im interested in your "High Quality 100W 150-174MHz High Isolation 75dB 8 Cavity Duplexer N/BNC-F for DAS Radio Repeater", please inform me more detailed product information and price. Thankyou!
