400-480MHz 5.5dBi High Gain Mobile Car Antenna

This 400-480MHz Mobile Antenna is specially designed for vehicle wireless communication systems. Equipped with M110 heavy-duty magnetic mount, this 110cm long antenna supports max 100W power input, standard N female connector and customizable interface options, delivering reliable outdoor mobile signal coverage for trucks, engineering vehicles and mobile radio equipment.

Item NO.:
MN-400BII
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Shenzhen
Color:
/

Inquiry now

Products Details

Product Name

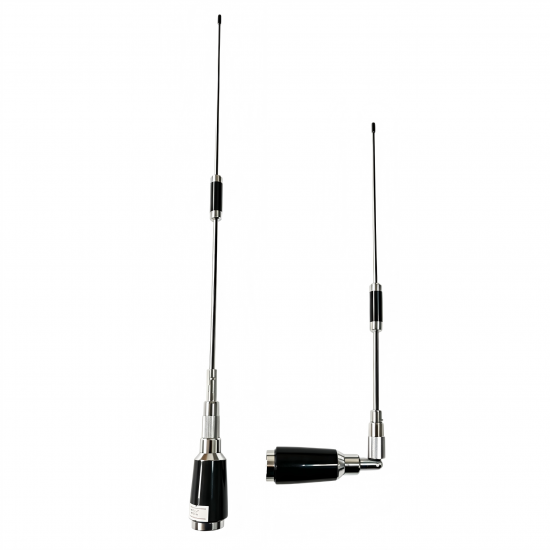

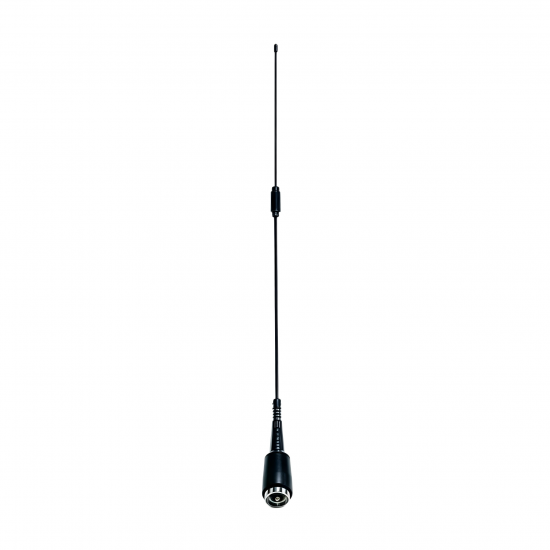

400-480MHz High Gain UHF Car Antenna Vertical Mobile Antenna with M110 Magnetic Base

Product Features

◆ Stable electrical index: VSWR ≤1.5, standard 50ohm impedance, max 100W power bearing capacity

◆ Standard N-type connector, custom plug interface available to match diverse vehicle radio devices

◆ Matched M110 strong magnetic mount, easy installation without drilling on car roof

Technical &Mechanical Specifications

Working Frequency	400-480MHz
Bandwidth	16MHz
Gain	5.5dBi
VSWR	≤1.5
Impedance	50 Ohm
Polarization	Vertical
Max Power	100W
Antenna Length	110cm
Net Weight	220g
Standard Connector	N-Type

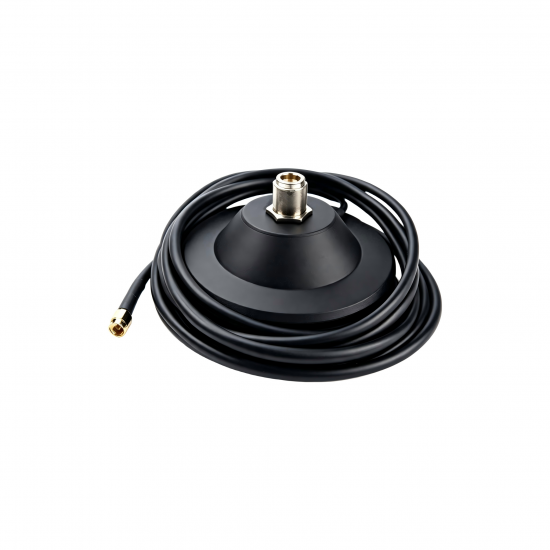

Optional Accessory	M110 Heavy Magnetic Mount
Custom Service	Customized Connector Supported
