 / DC-6GHz 4.3/10 Straight Male Connector for 1/2" Super Flexible RF Cable

RF Connector
RF Connector RF Connector RF Connector RF Connector

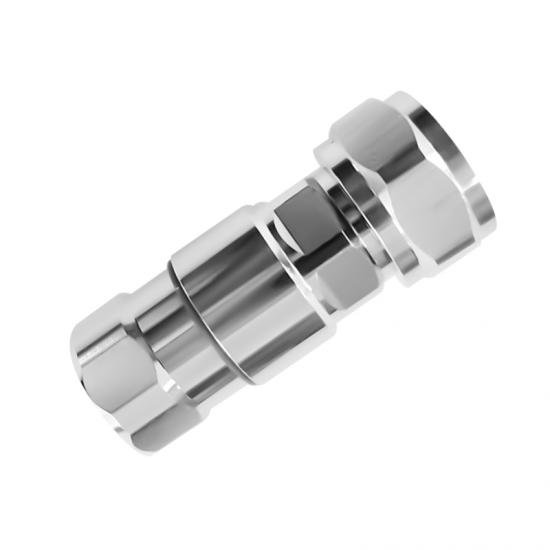

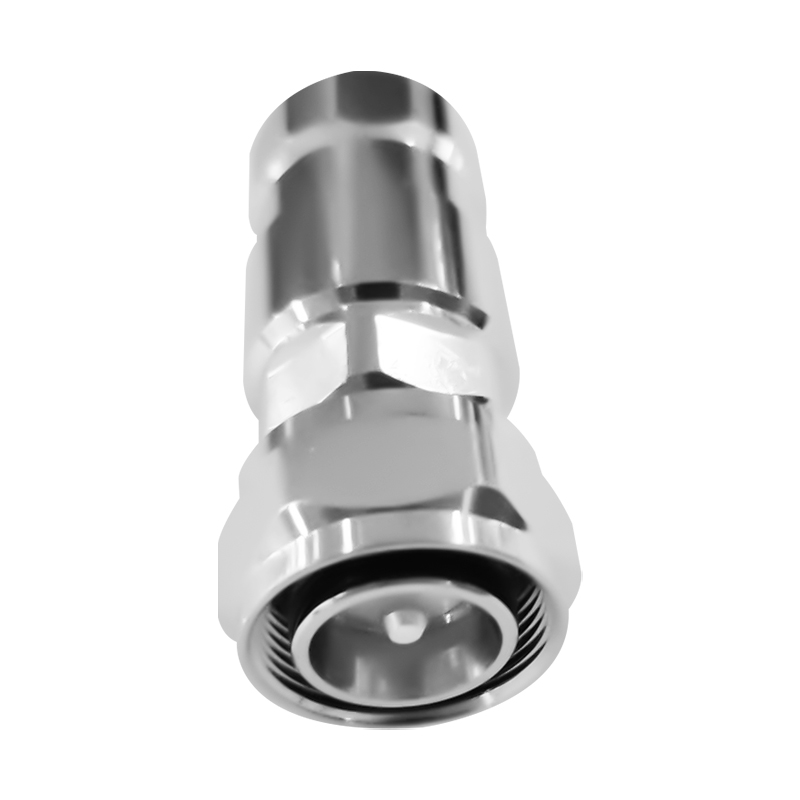

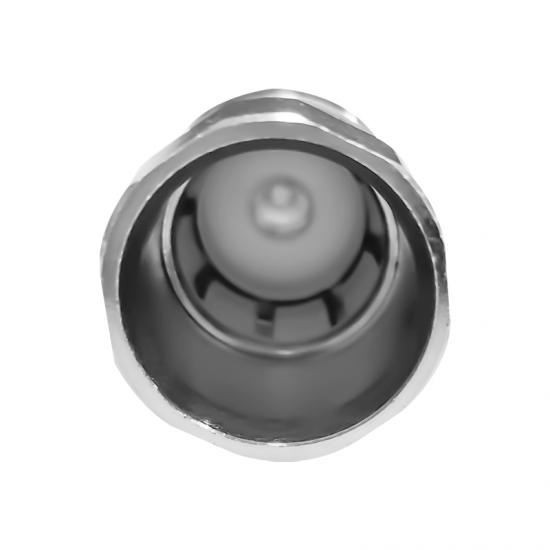

DC-6GHz 4.3/10 Straight Male Connector for 1/2" Super Flexible RF Cable

RF Connector,4.3/10 Straight Male for 1/2”Super FlexibleRFCable with Low PIM -160dBc

  • Item NO.:

    MA-4M-1/2S

  • Product Orgin:

    China

  • Brand:

    Maniron

  • Shipping Port:

    Shanghai/Ningbo/Shenzhen
Inquiry now
  • Products Details

Product Name

4.3/10 Straight for 1/2” Super Flex Cable  is designed to meet the rising performance needs of mobile network equipment


Product Features

RF Connector is in low PIM,Low VSWR and excellent impedance matching,High frequency.From DC to 6GHz.It's widely used for IBS DAS.


Technical &Mechanical Specifications

Electrical Characteristics

Characteristic Impedance

50 ohm

Insulation Resistance

≥5000MΩ

Centre contact resistance

≤1.00mΩ

Outer contact resistance

≤0..06 mΩ

Dielectric Withstanding Voltage

2500V rms(AC)

Insertion Loss

@690-960 MHz

 ≤0.0.8dB

@1700-2700 MHz

≤0.12dB

@2700-3000 MHz

 ≤0.20dB

@3000-5000 MHz

 ≤0.25dB

VSWR

@690-960 MHz

≤1.10

@1700-2700 MHz

≤1.13

@2700-3000 MHz

≤1.15

@3000-5000 MHz

≤1.20

PIM3

(@2x20W,1800MHz,staticstate)                                 ≤-160dBc

 Material and plating

Socket-Centre contact

Tin Bronze/Sliver Plated

Outer contact & Body

 Brass / Trimetal Plated

Dielectric

TPX

Gasket

Silicon Rubber

Nut

 /


Product picture



OUR SERVICES

1. Professional skills support for RF Passive Products
2. OEM/ODM services is available.
3. 24 hours you can contact our salesman and engineer.
4. We will try our best to provide support whatever you need and we can do.

NOTE:All the specifications can be changed as customer's requirment. Our company has a variety of products to choose
