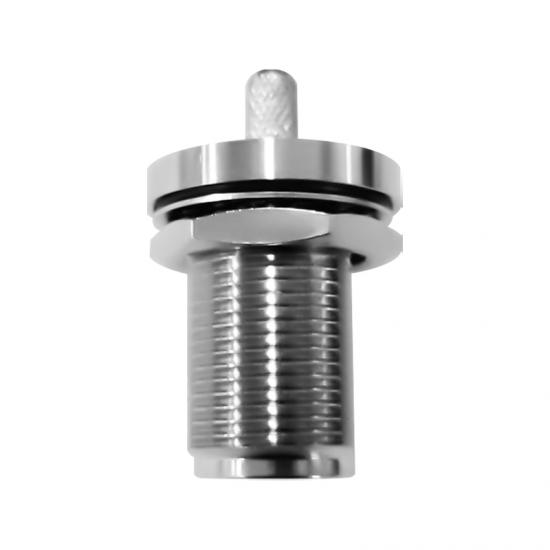

High performance N male plug straight clamp rf connectors for 1/2 cable

Multiple-Band Frequency,Low Attenuation and excellent impedance matching, supports-105/-120/-150dBc PIM Rating and Widely used in IBS projects
  • Item NO.:

    MNRC-1/2-NM
  • Product Orgin:

    China
  • Shipping Port:

    Shanghai/Ningbo/Shenzhen
  • Products Details

Product Name

N male plug straight clamp rf connectors are available with the impedance of 50ohm and 75ohm.The frequency range extends to 18GHz.depending on the connector and cable type.The screw-type coupling mechanism provides a sturdy and reliable connection.RF Connector styles are available for flexible,conformable,semi-rigid and corrugated cable types.Both crimp and clamp cable termination processes are used for this series. (DC-3GHz,N male , Low VSWR)


Product Features

N male plug straight clamp rf connectors Multiple-Band Frequency,Low Attenuation and excellent impedance matching, supports-105/-120/-150dBc PIM Rating and Widely used in IBS projects



Technical &Mechanical Specifications

Model No.

MNRC-1/2-NM

Interface

According to IEC 60169-16

Electrical

Characteristic Impedance

50 ohm

Frequency Range

DC-3GHz

Dielectric Withstanding Voltage

≥2500V RMS,50Hz,at sea level

Dielectric Resistance

≥5000M ohms

Contact Resistance

Center Contact≤1.0M ohms

Outer Contact≤0.25M ohms

VSWR

≤1.15

Mechanical

Durability

Mating cycles≥500

Material and plating

Body

Brass Ni or Tri-Alloy

Insulator

PTFE

Center Conductor

Phosphor Bronze or Ag

Coupling Nut

Brassi Ni

Temp

-40~+85


Mechanical Drawing (mm)


N male plug straight clamp rf connectors

N male plug straight clamp rf connectors

N male plug straight clamp rf connectors
