DC-4GHz Crimp RF Connector 50Ω Low VSWR Gold Contact for LMR400 Cable

This is a BNC Female Crimp Connector, specifically designed for crimping onto LMR400 coaxial cables. It is widely used in RF communication systems, test equipment, broadcast systems, and industrial applications that require reliable 50Ω signal transmission up to 4GHz.

Item NO.:
MA-BNC-K-LMR400
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Ningbo/Shenzhen

Inquiry now

Products Details

Product Name

BNC Female Crimp Connector, 50 Ohm, DC-4GHz, Low VSWR ≤1.25, Brass Gold-Plated RF Coaxial Connector

Product Features

Standard RF Performance: 50Ω impedance, DC-4GHz frequency range, VSWR ≤1.25 for low loss.

High Electrical Safety: Withstands ≥1500V RMS, working voltage ≤750V RMS, insulation resistance ≥5000MΩ.

Premium Material & Plating: Brass body with nickel plating, gold-plated center contact, PTFE insulator.

Technical &Mechanical Specifications

Parameter	Specification
Impedance	50 ohm
Frequency Range	DC-4GHz
VSWR	≤1.25
Dielectric Withstanding Voltage	≥1500V RMS, 50Hz, at sea level
Working Voltage	≤750V RMS, 50Hz, at sea level
Dielectric Resistance	≥5000 MΩ
Center Contact Resistance	≤1.5 MΩ
Outer Contact Resistance	≤1 MΩ
Parameter	Specification
Operating Temperature Range	-45~125 °C
Durability (Mating Cycles)	≥500 cycles

Component	Material	Plating
Body	Brass	Ni (Nickel)
Insulator	PTFE	-
Center Conductor	Brass	Au (Gold)
Connection Sleeve	Brass	Ni (Nickel)

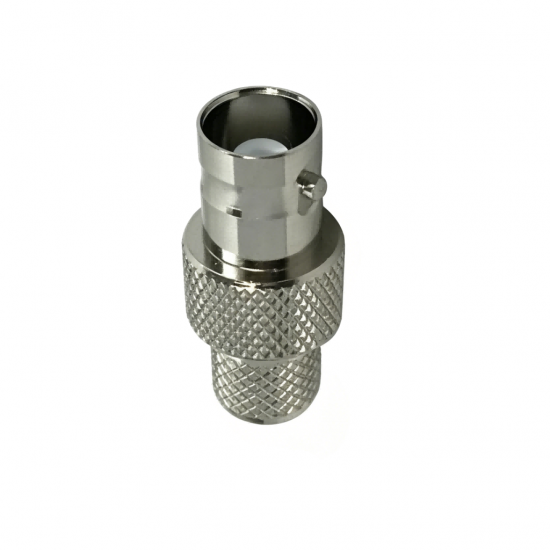

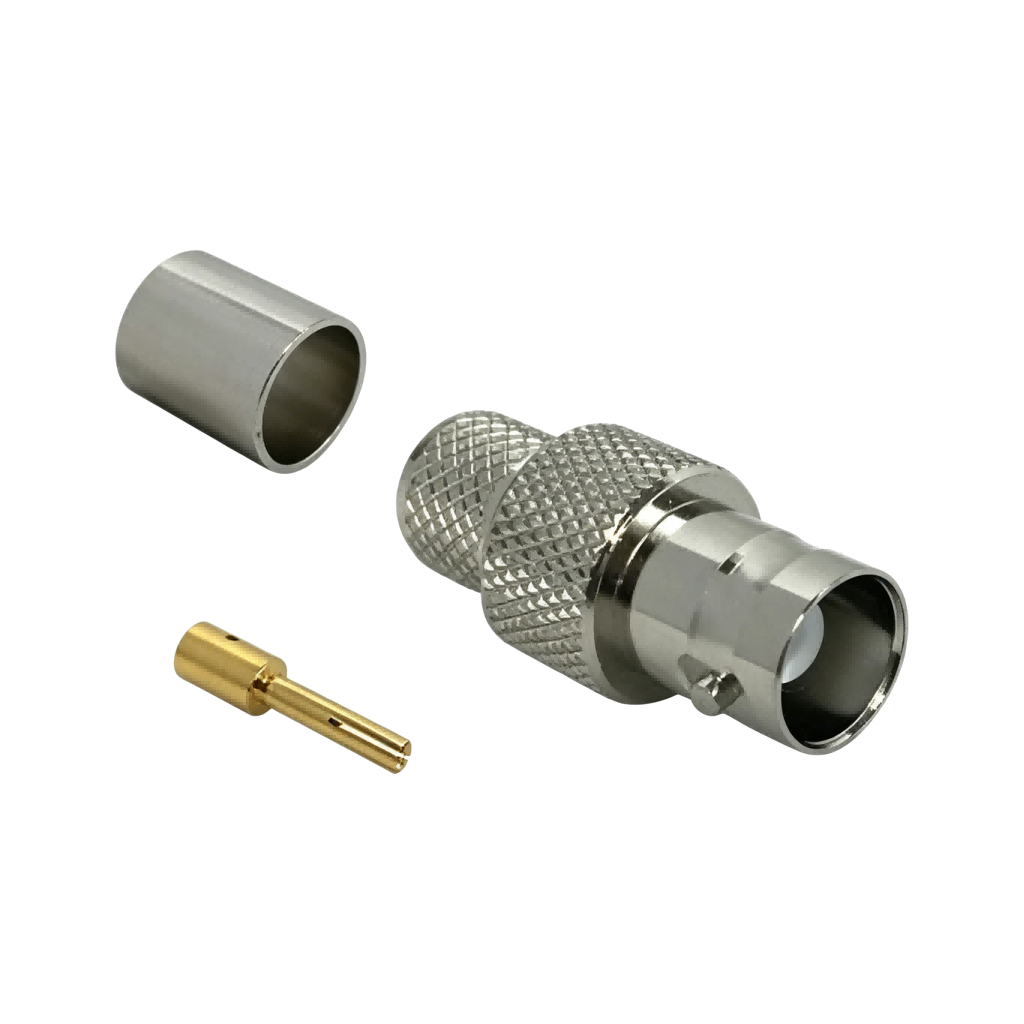

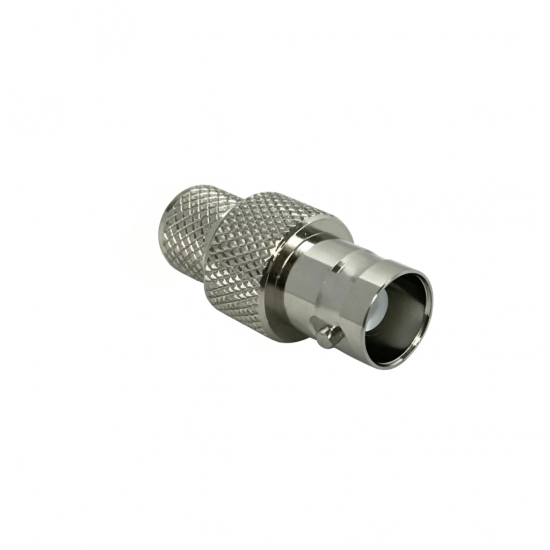

Product picture

OUR SERVICES

1. Professional skills support for RF Passive Products
2. OEM/ODM services is available.
3. 24 hours you can contact our salesman and engineer.
4. We will try our best to provide support whatever you need and we can do.

NOTE:All the specifications can be changed as customer's requirment. Our company has a variety of products to choose
