DC-4GH 50ohm BNC Male Crimp Connector Nickel-Plated Brass Low VSWR for Coaxial Cable

This is a high-performance BNC Male Crimp Connector, designed for secure crimp assembly with coaxial cables. With a VSWR ≤1.25, this connector ensures minimal signal reflection and stable high-frequency performance

Item NO.:
MA-BNC-J-RG58
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Ningbo/Shenzhen

Inquiry now

Products Details

Product Name

BNC Male Crimp Connector, 50 Ohm, DC-4GHz, Low VSWR ≤1.25

Product Features

Standard RF Performance: 50Ω impedance, DC-4GHz frequency range, VSWR ≤1.25 for low signal loss.

High Electrical Safety: Dielectric withstanding voltage ≥1500V RMS, working voltage ≤750V RMS, insulation resistance ≥5000MΩ.

Premium Material & Plating: Brass body with nickel plating, gold-plated center contact, PTFE insulator for long-term stability.

Technical &Mechanical Specifications

Product Name	BNC Male Crimp Connector
Impedance	50 ohm
Frequency Range	DC-4GHz
VSWR	≤1.25
Dielectric Withstanding Voltage	≥1500V RMS, 50Hz, at sea level
Working Voltage	≤750V RMS, 50Hz, at sea level
Dielectric Resistance	≥5000 MΩ
Center Contact Resistance	≤1.5 mΩ
Outer Contact Resistance	≤1 mΩ
Operating Temperature Range	-45~125 °C
Durability (Mating Cycles)	≥500 cycles
Body Material & Plating	Brass, Nickel Plated
Insulator Material	PTFE
Center Conductor Material & Plating	Brass, Gold Plated
Connection Sleeve Material & Plating	Brass, Nickel Plated

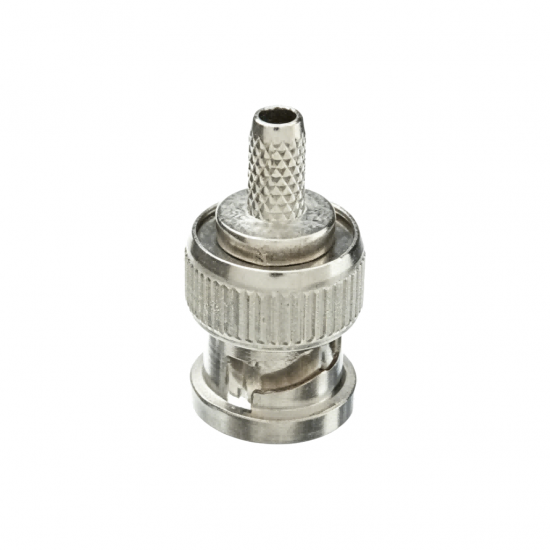

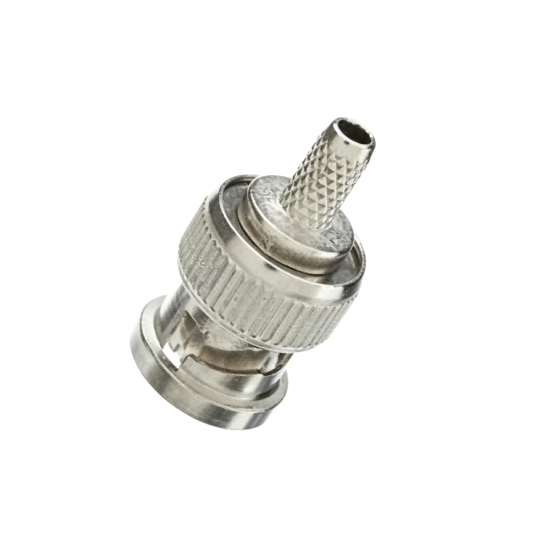

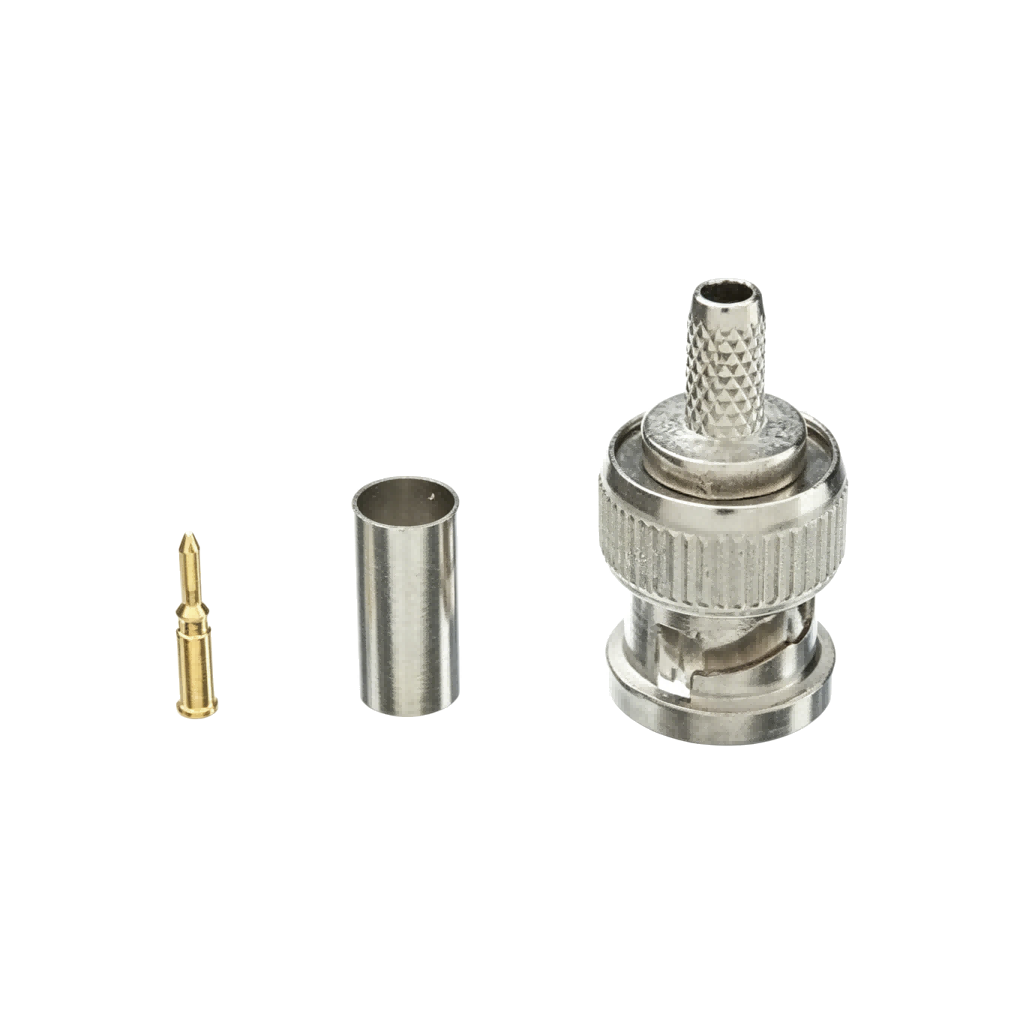

Product picture

OUR SERVICES

1. Professional skills support for RF Passive Products
2. OEM/ODM services is available.
3. 24 hours you can contact our salesman and engineer.
4. We will try our best to provide support whatever you need and we can do.

NOTE:All the specifications can be changed as customer's requirment. Our company has a variety of products to choose

Leave Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Subject : DC-4GH 50ohm BNC Male Crimp Connector Nickel-Plated Brass Low VSWR for Coaxial Cable
Im interested in your "DC-4GH 50ohm BNC Male Crimp Connector Nickel-Plated Brass Low VSWR for Coaxial Cable", please inform me more detailed product information and price. Thankyou!
