DC-6GHz N-Type Male Crimp Connector 50 Ohm RF Coaxial Connector Low VSWR for LMR400 RG213 RG214 Cable

N-Type Male Crimp Connector 50 Ohm DC-6GHz Low VSWR, Brass with Gold-Plated Center Contact

Item NO.:
MA-N-J-RG8
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Ningbo/Shenzhen

Inquiry now

Products Details

Product Name

N-Type Male Crimp Connector, 50 Ohm, DC-6GHz, Low VSWR ≤1.25,

Product Features

Standard RF Specification: 50Ω impedance, DC-6GHz wide frequency range, VSWR ≤1.25 for low signal loss

Excellent Electrical Performance: Dielectric withstanding voltage ≥2500V RMS, insulation resistance ≥5000 MΩ, contact resistance ≤1mΩ

Premium Materials: Brass body with nickel plating, gold-plated center contact, PTFE insulator for high-frequency stability

Wide Environmental Adaptability: Operating temperature from -45°C to +125°C, corrosion-resistant for outdoor use

Technical &Mechanical Specifications

Parameter	Specification
Product Name	BNC Female Crimp Connector
Electrical Impedance	50 Ohm
Frequency Range	DC-4GHz
VSWR	≤1.25
Dielectric Withstanding Voltage	≥1500V RMS, 50Hz, at sea level
Working Voltage	≤750V RMS, 50Hz, at sea level
Dielectric Resistance	≥5000 MΩ
Contact Resistance (Center Contact)	≤1.5 mΩ
Contact Resistance (Outer Contact)	≤1 mΩ
Operating Temperature Range	-45°C ~ +125°C
Durability (Mating Cycles)	≥500 cycles
Body Material & Plating	Brass with Nickel Plating
Insulator Material	PTFE (Polytetrafluoroethylene)
Center Conductor Material	Brass with Gold Plating
Connection Type	Crimp Type

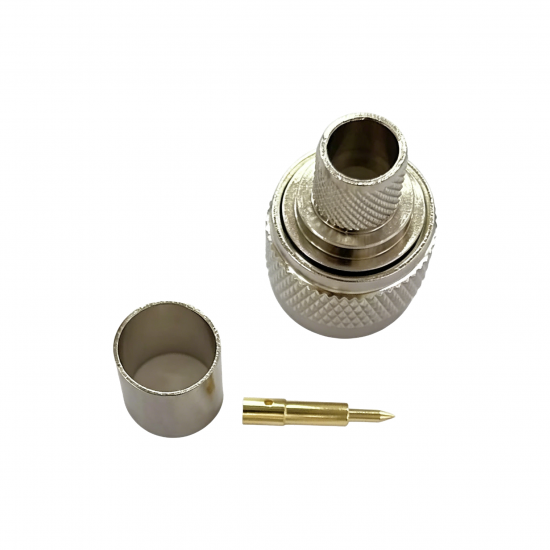

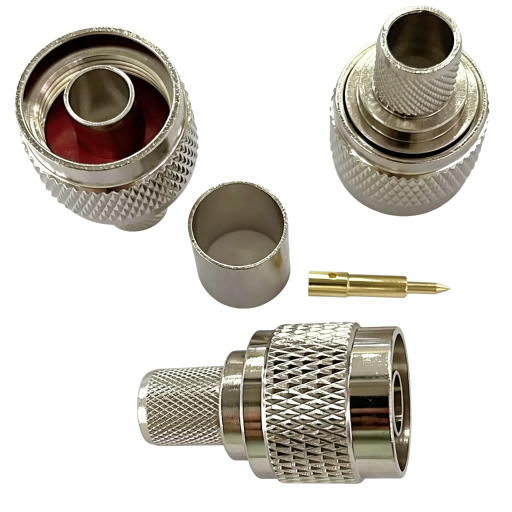

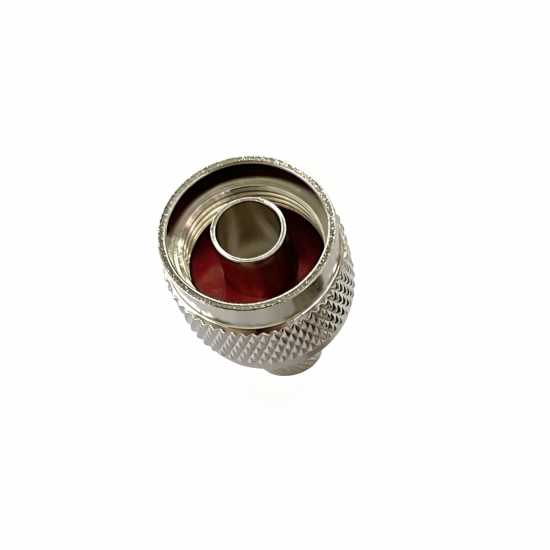

Product picture

OUR SERVICES

1. Professional skills support for RF Passive Products
2. OEM/ODM services is available.
3. 24 hours you can contact our salesman and engineer.
4. We will try our best to provide support whatever you need and we can do.

NOTE:All the specifications can be changed as customer's requirment. Our company has a variety of products to choose
