N-Type Female Crimp Connector 50 Ohm DC-6GHz Low VSWR Brass Gold Plated RF Coaxial Connector

N type female crimp connector, standard 50 ohm impedance, frequency up to DC-6GHz, low VSWR less than 1.25. It owns good voltage resistance and stable electrical performance.

Item NO.:
MA-6G-N-J-RG8
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Ningbo/Shenzhen

Inquiry now

Products Details

Product Name

N-Type Female Crimp Connector, 50 Ohm, DC-6GHz, Low VSWR ≤1.25

Product Features

Standard 50 ohm impedance, wide frequency DC-6GHz, low signal loss

High withstand voltage ≥2500V RMS, safe and stable to use

Low contact resistance ≤1MΩ for both inner and outer contact

Temperature resistant from -45℃ to 125℃, long service life over 500 times insertion

Technical &Mechanical Specifications

Item	Specification
Product Name	N-Type Female Crimp Connector
Impedance	50 ohm
Frequency Range	DC-6GHz
VSWR	≤1.25
Dielectric Withstanding Voltage	≥2500V RMS,50hz
Dielectric Resistance	≥5000 MΩ
Center Contact Resistance	≤1MΩ
Outer Contact Resistance	≤1MΩ
Working Temperature	-45~125℃
Durability	≥500 cycles
Body Material	Brass, Nickel Plated
Insulator	PTFE
Center Conductor	Brass, Gold Plated
Connection Sleeve	Brass, Nickel Plated

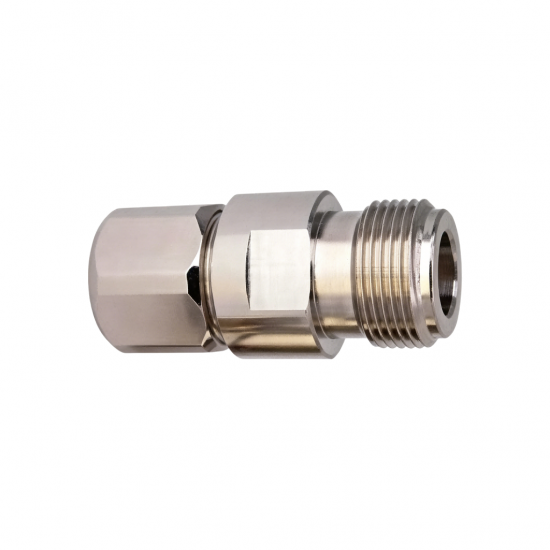

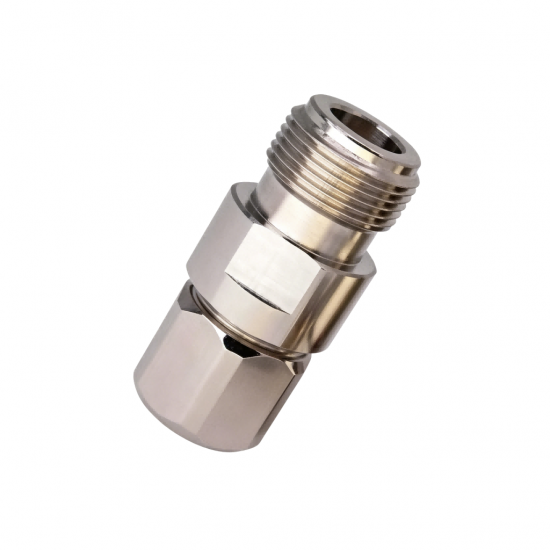

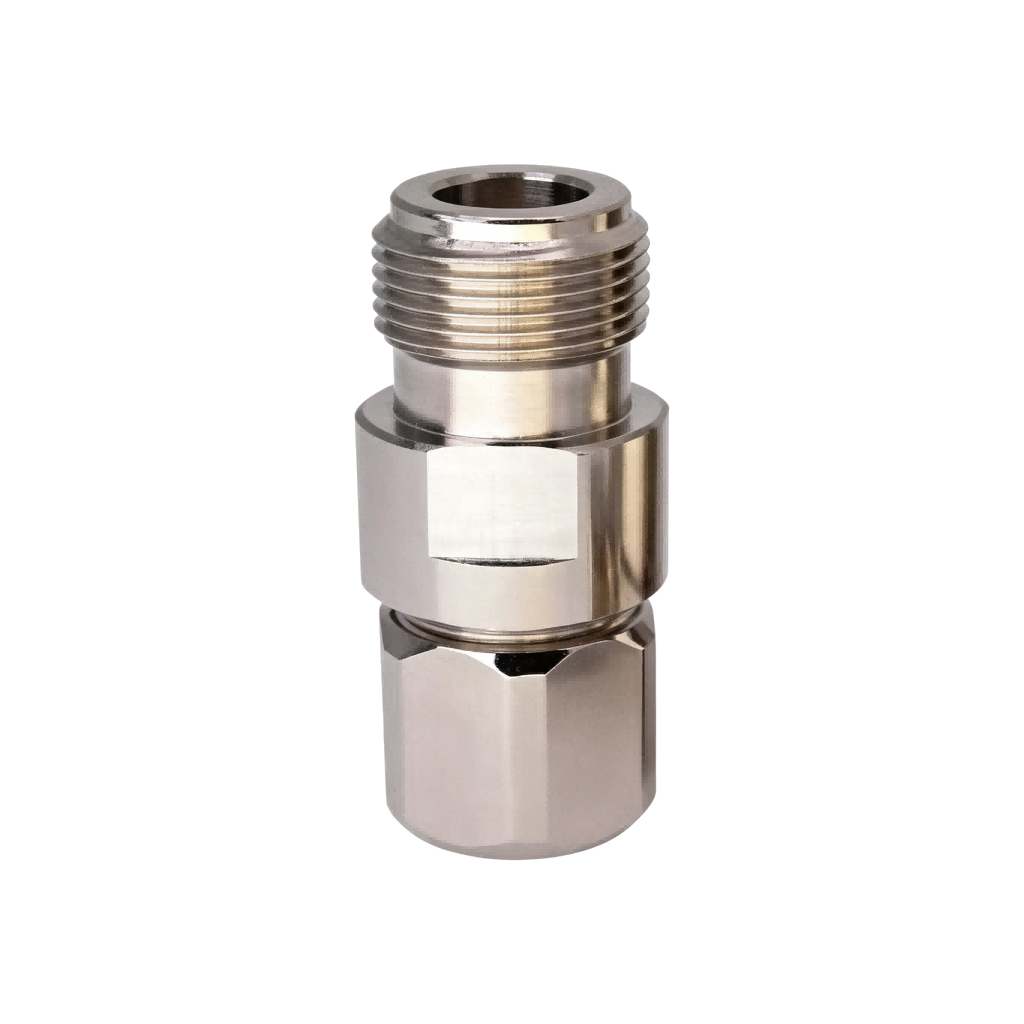

Product picture

OUR SERVICES

1. Professional skills support for RF Passive Products
2. OEM/ODM services is available.
3. 24 hours you can contact our salesman and engineer.
4. We will try our best to provide support whatever you need and we can do.

NOTE:All the specifications can be changed as customer's requirment. Our company has a variety of products to choose

Leave Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Subject : N-Type Female Crimp Connector 50 Ohm DC-6GHz Low VSWR Brass Gold Plated RF Coaxial Connector
Im interested in your "N-Type Female Crimp Connector 50 Ohm DC-6GHz Low VSWR Brass Gold Plated RF Coaxial Connector", please inform me more detailed product information and price. Thankyou!

Tags :

Categories

New Products

Related Products

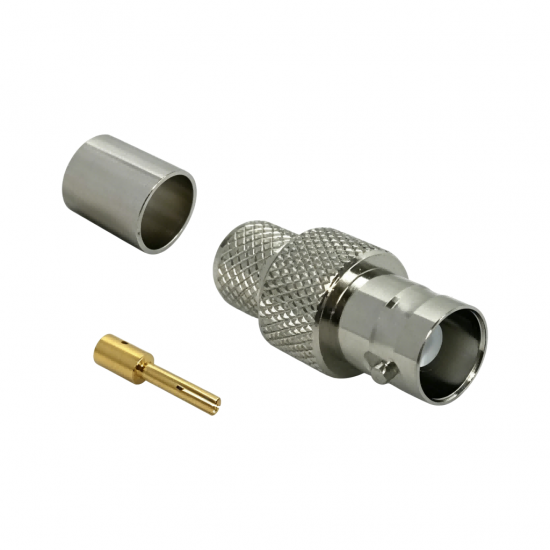

DC-4GHz Crimp RF Connector 50Ω Low VSWR Gold Contact for LMR400 Cable

This is a BNC Female Crimp Connector, specifically designed for crimping onto LMR400 coaxial cables. It is widely used in RF communication systems, test equipment, broadcast systems, and industrial applications that require reliable 50Ω signal transmission up to 4GHz.

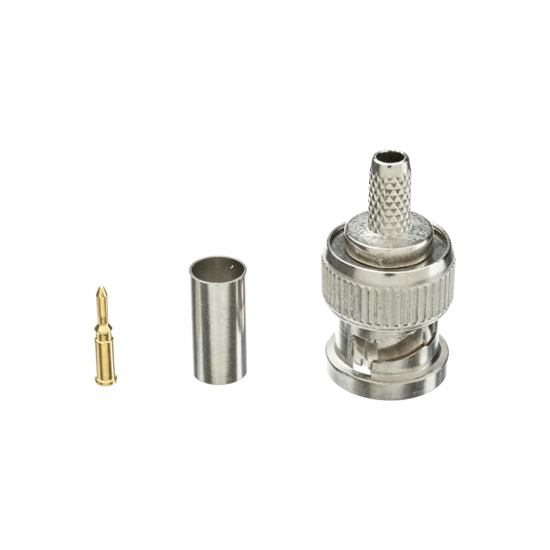

DC-4GH 50ohm BNC Male Crimp Connector Nickel-Plated Brass Low VSWR for Coaxial Cable

This is a high-performance BNC Male Crimp Connector, designed for secure crimp assembly with coaxial cables. With a VSWR ≤1.25, this connector ensures minimal signal reflection and stable high-frequency performance

N Straight Male RF Connector for 7/8' Flexible Cable

RF N Straight Male Connector for 7/8' Flexible Cable

RF N Straight Male connector for 7/8' Flexible Cable is such characteristics as good vibration-resistance, high reliability and good mechanical and electrical performance.

4.3-10 MINI DIN Plug RF Coaxial Cable Connector RF Adapter

4.3-10 MINI DIN Plug RF Coaxial Cable Connector RF Adapter is high-quality with low attenuation and inter-modulation. Widely used in IBS projects.

N male RF Coaxial connector for 1/2 cable

RF coaxial connector, N male connector for 1/2 cable

RF coaxial connector, N male connector for 1/2 cable is will gain smaller VSWR, and the frequency can by up to 11GHz.Widely used in IBS projects.

RF Coaxial Connector 4.3-10-Male Connector

4.3-10 Male connector is used between equipment and equipment,equipment and compoments,parts and components to achieve the mechanical performance of the various parts of the transmission of electrical signals

4.3-10 Male Crimp for LMR240 Cable RF Connector

4.3-10 Male Crimp for LMR240 Cable RF Connector is Low PIM and with screw coupling mechanism, characteristic impedance is 50ohm. The characteristic of connector is in wide working frequency, reliable connection,great vibration performance.

Customized 7/16 DIN FEMALE RF CONNECTOR for 1/2" FEEDER CABLE

7/16 (DIN, L29) connector is specially designed for outdoor base stations in mobile communication (GSM, CDMA, 3G, 4G) systems,low loss,featuring high power, high operating voltage and perfect waterproof performance and applicable to various environments. It is easy to install and provides reliable connection.

DIN Male type RF Coaxial connector for 7/8'' Coaxial feeder Cable

High performance RF DIN Male Connector for 7/8 feeder Cable

DIN Male type RF Coaxial Connector are very robust, extremely stable and mostly with waterproof specifications, making them ideal for applications where vibration resistance and environmental protection is important.

RF Adapter with DIN-Female to 4.3-10-Male

RF Adapter DIN-Female to 4.3-10-Male

RF Adapter DIN-Female to 4.3-10-Male is Screw on coupling ensure high durability and Excellent performance. Widely used in IBS projects.

7/16 male RF DIN coaxial connector for 1/2" superflexible cable

7/16 male RF DIN plug coaxial connector is Low VSWR and excellent impedance matching,supports-105/-120/-150dBc PIM Rating and Widely used in IBS projects.

Maniron supply N male straight RF coaxial connector for 1/2 coaxial cable

N male straight RF coaxial connector is high reliability, great vibration performance, excellent mechanical and electrical performance

RF Coaxial Connector 1/2" Male Right Angle

RF Coaxial Connector 1/2" Male Right Angle is Low VSWR and excellent impedance matching,supports-105/-120/-150dBc PIM Rating and Widely used in IBS projects.

7/16 DIN-Male RF coaxial Connector for 7/8" cable

DIN-Male RF Connector is Low VSWR and excellent impedance matching,supports-105/-120/-150dBc PIM Rating and Widely used in IBS projects.

High performance N male plug straight clamp rf connectors for 1/2 cable

Multiple-Band Frequency,Low Attenuation and excellent impedance matching, supports-105/-120/-150dBc PIM Rating and Widely used in IBS projects

RF DIN Male 7/16 Right Angle Connector for 1/2 Superflex Cable

DIN Male 7/16 Right Angle Plug RF Connector provide superior performance for both return loss and intermodulation distortion.

High Quality N male straight connectors for 1/2 cable

High Quality N male straight connectors for 1/2 cable RF coaxial cable connectors are typically used with coaxial cables and are designed to maintain the shielding that the coaxial design offers. RF connectors of various types are generally used for wireless functions.One side is usually connected with 1/2 cable,the other side is combind with RF passive components.

RF Adapter 4310 Female to 4310 Female Straight Type

RF Adapter 4310 Female to 4310 Female Straight Type has Low PIM and good performance, characteristic impedance is 50ohm. The characteristic of adapter is in wide working frequency, reliable connection,great vibration performance.

RF Adapter DIN Female to DIN Female Straight Type

RF Adapter DIN Female to DIN Female Straight Type has Low PIM and good performance, characteristic impedance is 50ohm. The characteristic of adapter is in wide working frequency, reliable connection,great vibration performance.

N Male Solder Type Connector for RG402/141 Cable

N Male Solder Type Connector has Low PIM and need to solder with RG402/141 cable, characteristic impedance is 50ohm. The characteristic of connector is in wide working frequency, reliable connection,great vibration performance.

RF Adapter DIN Female to 4310 male Straight Type

RF Adapter DIN Female to4310 male Straight Type has Low PIM and good performance, characteristic impedance is 50ohm. The characteristic of adapter is in wide working frequency, reliable connection,great vibration performance.

Hot Sale DC-3GHz Low PIM -160dBc N Female to Female Adaptor

DC-3GHz RF Connector (N Female to Female straight adaptor) with Low PIM -160dBc.

RF Adapter N male to N male Straight Type

RF Adapter N male to N male Straight Type has Low PIM and good performance, characteristic impedance is 50ohm. The characteristic of adapter is in wide working frequency, reliable connection,great vibration performance.

N Male Crimp Connector For LMR240 Cable

N MALE CRIMP FOR LMR240 CABLE has low loss and good performance, characteristic impedance is 50ohm. The characteristic of adapter is in wide working frequency, reliable connection,great vibration performance.

Maniron DC-6GHz 2.2-5 MALE to 4.3-10-Female Adaptor

This connector covers frequency DC to 6GHz(2.2-5 MALE to 4.3-10-Female)with Low PIM -160dBc and Low VSWR

DC-3GHz N Male to N Femal Right Angle Adaptor

This connector covers frequency DC to 3GHz(N MALE to N-Female R/A Adaptor)with Low PIM and Low VSWR

RF Adapter DIN male to DIN male Straight Type

RF Adapter DIN male to DIN male Straight Type has Low PIM -160dBc and good performance, characteristic impedance is 50ohm. The characteristic of adapter is in wide working frequency, reliable connection,great vibration performance.

RF Adapter BNC Male to F female Straight Type

RF Adapter BNC Male to F Female Straight adapter has good performance, characteristic impedance is 50ohm. The characteristic of adapter is in wide working frequency, reliable connection,great vibration performance. It's a fresh new type of adapter.We have sold it to European market.

RF Adapter 4.3/10 Female To NEX10 Male Straight Type

RF Adapter 4.3/10 Female To NEX10 Male Straight Type has Low PIM -155dBc and good performance, characteristic impedance is 50ohm. The characteristic of adapter is in wide working frequency, reliable connection,great vibration performance.

RF Adapter 7/16 DINF to 7/16 DINM Straight Type

RF Adapter DIN Female to DIN male Straight Type has Low PIM value and good VSWR, characteristic impedance is 50ohm. The characteristic of adapter is in wide working frequency, reliable connection,great vibration performance.As a professional manufacturer of adapter,Maniron produces super high quality RF Connector,RF Adapter,Custom RF cable assembly/Pigtail cable/Patch lead.

RF Adapter 7/16 DINF to 4310F Straight Type

RF Adapter DIN Female to 4310 Female Straight Type has Low PIM value and good performance, characteristic impedance is 50ohm. The characteristic of adapter is in wide working frequency, reliable connection,great vibration performance.The raw materials are with good quality.We produce standard, right angle, bulkhead, T and any other variety of RF adapter.

RF Adapter SMAF to QMAM Straight Type

RF Adapter SMAF to QMAM Straight adapter has good performance, characteristic impedance is 50ohm. The characteristic of adapter is in wide working frequency, reliable connection,great vibration performance. It's a fresh new type of adapter.We have sold it to European market.

RF Adapter 7/16 DIN M to 4310F Straight Type

RF Adapter DIN male to 4310 Female Straight Type has Low PIM(-150/-155/-160/-161dBc)and good performance, characteristic impedance is 50ohm. The characteristic of adapter is in wide working frequency, reliable connection,great vibration performance.Maniron manufacture straight standard, right angle, bulkhead, T and any other variety of RF adapter

RF Adapter 4310-M to N-M Straight Type

RF Adapter 4310 male to N male Straight Type has Low PIM vale (-155/-160/-161dBc)and good performance, characteristic impedance is 50ohm. We also produce right angle type.The characteristic of adapter is in wide working frequency, reliable connection,great vibration performance.We also produce right angle type.

7/16 male to female rf adapter right angle type

RF Adapter DIN male to DIN female right angled has Low PIM(-150/-155/-160/-161dBc)and good performance, characteristic impedance is 50ohm. The characteristic of adapter is in wide working frequency, reliable connection,great vibration performance.Maniron manufacture straight standard, right angle, bulkhead, T and any other variety of RF adapter

rf adaptor 90 degree 7/16 male to female

RF Adaptor DIN male to DIN female right angled has Low PIM(-150/-155/-160/-161dBc)and good performance, characteristic impedance is 50ohm. The characteristic of adapter is in wide working frequency, reliable connection,great vibration performance.Maniron manufacture straight standard, right angle, bulkhead, T and any other variety of RF adapter

N Male Leaky Feeder for 1-1/4" CABLE

RF Connector,N Male for Leaky Feeder 1-1/4" Cable,it has low PIM -150dBc.

Low PIM -161dBc 4.3-10 Female Connector for 1/2” Corrugated Cable

RF Connector,4.3-10 Female for 1/2” Corrugated Cable with Low PIM -161dBc

DC-6GHz 4.3-10 Female Connector for 1/2” Corrugated Cable with Low PIM

RF Connector,4.3-10 male for 1/2” Corrugated Cable with Low PIM -161dBc

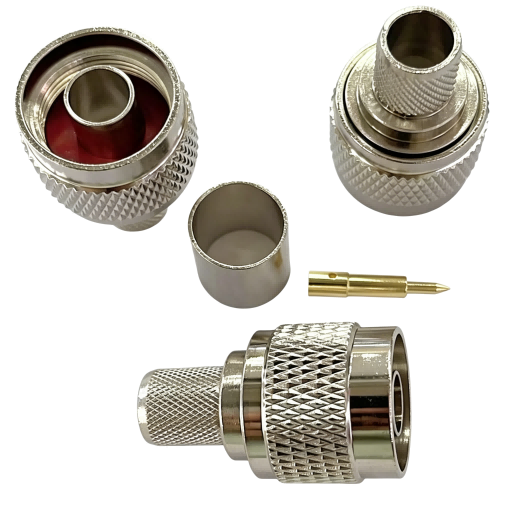

DC-6GHz N-Type Male Crimp Connector 50 Ohm RF Coaxial Connector Low VSWR for LMR400 RG213 RG214 Cable
