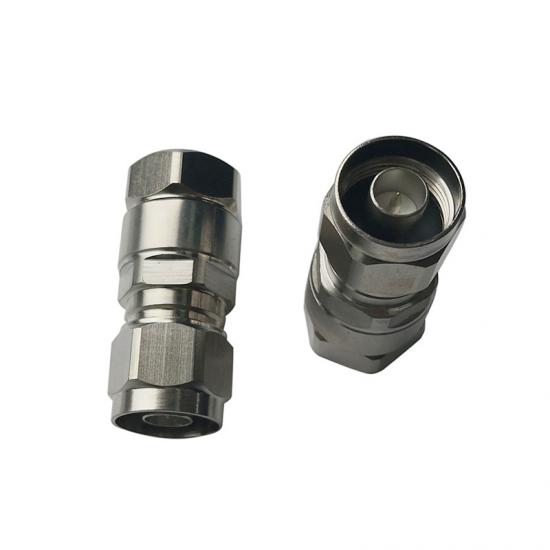

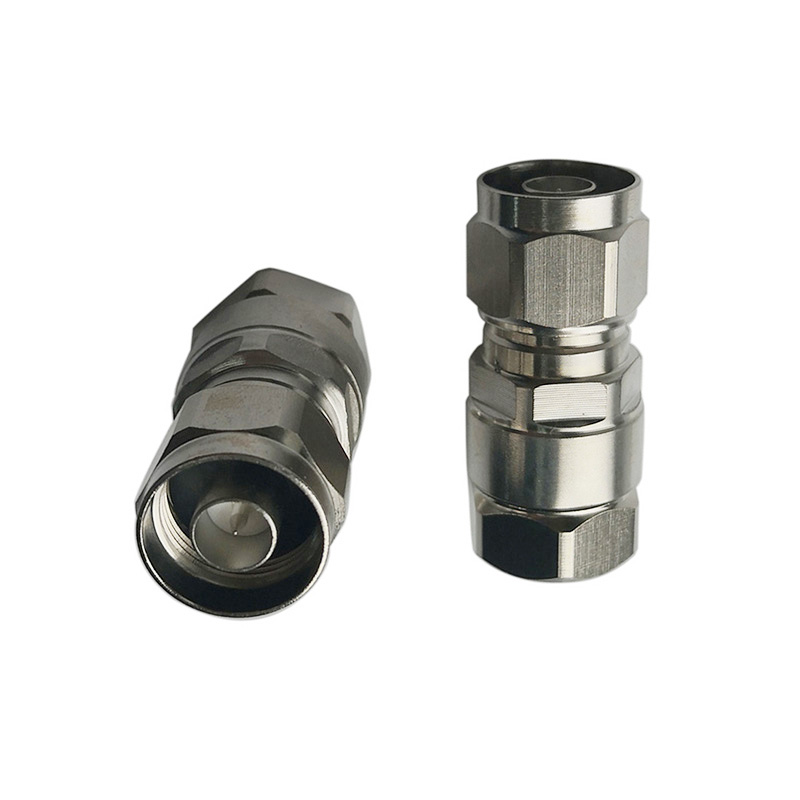

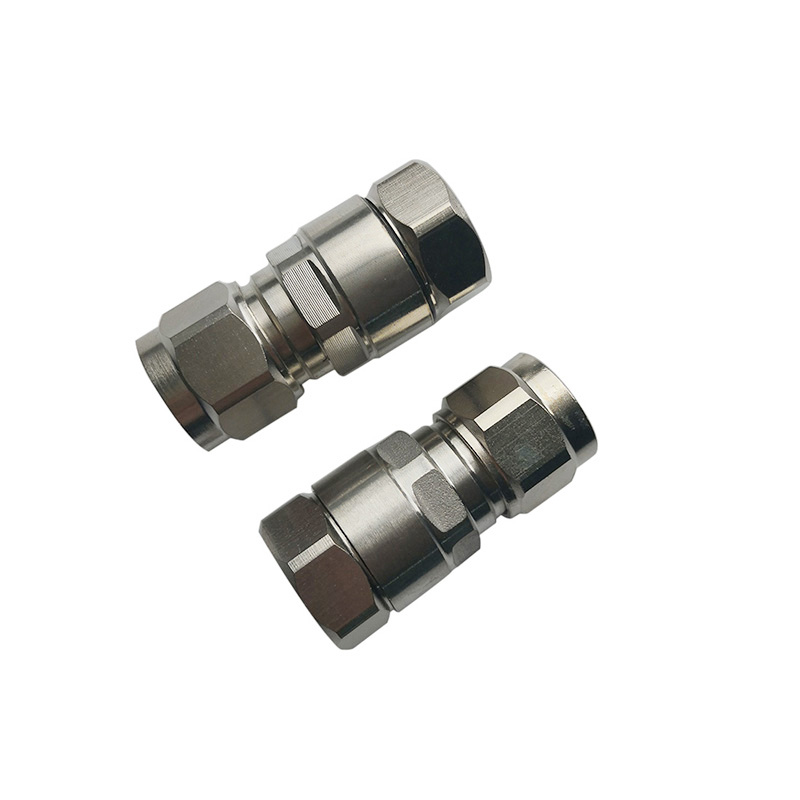

RF coaxial connector, N male connector for 1/2 cable

RF coaxial connector, N male connector for 1/2 cable is will gain smaller VSWR, and the frequency can by up to 11GHz.Widely used in IBS projects.
  • Item NO.:

    MNC-1/2-NM
  • Product Orgin:

    China
  • Shipping Port:

    Shanghai/Ningbo/Shenzhen
  • Products Details

Product Name

N connectors are available with the impedance of 50Ω and 75Ω.The frequency range extends to 18GHz,depending on the connector and cable type.The screw-type coupling mechanism provides a sturdy and reliable connection.RF Coaxial Connector styles are available for flexible,conformable.semi-rigid and corrugated cable types.Both crimp and clamp cable termination processes are used for this series.


Product Features

RF coaxial connector, N male connector for 1/2 cableis Low VSWR and excellent impedance matching,supports-105/-120/-150dBc PIM Rating.




Technical &Mechanical Specifications

Model No.

MNC-1/2-NM

Interface

According to IEC 61169-16

Electrical

Characteristic Impedance

50 ohm

Frequency Range

DC-3GHz

Dielectric Withstanding Voltage

≥1500V RMS,50Hz,at sea level

Dielectric Resistance

≥10000M ohms

Contact Resistance

Center Contact≤1.0M ohms

Outer Contact≤0.3M ohms

VSWR

≤1.15

PIM

≤-150dBc@2*43dBm

Mechanical

Durability

Mating cycles≥500

Material and plating

Body

Brass Ni or Tri-Alloy

Insulator

PTFE

Center Conductor

Phosphor Bronze or Ag

Coupling Nut

Brassi Ni

Temp

-40~+85

Waterproof

IP65



Mechanical Drawing (mm)



 N male RF Coaxial connector for 1/2 cable
