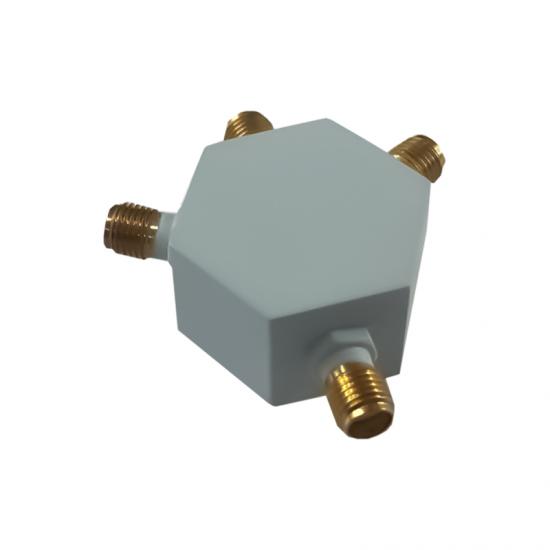

Factory Wholesale DC-6GHz 5W 3 Way Power Splitter for BTS

Wilkinson/Microstrip 3 Way Power Splitter covers frequency from DC-6GHz,which is widely used for 5G Market.It has low insertion loss, VSWR and indoor Application.

Item NO.:
MPS-DC/6-3S
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Shenzhen/Guangzhou
Color:
Customized

Inquiry now

Products Details

Hot sale DC-6GHz 3 way Power Divider Splitter for DAS IBS BTS

Product Features

◆ Wide Frequency Band DC-6GHz

◆ Low Insertion Loss

◆ Low VSWR

Technical &Mechanical Specifications

Model No.	MPS-DC/6-3S
Freq(GHz)	DC-6
Input Port Number	1
Output Port Number	3
color	customize
Insertion Loss(dB)	≤9.5dB±1.8
VSWR	≤1.5
Total Power(W)	5
Impedance	50 ohm
Connector	SMA-Female
MOQ	10PCS
Temp(deg)	-40~+70
Application	Indoor
Relative Humidity	5%-95%
Weight(kg)	0.8
Dimensions(mm)	see drawing

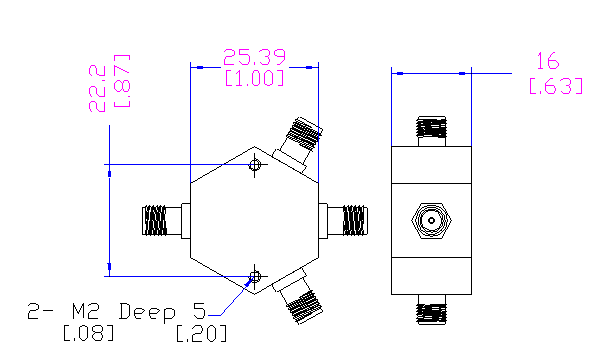

Outline Drawing:

OUR SERVICES
1. Professional skills support for RF Passive Components DC-6GHz Wilkinson/Microstrip Power Splitter/Divider with SMA-F
2. OEM services is available.
3. 24 hours you can contact our salesman and engineer.
4. We will try our best to provide support whatever you need and we can do.

NOTE:All the specifications can be changed as customer's requirment. Our company has a variety of products to choose!
