68-72MHz 2 in 2 out Hybrid Coupler N female connector

2x2 Hybrid Combiner covers frequency from 68-72MHz

Item NO.:
HC-6872-22-NF
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Shenzhen/Guangzhou/Ningbo

Inquiry now

Products Details

Product Name

2*2 Hybrid Combiner 2x2 (68-72MHz)

Product Feature

◆ Low VSWR & Insertion Loss

◆ High Isolation, Indoor & Outdoor, IP65

Technical &Mechanical Specifications:

Model No.	HC-6872-22-NF
Freq(MHz)	68-72
Insertion Loss(dB)	3.0±0.5
Port Isolation(dB)	≥24
VSWR	≤1.3
Impedance	50 ohm
Color	Black
Temp(deg)	-40~+65
Average Power(W)	50W
Connector	N-Female
Relative Humidity	5%-95%

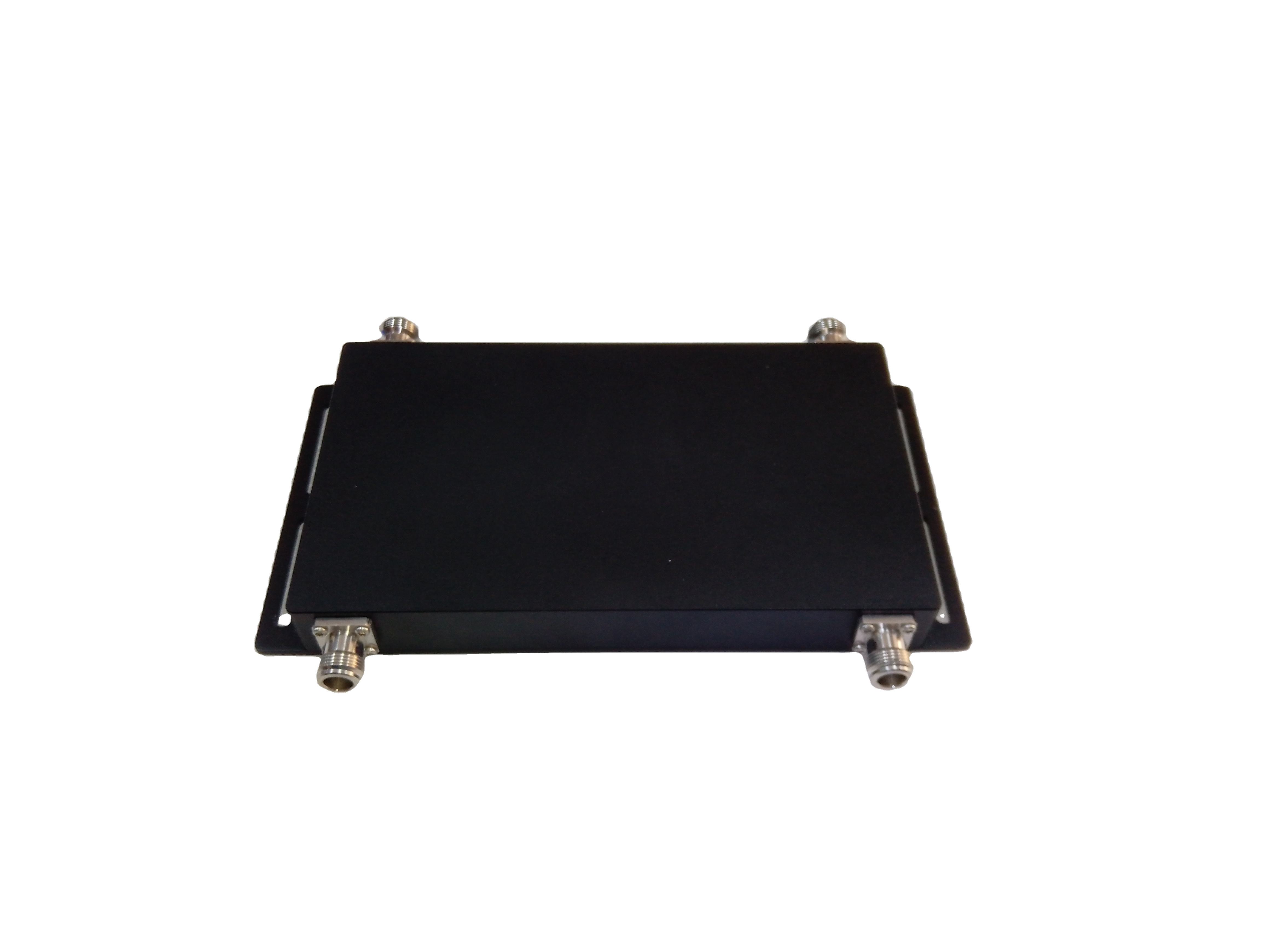

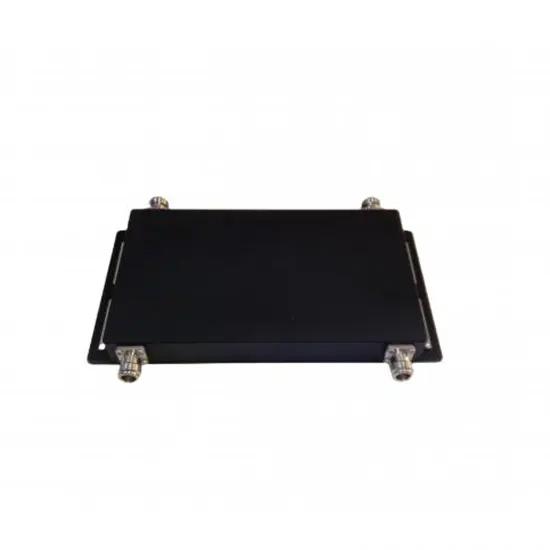

Product Pictures:
