Product Name
High Power UHF rf duplexer combiner
Product Features
◆Narrower RX-TX separation
◆High reliability
◆Simple installation
Technical &Mechanical Specifications:
|
Product Number |
MN-T-SGQ-450M-350W-4C |
|
|
Electrical Specifications |
||
|
Channel |
Low Pass (RX) |
High Pass (TX) |
|
Frequency Range |
Frequency can be made within 400~520MHz range |
|
|
RX-TX Separation |
5MHz (for example RX=433MHz, TX=438MHz ) |
|
|
Narrower RX-TX separation 2MHz,3MHz, 4MHz available. The RX-TX separation more closer, the insertion loss will be more higher, the isolation will be more lower. If your RX-TX frequency is too close to each other, we suggest you use 6 cavity or 8 cavity duplexer. |
||
|
Insertion Loss |
≤1dB@5MHz Separation |
≤1dB@5MHz Separation |
|
VSWR |
≤ 1.2 |
≤ 1.2 |
|
Return Loss |
≥20dB |
≥20dB |
|
RX-TX Isolation |
≥80dB@5MHz Separation |
|
|
Max. Input Power |
350W (CW) |
|
|
Mechanical Specifications |
||
|
Operating Temperature |
-20℃~+65℃ |
|
|
Connector Type |
N-Female ，50Ω |
|
|
Dimensions |
410mm*360mm*110mm |
|
|
Shipping Size |
500mm*440mm*170mm |
|
|
Net Weight |
6.5KG |
|
|
Shipping Weight |
8KG |
|
|
Appearance |
Silver Color |
|

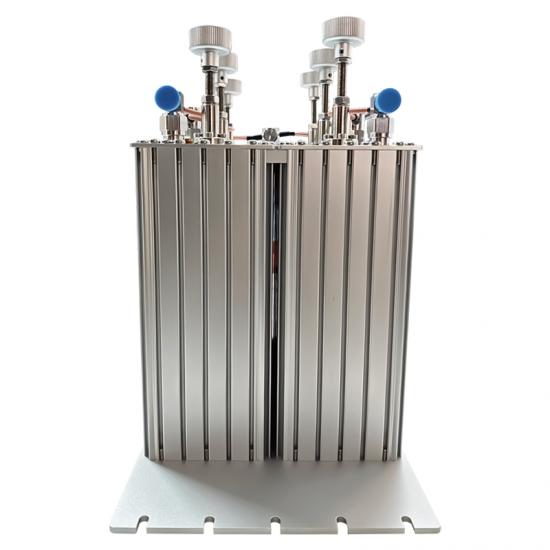

Product Pictures:
