 / Customized 8-Channel Combiner 1710-2690MHz RF Combiner

Low PIM 8-Port Combiner for DAS
Low PIM 8-Port Combiner for DAS Low PIM 8-Port Combiner for DAS Low PIM 8-Port Combiner for DAS

Customized 8-Channel Combiner 1710-2690MHz RF Combiner

Wide Frequency Band 1922-1980/2110-2170/1710-1785/1805-1873/1886-1915/2010-2025/2300-2370/2496-2690MHz 8 Chanel Combiner widely used for In-building Solutions

  • Item NO.:

    MOCTA-1727-SMAF

  • Product Orgin:

    China

  • Brand:

    Maniron

  • Shipping Port:

    Shanghai/Shenzhen/Guangzhou

  • Color:

    Grey

  • MOQ:

    50
Inquiry now
  • Products Details

Product Name

Wide Band 8 Ports Combiner

with customized connector for DAS IBS


Product Features

◆Compact, low weight

◆Low PIM

◆High reliability

◆Simple installation


Technical &Mechanical Specifications

 Model
MOCTA-1727-SMAF
 Freq-MHz

Port1：1922-1980MHZ

Port 2: 2110-2170MHz

Port 3: 1710-1785MHz

Port 4: 1805-1873MHz

Port 5: 1886-1915MHz

Port 6: 2010-2025MHz

Port 7: 2320-2370MHz

Port 8: 2496-2690MHz

 Insertion Loss-dB

≤2.0 dB

≤0.6 dB

 Isolation-dB

≥80dB

VSWR
≤1.5
 Average Power-W
50w
 Impedance-Ω
50
 Connector
SMA-female
 Temp(deg)
-25~+70
 Applications
Indoor/Outdoor（IP65）

Images:

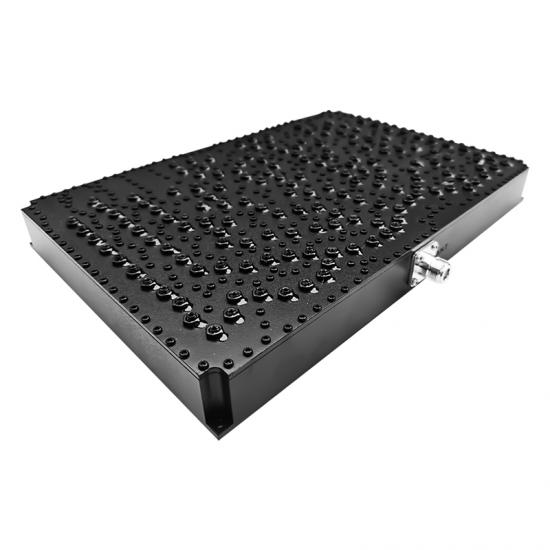

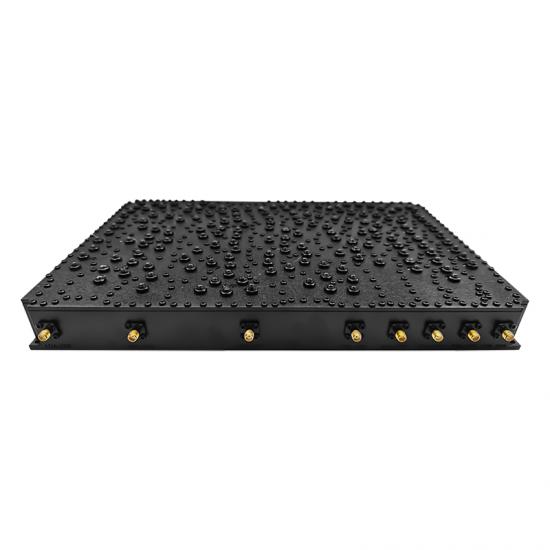

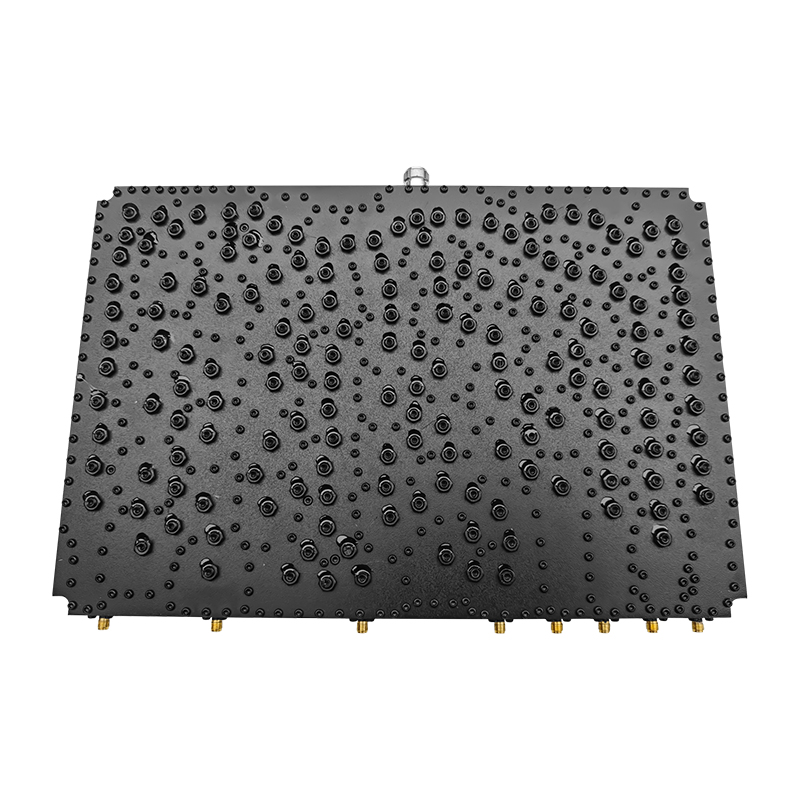

8-chanel combiner
