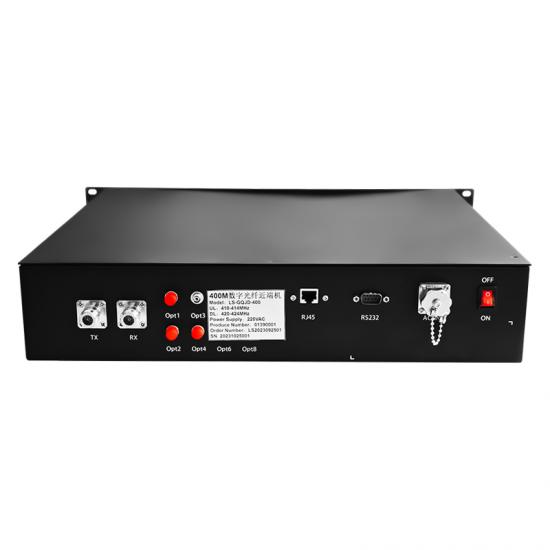

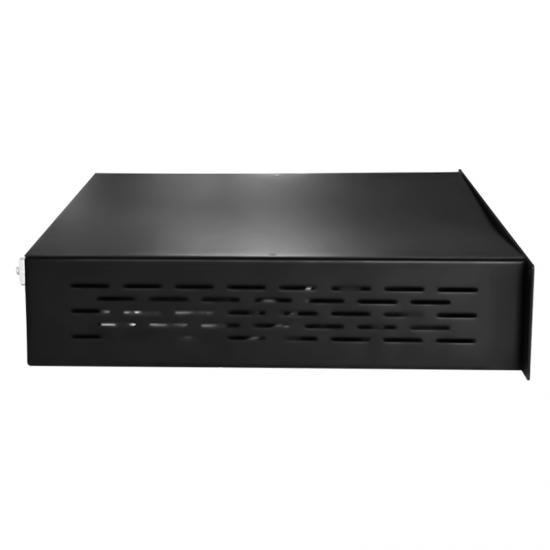

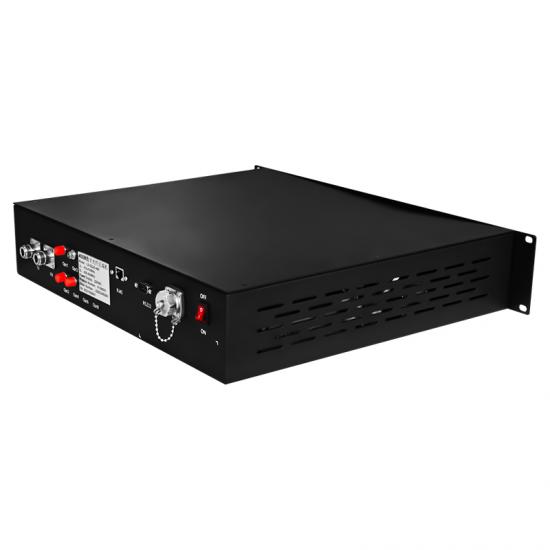

Maniron 410-424MHz UHF Digital Fiber Base Station

The 410-424MHz UHF Fiber Remote Unit (Near-End Unit) is a professional RF transmission module designed for fiber-based Distributed Antenna Systems (DAS) and long-distance wireless signal extension.
  • Item NO.:

    MNR-JDJGQ400-4
  • Product Orgin:

    China
  • Brand:

    Maniron
  • Shipping Port:

    Shanghai/Shenzhen/Guangzhou
  • Products Details

Product Name

Maniron LTE 400MHz band Network Mobile Phone Repeater

Application

Boosting the mobile signal strength, increase mobile signal in building coverage.

Technical & Mechanical Specifications

Items

Downlink

Uplink

Frequency Range

420~424MHz

410~414MHz

Maximum Output Power

0dBm(±2dB)

0dBm(±2dB)

Gain

0±2dB

Gain Adjustment Range

≥30dB

Gain Adjustment Step Size

1dB

Gain Adjustment Error

0-20dB

±1dB

20-30dB

±1.5dB

Automatic Level Control(ALC)

≤±1.0

Maximum Input Level

+10dBm

-10dBm

Pass-band Ripple (in Band)

≤3dB(Peak)

VSWR

≤1.5

Transmission Delay

≤5μs

Spurious Emission

Outside the operating band(2.5 MHz beyond the band edge)

9kHz-1GHz In-band≤-36dBm
1GHz-12.75GHz In-band≤-30dBm

Intermodulation

In-band Intermodulation

≤-45dBc

Out-of-Band Intermodulation (2.5 MHz beyond the band edge)

9kHz~1GHz/100kHz≤-36dBm
1GHz~12.75GHz/1MHz ≤-30dBm

Power Supply

220 VAC (176V~264V), 50Hz(45Hz~65Hz)

System Optical Characteristics

Optical Output Power

4±2dBm

Optical length

DL: 1310nm, UL: 1550nm

Optical Attenuation Range

≤10dB

Fiber Optic Interface Types

FC/APC
