Product Name

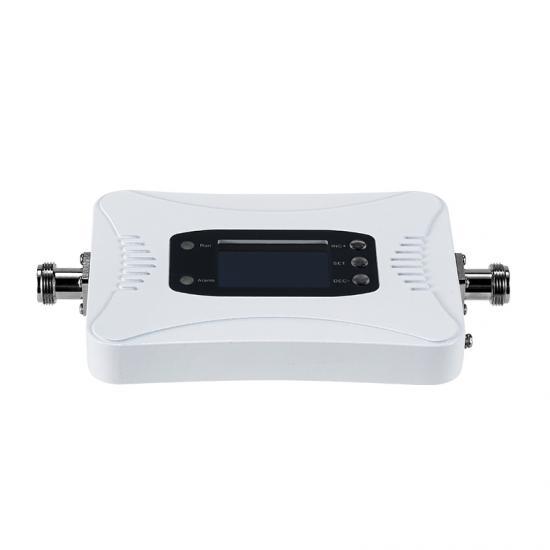

Maniron 703-748&758-803MHz 4G LTE Home Office Repeater Cell Phone Amplifier
Application
Boosting the mobile signal strength, increase mobile signal in building coverage.
Technical & Mechanical Specifications
Frequency
703 ~ 748 MHz
758 ~ 803 MHz
Output power
17±2 dBm
13±2 dBm
Gain
65±2 dB
65±2 dB
VSWR
≤2.5
≤2.5
Max. input power without damage
-10 dBm
-10 dBm
Gain Attenuate Range
1~31 dB, step of 1 dB
1~31 dB, step of 1 dB
ALC control Range
≥ 25 dB
≥ 25 dB
Spurious emission
9KHz~1GHz
≤-36 dBm
≤-36 dBm
1GHz~12.75GHz
≤-30 dBm
≤-30 dBm
ACLR
BWchannel
≥33 dB
≥33 dB
2 X BWchannel
≥33 dB
≥33 dB
EVM
≤ 8%
Noise figure
≤6 dB
Group delay
≤1.5μs

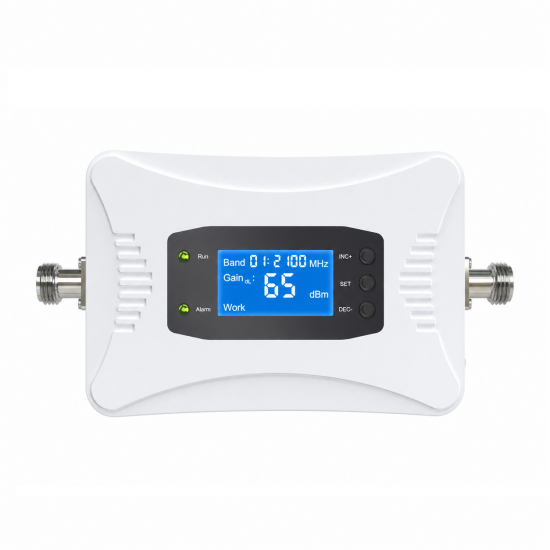

LCD Indication
Band #, Output power, Gain, ISO, Work
LED Indication
Run, Alarm
Power supply
DC 5V/1A
RF connector
N-Female
Environment conditions
IP40
Humidity
< 90%
Operating temperature
-10 ~ +55℃
Size
130*90*19.5mm（Booster host）
Weight
<0.4kg（Booster host）
Accessories
1* Donor antenna OY0727-0965
1* Cover antenna IG0727-03360
1* Coaxial cable 5D-NNJ-15m
