Wall Mount Panel Antennas High Gain Antenna for Communication

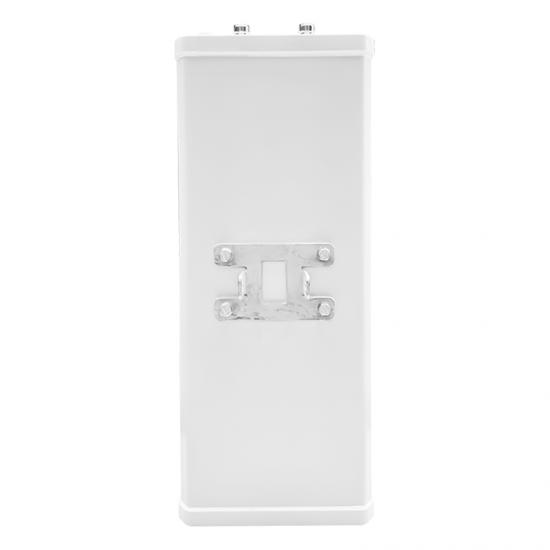

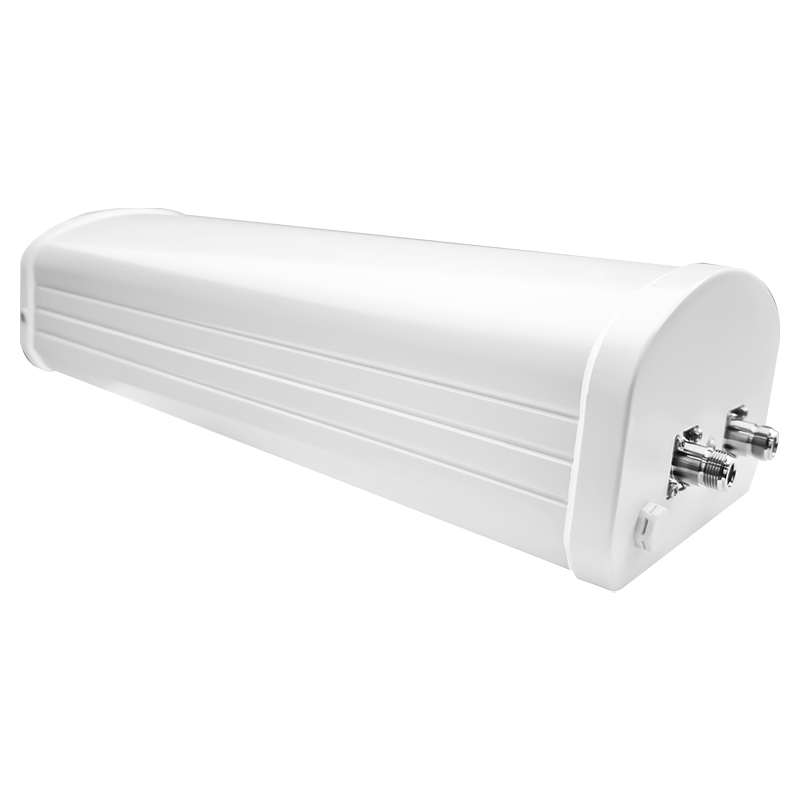

Maniron 3300-4000MHz Outdoor MIMO Directional Panel Antenna

3300-4000MHz 14dBi Outdoor Directional Panel Antenna is used in the wide band. With wide frequency, high gain, it can be widely used for DAS.

Item NO.:
MPA-3340P1X60D14
Lead Time:
7-10 days
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Shenzhen
Color:
White
MOQ:
1

Inquiry now

Products Details

Product Name

Maniron 3300-4000MHz Outdoor MIMO Directional Panel Antenna

Product Features

◆ Wide Frequency Band 3300-4000MHz

◆ Low VSWR

◆ High Gain

◆ Widely used for DAS

Technical &Mechanical Specifications

Model	MPA-3340P1X60D14
Frequency Range(MHz)	3300-4000
polarization	±45°
Electric downtilt angle (°)	0
Gain(dBi)	14±1
Horizontal Beamwidth-°	65±7
Vertical Beamwidth-°	13±5
VSWR	≤1.5
Input Impedance(Ω)	50
Polarization	±45°
Max Power(W)	100
Connector	2*N Female
Lightning Protection	DC Ground
Antenna Dimension(mm)	430180115
Degree of protection	IP65
Operating Temperature(°)	-40～+70

Application
