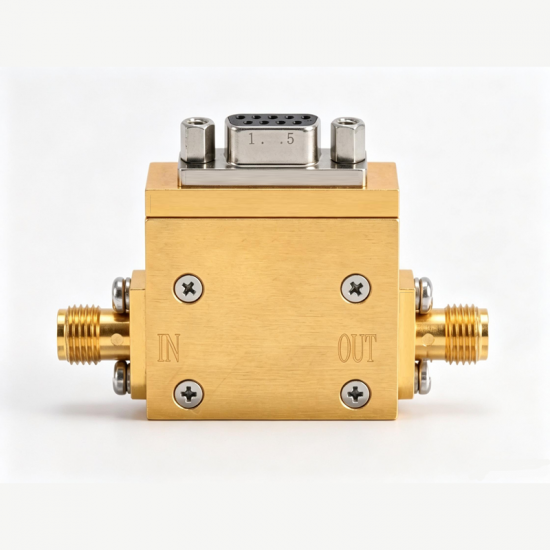

Cryogenic Low Noise Amplifier LNA 4-12GHz, 35dB Gain 6K Noise Temperature SMA-K for 4K Cryogenic Environment

This compact amplifier adopts SMA‑K microwave interfaces and a 9‑pin micro‑rectangular power connector. Its small physical dimension of 25×24×9 mm makes it well‑suited for integration into cryogenic systems. Widely applied in radio astronomy, quantum computing, qubit readout and deep‑space receiving front‑ends.

Item NO.:
MHF-C/X-B-002
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Shenzhen/Guangzhou
Color:
Gold

Inquiry now

Products Details

Product Introduction

The MHF‑C/X‑B‑002 is a high‑performance cryogenic low‑noise amplifier (Cryo‑LNA) covering C/X‑band 4‑12 GHz. It delivers 35 dB typical gain with an ultra‑low noise temperature of only 6 K, while consuming low DC power ≤30 mW

Application

Ultra‑low noise temperature: 6 K

Main Technical Specifications

Model No.	Frequency Range (GHz)	Gain (dB)	Noise Temperature (K)	Power Consumption (m W)	Dimensions (mm)
MHF-C/X-B-002	4-12	35	6	≤30	25249

Interface Definition

Interface	Function Symbol	Description	Interface Type & Definition
Microwave Interface	IN, OUT	Signal input and output	SMA-K / SMA-K
Power Supply Interface	Vg, vd, GND	Gate voltage, Drain voltage, Ground	9*pin micro-rectangular connector
