Maniron LTE 800MHz band20 Signal Booster Mobile Phone Repeater

Repeater with low power, high gain, light weight and easy to install. Boosting the mobile signal strength, increase mobile signal in building coverage.
  • Item NO.:

    M13L-LTE800-N
  • Product Orgin:

    China
  • Brand:

    Maniron
  • Shipping Port:

    Shanghai/Shenzhen/Guangzhou
  • Color:

    White
  • Products Details

Product Name

Maniron LTE 800MHz band20 Signal Booster Mobile Phone Repeater


Application

Boosting the mobile signal strength, increase mobile signal in building coverage.

Technical & Mechanical Specifications

Parameter Data

Uplink

Downlink

Frequency Range

824-849MHz

869-894MHz

Output Power

17±2 dBm

17±2 dBm

Gain

60±2 dB

65±2 dB

Ripple in band

≤6~15dB

Function

Auto Gain Control/Auto Shut Off/MGC

Noise Figure@max. gain

≤6 dB

Spurious emission

9KHz~1GHz

≤-36 dBm

≤-36 dBm

1GHz~12.75GHz

≤-30 dBm

≤-30 dBm

MTBF

>100,000 hours

RF Connector

N-Female

Size

130*90*22mm

Weight

<0.4kg

Operating Temperature

-10℃~+55℃

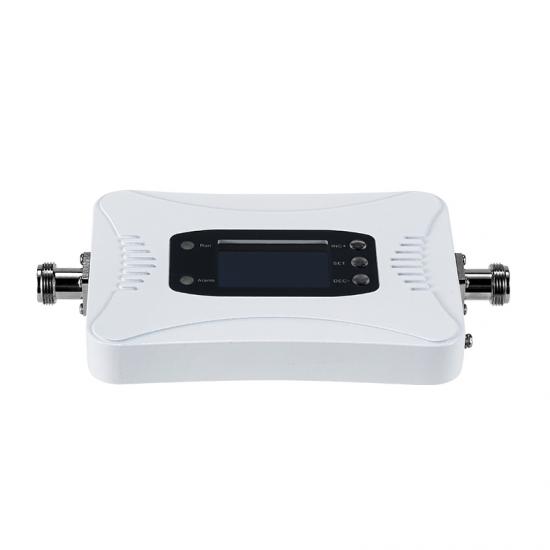

Product Picture
