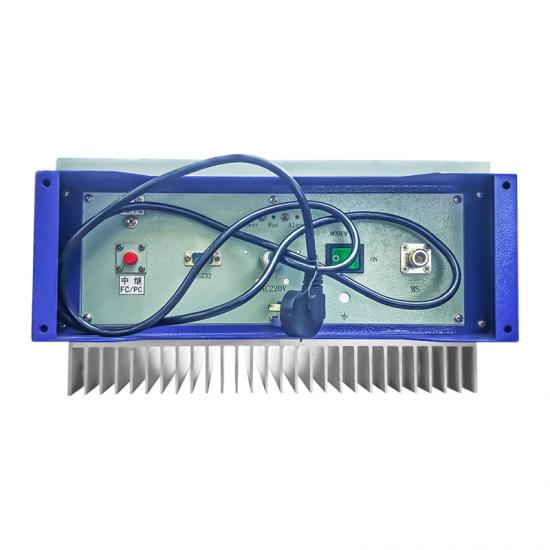

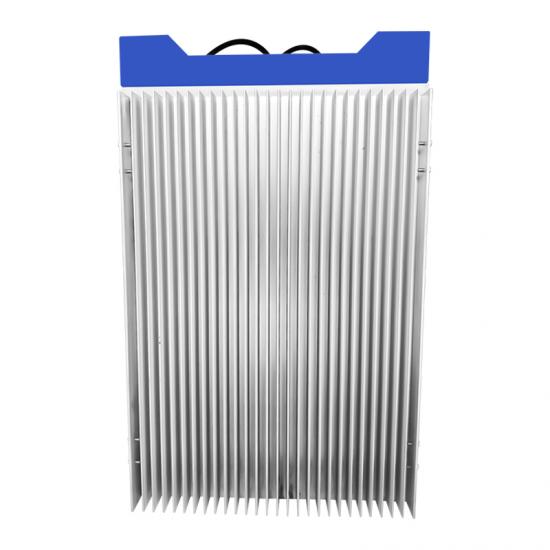

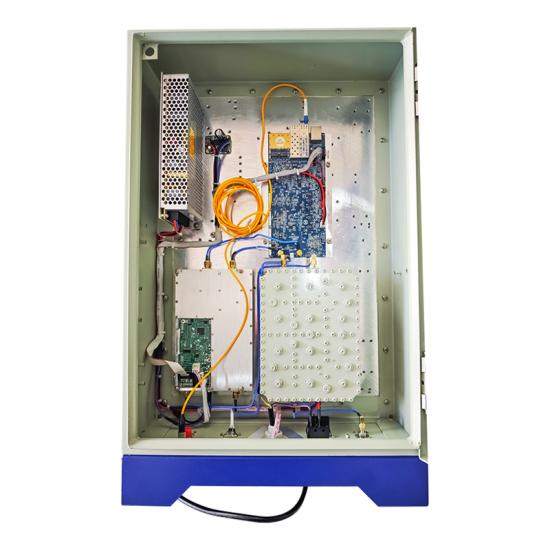

410-414&420-424MHz UHF Digital Fiber Optic Repeater

This UHF fiber repeater supports 420-424 MHz downlink and 410-414 MHz uplink, making it ideal for public safety, private networks, industrial communication, and mission-critical wireless systems.
  • Item NO.:

    MN-YDJGQ400-10
  • Product Orgin:

    China
  • Brand:

    Maniron
  • Shipping Port:

    Shanghai/Shenzhen/Guangzhou
  • Products Details

Product Name

410-424 MHz UHF Fiber Optic Repeater


Application

  • UHF fiber DAS (Distributed Antenna Systems)
  • Public safety communication networks
  • Private LTE / UHF radio systems


  • Technical & Mechanical Specifications

    Items

    Downlink

    Uplink

    Frequency Range

    420-424MHz

    410-414MHz

    Maximum Output Power

    40dBm(±2dB)

    0dBm(±2dB)

    Gain

    55±3dB

    Gain Adjustment Range

    ≥30dB

    Gain Adjustment Step Size

    1dB

    Gain Adjustment Error

    0-20dB

    ±1dB

    20-30dB

    ±1.5dB

    Automatic Level Control(ALC)

    ≤±1.0

    Maximum Input Level

    +10dBm

    -10dBm

    Pass-band Ripple (in Band)

    ≤3dB(Peak)

    Noise Figure

    No requirements

    ≤5dB

    VSWR

    ≤1.5

    Transmission Delay

    ≤5μs

    Spurious Emission

    Outside the operating band(2.5 MHz beyond the band edge)

    9kHz-1GHz In-band ≤-36dBm
    1GHz-12.75GHz In-band ≤-30dBm

    Intermodulation

    In-band Intermodulation

    ≤-45dBc

    Out-of-Band Intermodulation (2.5 MHz beyond the band edge)

    9kHz-1GHz/100kHz ≤-36dBm
    1GHz-12.75GHz/1MHz ≤-30dBm

    Power Supply

    220 VAC (176V-264V), 50Hz(45Hz-65Hz)

    System Optical Characteristics

    Optical Output Power

    4±2dBm

    Optical length

    DL: 1310nm, UL: 1550nm

    Optical Attenuation Range

    ≤10dB

    Fiber Optic Interface Types

    FC/APC





    Leave Message
    If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
    Related Products
    BDA
    Public safety BDA RF Repeater
    Public Safety Digital Dual-Band Off-Air Repeater
     Low White noise Anti Drone Power Amplifier
    Anti UAV RF Signal Modules 459MHz-461MHz Low White noise Anti Drone Power Amplifier RF Modules with SMA-Female connector
    Repeater with low noice design, low interference, low power consumption design and easy to install. Boosting the mobile signal strength, increase mobile signal in building coverage.
    Four band repeater
    Maniron 800 1800 2100 2600 mhz quad band network cell phone mobile signal booster
    Repeater with low noice design, low interference, low power consumption design and easy to install. Boosting the mobile signal strength, increase mobile signal in building coverage.
    UHF Repeater
    Tetra 390M 10dbm Off-air Channel Selective Fiber Optic Repeater
    +10dbm TETRA,UHF, PMR, DMR Bi-DIrectional Amplifier (BDA) 400 MHz Walkie Talkie Power Amplifier Booster/Repeater
    Five band repeater
    Maniron 2G 3G 4G FCC certified Signal Booster Multi-band Cell Phone Signal Amplifier
    Repeater with low power consumption, low interference and easy to install. Boosting the mobile signal strength, increase mobile signal in building coverage.

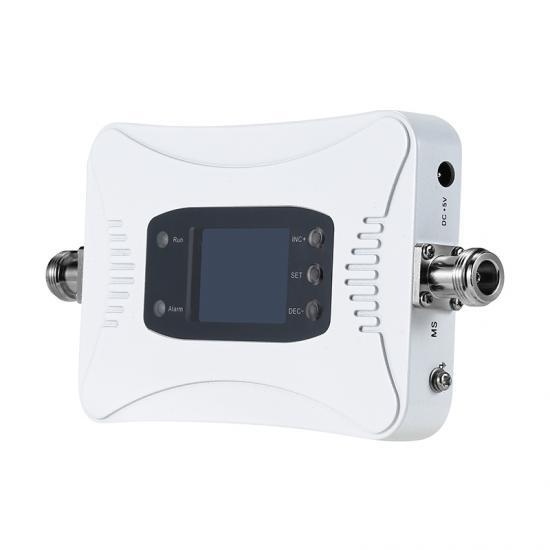

    Maniron 703-748&758-803MHz Single Band Cellular Signal Booster
