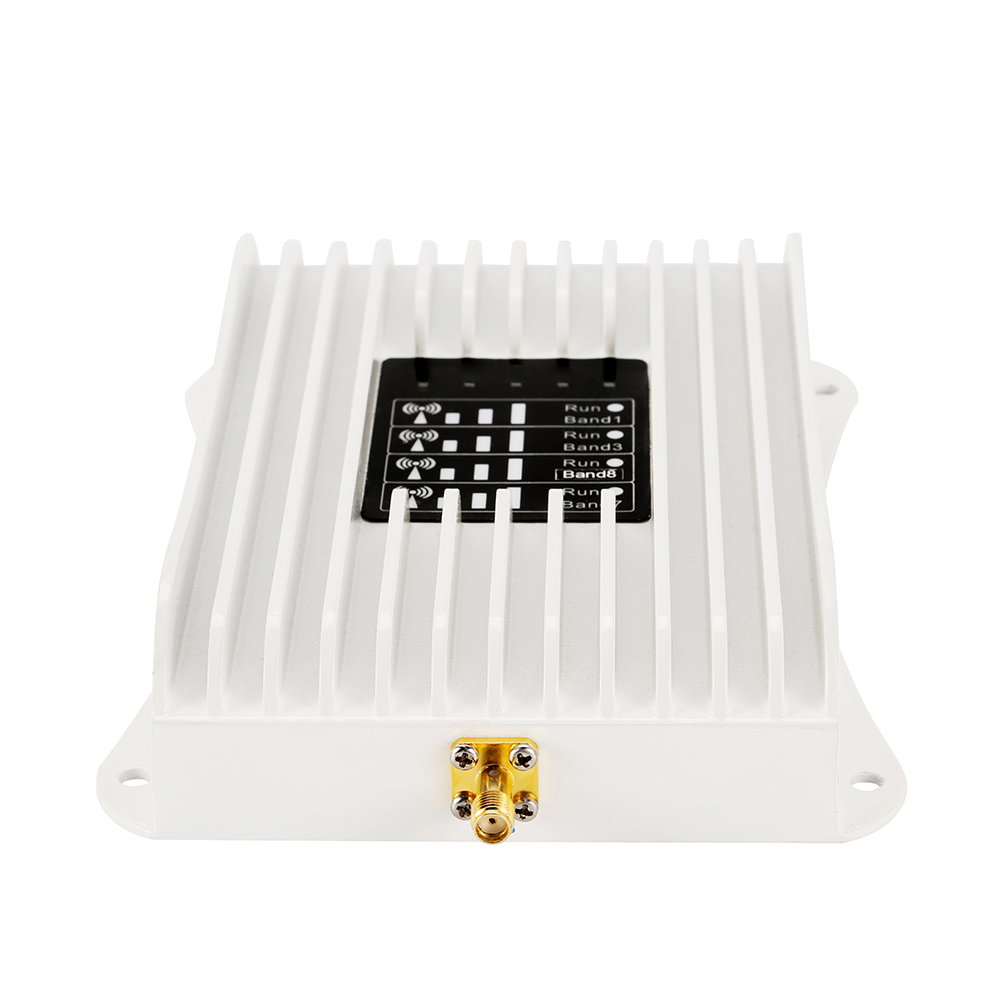

Maniron 800 1800 2100 2600 mhz quad band network cell phone mobile signal booster
Application
Boosting the mobile signal strength, increase mobile signal in building coverage.
Technical & Mechanical Specifications
Parameter Data
Uplink
Downlink
Gain
≥50dB
≥50dB
Ripple in band
Band 1≤6 dB / Band 2≤12 dB / Band 4≤6 dB / Band 5≤8 dB / Band 7≤8 dB / Band 28(B)≤6 dB
Output Power
23±2 dBm
0±2 dBm
Spurious Emission
9KHz-1GHz
≤-36 dBm (RBW=30KHz)
≤-36 dBm (RBW=30KHz)
1GHz-12.75GHz
≤-30 dBm (RBW=1MHz)
≤-30 dBm (RBW=1MHz)
ACRR
5MHz
≥20dB
≥20dB
10MHz
≥20dB
≥20dB
EVM
≤8%
≤8%
VSWR
≤2.5
Time Delay
≤1.5μs
RUN LED Indication
Normal Working
Green
Uplink Idle Off(Mute)
Green Flash(slow flashing: 2 times per second)
Derated ISO Working
Green Flash(fast flashing: 4 times per second)
Stop Working
Turning Off
Shutoff Function
Avaliable
Real-time Self Oscillation Elimination Function, Test Downlink
When self-oscillation occurs(the isolation is less than 1-15dB of the gain), the device will be in derating; when self-oscillation severely occurs(the isolation is less than 16dB and above),the device will be shutoff(both uplink and downlink will be derated and shut off at the same time)
Linkage Balance Function
Uplink and downlink ALC linkage
RF Connector
SMA Female
Power Supply
DC: +12V
Power Consumption
≤24W
Operating Humidity
-10℃~+50℃
Dimension
162*122*34mm
Weight
≤1 Kg
