RF Combiner
Home /

RF Combiner

 / RF triplexer 1710-1880MHz 1920-2170MHz 2500-2690MHz Tri band Combiner

RF triplexer combiner
RF triplexer combiner RF triplexer combiner RF triplexer combiner

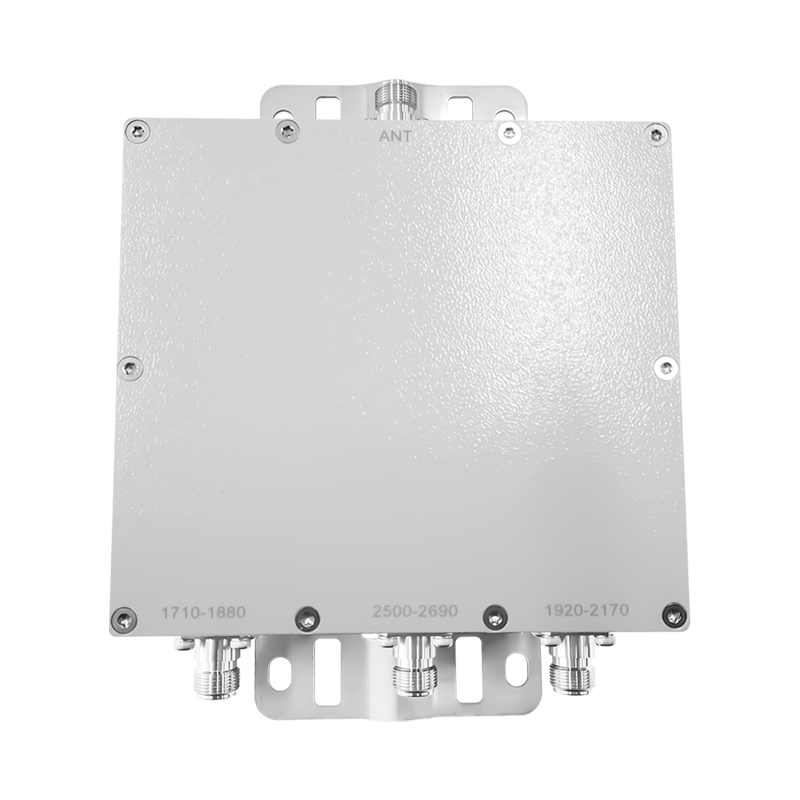

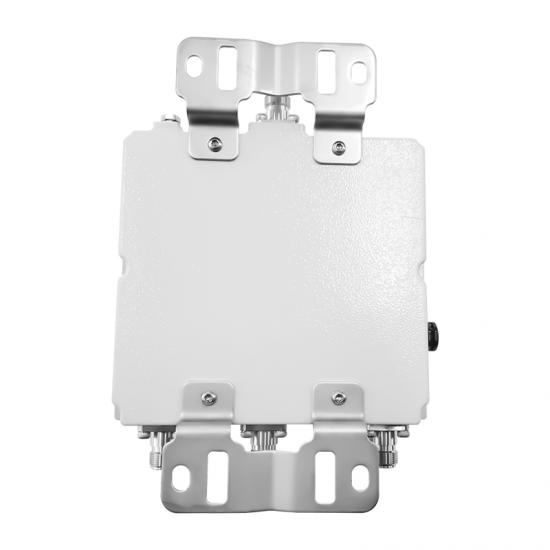

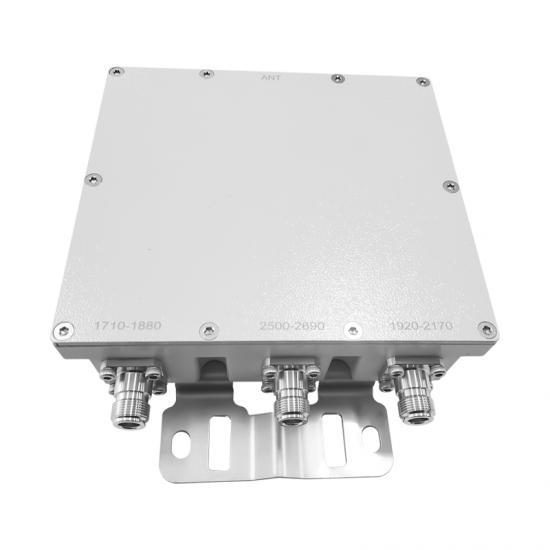

RF triplexer 1710-1880MHz 1920-2170MHz 2500-2690MHz Tri band Combiner

Wide Frequency Band 1710-1880MHz/1710-1880/1920-2170MHz/2500-2690MHz 3-Band Combiner widely used for In-building Solutions

  • Item NO.:

    MNL-TP-1727-NF-155

  • Product Orgin:

    China

  • Brand:

    Maniron

  • Shipping Port:

    Shanghai/Shenzhen/Guangzhou

  • Color:

    Grey

  • MOQ:

    1
Inquiry now
  • Products Details

Product Name

1710-1880MHz 1920-2170MHz 2500-2690MHz tri Band Combiner with 4310 Female connector for DAS IBS


Product Features

◆Compact, low weight

◆Low PIM

◆High reliability

◆Simple installation


Technical &Mechanical Specifications

 Model
MNL-TP-1727-NF-155
 Freq-MHz

Port1：

1710-1880MHz


Port 2:

1920-2170MHz


Port 3:

2500-2690MHz


 Insertion Loss-dB

≤0.5 dB

 Isolation-dB

≥50dB

 VSWR
1.30
 PIM 3rd-dBc
≤ -155dBc
 Average Power-W
200W
 Impedance-Ω
50
 Connector
4310-female
 Temp(deg)
-40~+65
 Applications
Indoor/Outdoor（IP65）

Outline Drawings:



Our Advantages

Hefei Maniron Electronic And Technology Co.,Ltd.,established in 2002,located in Hefei National Hi-tech Industry Development Zone,is a leading manufacture of RF Components.

OEM services are offered.Maniron has a huge fellowship that is composed of many high-level technologists.We also has established a Research Insititution which is a cooperating with some famous universties in China.

Excelent engineers and profesional team

We also other passive components with Low PIM values,such as -150dBc,160dBc,161dBc etc.
