Product Name
DC-6GHz SMA Male Connector is designed to meet the rising performance needs of mobile network equipment
Product Features
RF Connector is in low PIM,Low VSWR and excellent impedance matching,High frequency.From DC to 6GHz.It's widely used for IBS DAS.
Technical &Mechanical Specifications
ELECTRICAL DATA
Impedance
50Ω
Frequency range (for connector interface)
6GHz
Dielectric withstanding voltage (at sea level)
≥750-1500V,50Hz (depending on cable)
Working voltage (at sea level)
≥250-500V,50Hz (sea level) / ≥65-125V,50Hz (Height 21000M)
Insulation resistance
≥ 5000 mΩ
Contact resistance
Inner conductor: ≤3mΩ
Outer conductor: ≤2.5mΩ
RF leakage(2-3GHZ)
Flexible: ≥60dB
Semi-rigid cable: ≥100dB
MECHANICAL DATA
Coupling nut torque
0.8Nm--1.1Nm / 7.1 in.lbs--9.7 in.lbs
Coupling nut retention force
≥270N / 60.7 lbs
Contact captivation axial
≥27N / 6.1 lbs
Durability (matings)
≤500
ENVIRONMENTAL DATA
Temperature range
-65°C to +165°C
MATERIAL DATA
Bodies, outer contacts
Beryllium copper--Au plating
Stainless steel--Passivation
Brass--Au plated / ternary alloy plating
Phosphor bronze --Au plating
Pin contacts
Brass/Beryllium copper--Au plating
Socket contacts
Beryllium copper / Phosphor bronze--Au plating
Crimp ferrules
Brass--Au plating
Insulator
PTFE
Gaskets
Silicone rubber

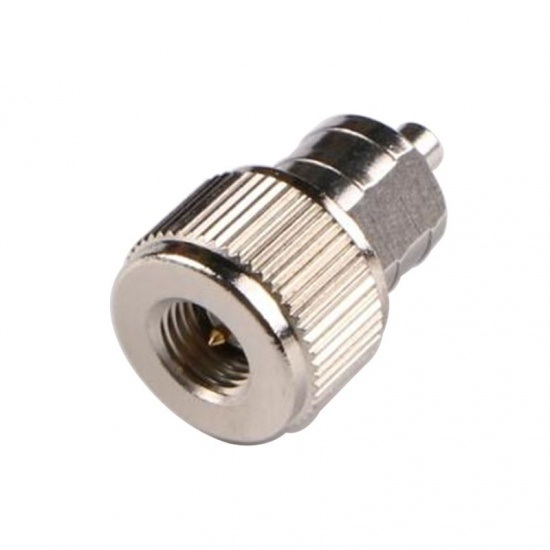

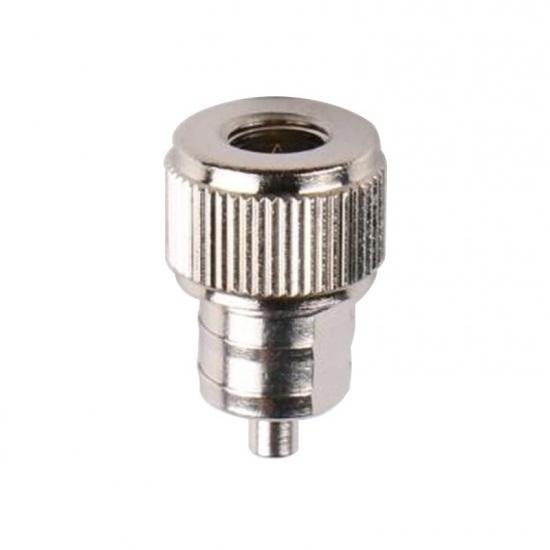

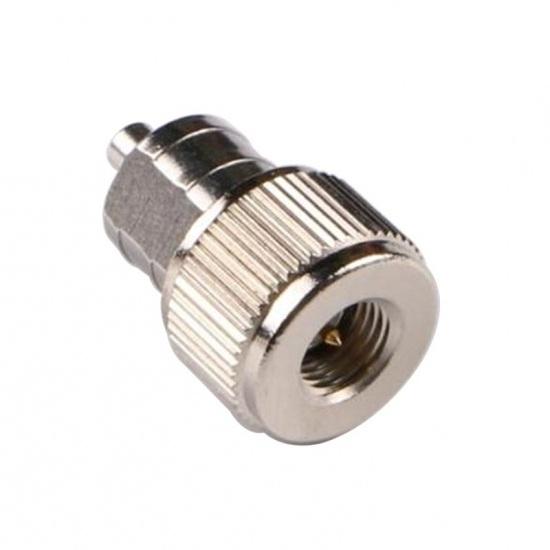

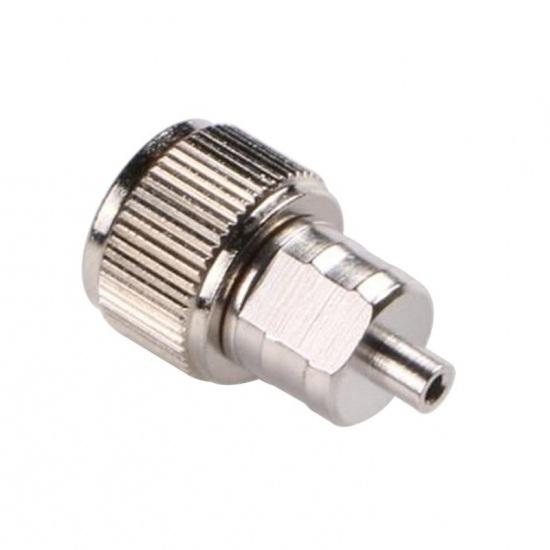

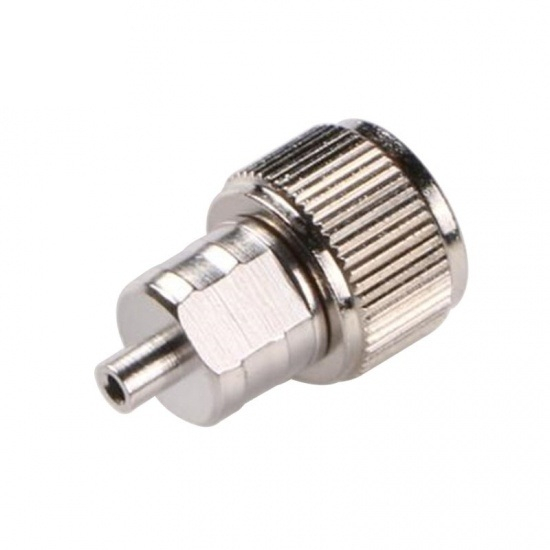

Product picture
OUR SERVICES
1. Professional skills support for RF Passive Products
2. OEM/ODM services is available.
3. 24 hours you can contact our salesman and engineer.
4. We will try our best to provide support whatever you need and we can do.
NOTE:All the specifications can be changed as customer's requirment. Our company has a variety of products to choose
