VHF Cavity Transmitter Combiner 8 in one combiner

VHF Cavity Transmitter Combiner 8 in one combiner is our newest type product,average power is 100W,very low Iinsertion Loss
  • Item NO.:

    MN-TC-N-K
  • Lead Time:

    As per your detailed QTY
  • Product Orgin:

    Anhui,China
  • Brand:

    Maniron
  • Shipping Port:

    Shenzhen,shanghai
  • Color:

    Black
  • MOQ:

    5
  • Products Details

Product Name:

VHF Cavity Transmitter Combiner is a product that 8 accessory in one passive device,imput and output have different VSWR


Technical and Electronic Specifications:

Model No. MN-TC-N-K
Frequency range
TX1:152.015TX2152.265TX3152.525TX4:152.835
TX5:153.095TX6153.375TX7153.645TX8153.905
VSWR

Imput≤1.25 ;

Output:1.50

Insertion Loss
6.0dB
Isolation ANT-TX
60dB
Power
100W(CW)
Operating Temperature

Normal Temp.: +15℃~+35

Limit Temp.:-10℃~+65℃

Connector
N-K,50Ω
Color
Black
Size
420*750*840(mm

Services:

1. Professional skills support for VHF Cavity Transmitter Combiner 8 in one combiner
2. OEM services is available.
3. 24 hours you can contact our salesman and engineer.
4. We will try our best to provide support whatever you need and we can do.

NOTE:All the specifications can be changed as customer's requirment. Our company has a variety of products to choose

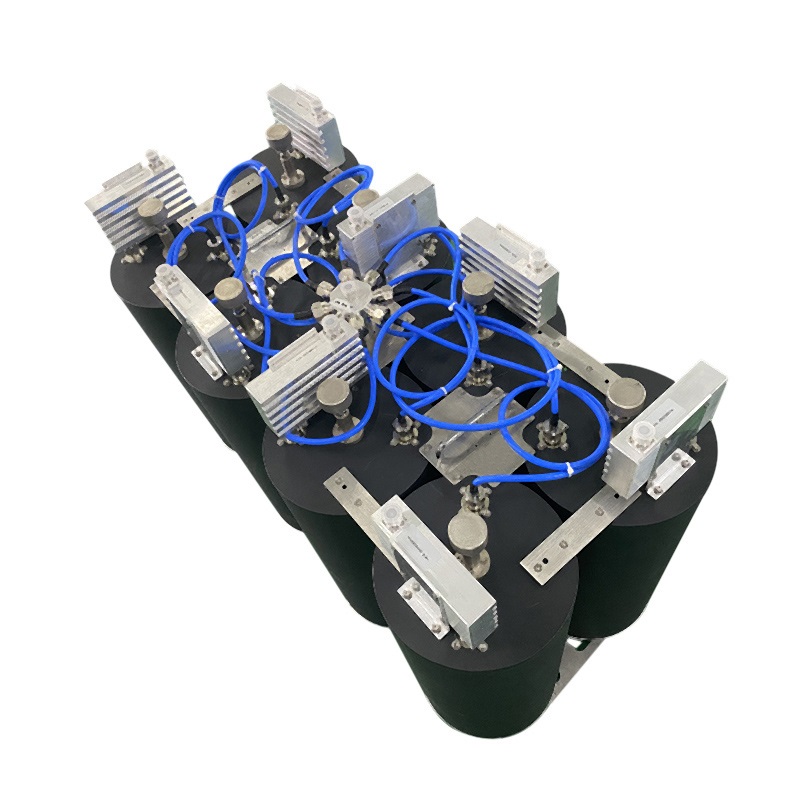

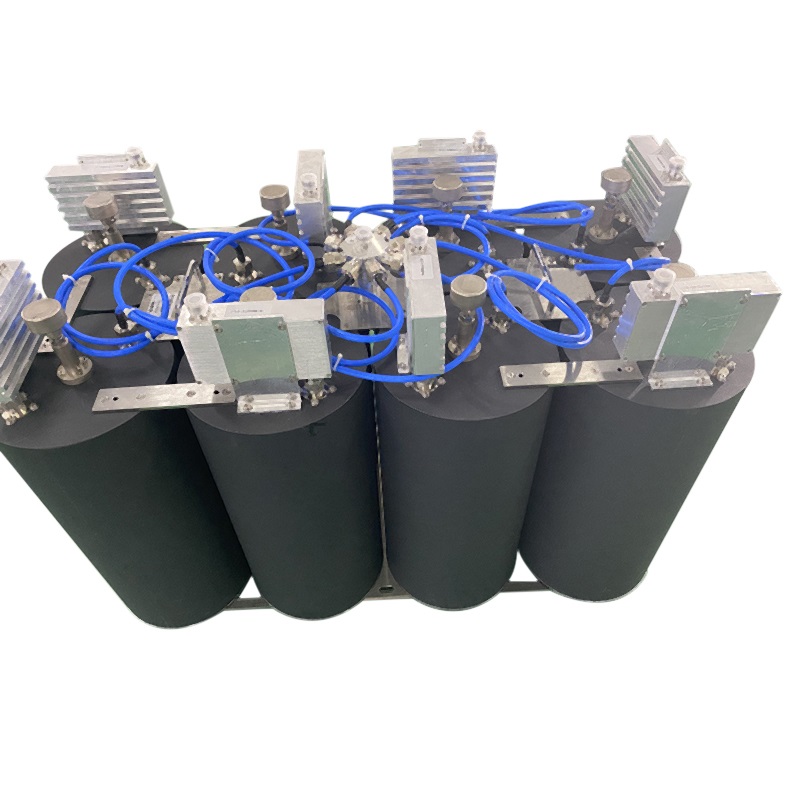

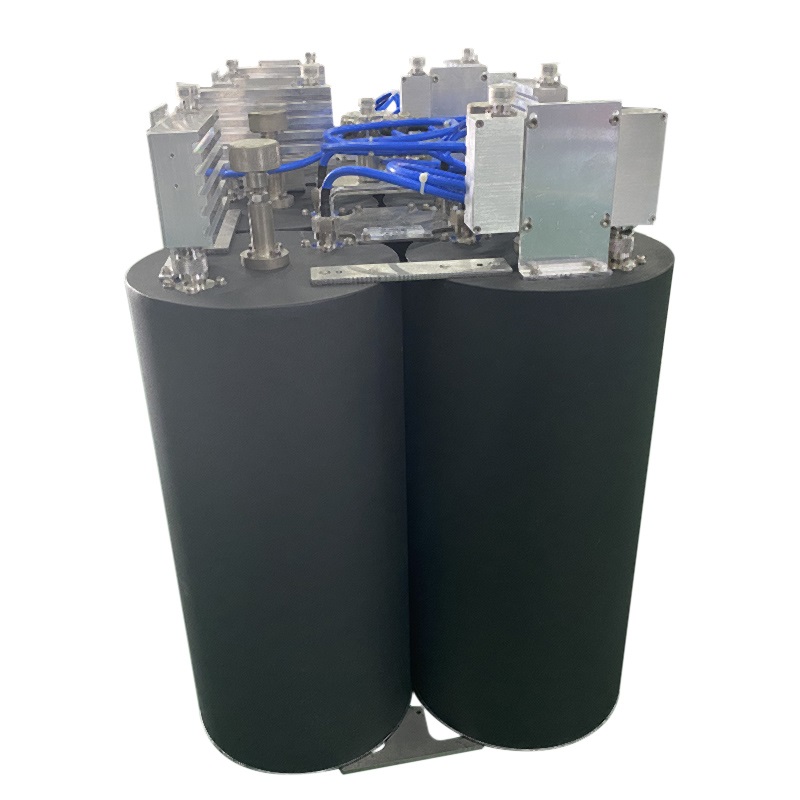

Detailed Image:



VHF Cavity Transmitter Combiner


VHF Cavity Transmitter Combiner


VHF Cavity Transmitter Combiner
