Product Description

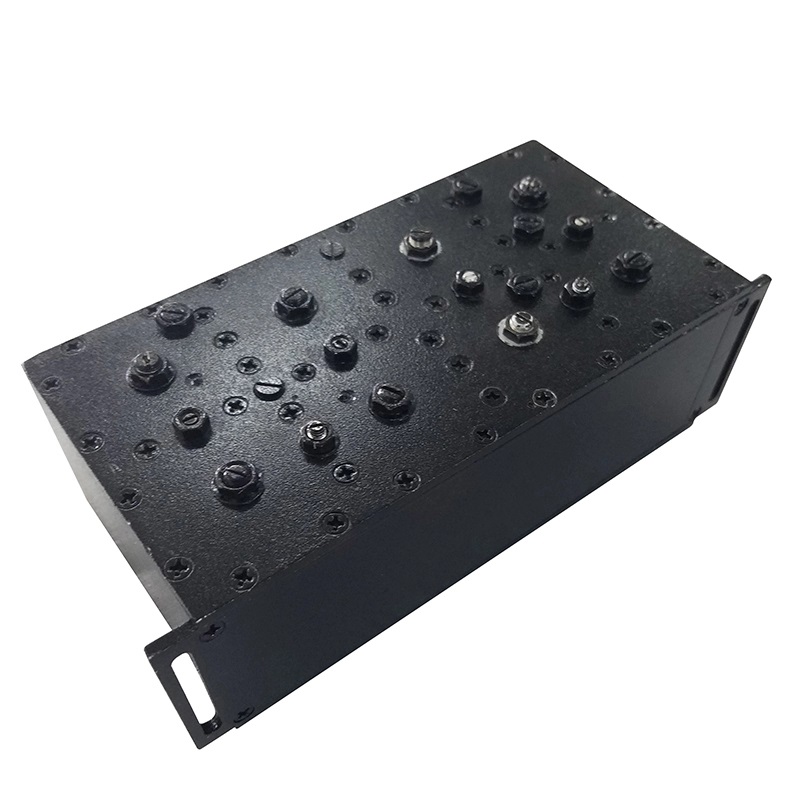

The 50W RF Duplexer is a high-performance filtering component designed for the 410-430MHz range. It features low PIM and exceptional signal isolation, ensuring high reliability for critical communication networks while maintaining a compact and lightweight design.
Application Scenarios
- BTS & IBS Systems: Provides precise signal separation for base station and indoor distribution networks.
- DAS Infrastructure: Ideal for Distributed Antenna Systems requiring high isolation and low interference.
- Custom Radio Links: Optimized for specialized UHF radio setups with simple installation requirements.
Technical Specifications
| Model No. | MND-410-415-420-425-SMA-F |
| Frequency | 415-420 MHz / 425-430 MHz |
| Rejection | ≥45dB |
| Insertion Loss | ≤2.5 |
| Isolation | 90dB min |
| Power | 50W |
| Impedance | 50ohm |
| Operating Temp | -10°C to +60°C |
| Connectors Type | SMA-F |
NOTE: All specifications can be changed as per customer requirements. Our company offers a variety of products to choose from for your network needs.
Frequently Asked Questions
- Q1: Can this duplexer be customized for different frequency offsets?
- A: Yes, we provide OEM services and can adjust the frequency bands to meet your specific regional requirements.
- Q2: What are the benefits of the "Low PIM" feature in this model?
- A: Low Passive Intermodulation (PIM) ensures minimal signal distortion, which is critical for high-capacity DAS and BTS applications.
- Q3: Is technical support available for system integration?
- A: Absolutely. Our engineers offer 24-hour support to help with technical queries and professional skills support for your projects.
- Q4: Does the SMA-F connector support all 50W of power safely?
- A: Yes, the design ensures high reliability at 50W power levels within the specified temperature range (-10°C to +60°C).
