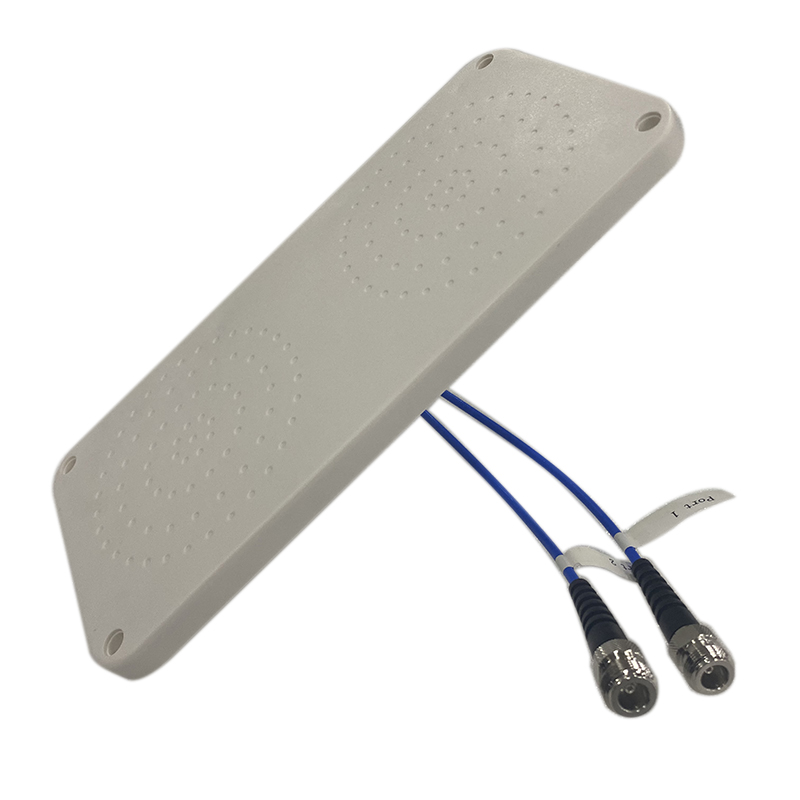

beautiful 700-2700MHz Paper MIMO Omni Antenna with low PIM

The omni ceiling antenna covers frequency 700-2700MHz,which is in low PIM -153dBc with N/4.3-10/DIN-F connector

Item NO.:
MPMOA-727-NF
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Shenzhen/Guangzhou

Inquiry now

Products Details

Product Name

700-2700MHz Low PIM Omni Ceiling Antenna is widely used for DAS.700-2700MHz Omni Ceiling Antenna is wide band for IBS.

Technical & Mechanical Specifications

Model No.	MPMOA-727-NF
Frequency(MHz)	700-790	790-960		2170-2700
Polarization	Linear×2
Gain (dBi)	3±0.5dBi	3±0.5dBi		4.5±0.5dBi
Isolation	18		20		25
VSWR	≦1.7@700-790MHz;≦1.5@790-960,1710-2700MHz
Horizontal Beam-width	Omni (360°)
PIM 3rd(@ 2 x2w)	≤-150dBc
Max Input Power(W)	50
Impedance (ohm)	50
Connector	2 x N-type female
Color/Net Weight	ABS, White, RAL9003/0.41kg
Working Temp(deg)	-40~+55
Mounting Kit	Ceiling, via hole (standard)
Reflector/Ra Material	Aluminium
Dimensions(mm)	290×140x18
