High Gain 12dBi 680-860MHz 100W N-F Good Quality Yagi Antenna

Their directional gain, simplicity, and cost-effectiveness make Yagi antennas ideal for scenarios requiring focused signal transmission/reception over long distances, while rejecting noise or interference from other directions

Item NO.:
MYA-700-12-NF-100
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Shenzhen/Guangzhou/Ningbo
Color:
Black

Inquiry now

Products Details

Product Name

High Gain 12dBi 680-860MHz 100W N-F Yagi Antenna

Technical & Mechanical Specifications

Frequency	680-860MHz
Gain	12dBi
VSWR	1.5
Polarization	Vertical or Horizontal
Power Handling	100W
Impedance	50Ohm
BW/Vertical	40°
BW/Horizontal	44°
Front to Back Ratio	16dB

Lighting Protection

DC-Ground

Operating Temperature Range

-35°C to +65°C

Storage Temperature Range

-60°C to +85°C

Antenna Colour

Silver Gray

Cable Colour

Black

Connector Type

N-Female

Relative Humidity

5%-95%

Packing

1PC in a box

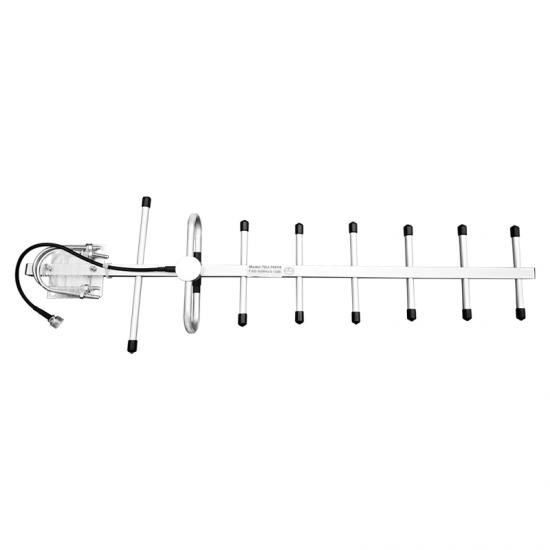

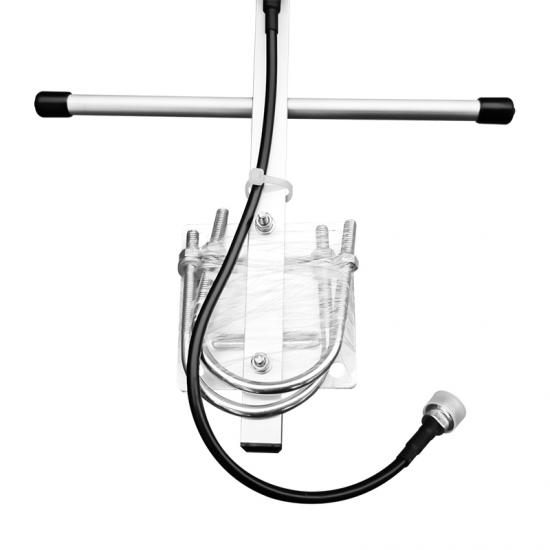

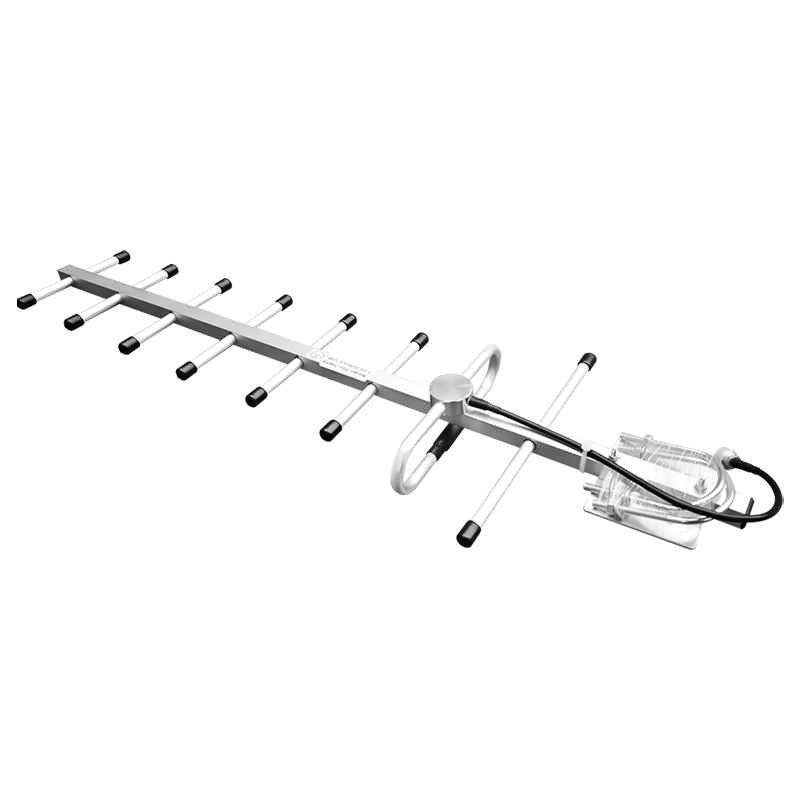

Product Photo

Application:

Leave Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Subject : High Gain 12dBi 680-860MHz 100W N-F Good Quality Yagi Antenna
Im interested in your "High Gain 12dBi 680-860MHz 100W N-F Good Quality Yagi Antenna", please inform me more detailed product information and price. Thankyou!

Tags :

Categories

New Products

Related Products

698-2700MHz SISO Directional Wall Mount Antenna Low PIM -150dBc -160dBc

The directional antenna is used as a system to determine the angular direction of incoming radio signals.

698-2700MHz High Gain 10dBi Log Periodic Antenna

Log-Periodic Antenna is mainly used in the ultra-short wave band

698-3800MHz Broadband Indoor Ceiling Antenna with N-Female

Omni Directional Antenna ranges from 698-3800MHz which are in high gain for indoor buliding systems.

800-2700MHz MIMO Omni Directional Antenna 3-5dBi Indoor RF Antenna

800-2700MHz MIMO Omni Directional Antenna has 2 connectors which are used indoor system

790-870MHz High Gain 9dBi RF Mimo Panel Antenna

Panel Antenna is widely used indoor and esay for installing

panel directional antenna 7dBi 698-2700MHz

698-2700MHz Panel directional Antenna with 7dBi N-F Connector

Panel Directional Antenna is Widely used in IBS projects

High Gain 698-3800MHz Indoor Panel Directional Antenna 5-7dBi

Panel Directional Antenna is used for indoor signal receiption.

Maniron 698-2700MHz Ceiling Omni Antenna High Gain Indoor Antenna

The Ceiling Omni Antenna is widely used indoor,which is small and easy for installing.

Low PIM -150dBc -160dBc 698-2700MHz Omni Directional Ceiling Antenna High Gain

The indoor ceiling omni-directional antenna is usually installed on the ceiling to provide omni-directional coverage indoors.

Low PIM 698-960/1710-2700MHz 11dBi Log-Periodic Antenna -150dBc DAS Antenna

Log-Periodic Antenna is mainly used in the ultra-short wave band, and can also be used as the short wave communication antenna, medium wave and short wave broadcasting transmitting antenna

VHF UHF Antenna 470-512MHz RF Antenna for Wireless Communication

UHF antenna is a device for recieving and sending RFID signals. It is widely used in occasions that require long distance indentifying and high motion speed tracking.

Maniron 698-2700MHz Omni Ceiling Antenna -150dBc Low PIM

It's one kind of ceiling antenna which is mainly used for indoor signal coverage.

9 Elements1800-2100MHz UMTS2100 Antenna 13dBi

It has good directionality and higher gain than the dipole antenna,which is useful for long-distance communication.

806-960MHz 13dBi GSM900 9 Elements Yagi Antenna for Outdoor

It has good directionality and higher gain than the dipole antenna.

Low PIM -153dBc SISO Omni Antenna for communications

RF 698-3800MHz High Gain Slim Omni Ceiling Antenna

698-3800MHz Low PIM -153dBc Slim Indoor Omni Antenna

High Gain 698-2700MHz SISO Log Periodic Antennas with N-female

698-2700MHz SISO Log Periodic Antennas is high Gain used in DAS

GSM Multi-Band Directional Sector Antenna

GSM Multi-Band Directional Sector Antenna is high Gain used in DAS

multiband outdoor panel sector LTE 4G antenna for 2G 3g 4g

Panel sector antenna is widely used in BTS with high gain.

800-2700MHz 2/5dBi Omni Ceiling Antenna

Omni ceiling antenna is designed to be mounted in a suspended ceiling and provides better indoor coverage than a standard whip antenna.Omni ceiling antenna is compatible with GSM900, GSM1800 and 3G UMTS 2100 networks. This indoor ceiling aerial is suitable for almost all of the repeater kits.

698-2700MHz 2/5dBi Omni Ceiling Antenna

Omni ceiling antenna is designed to be mounted in a suspended ceiling and provides better indoor coverage than a standard whip antenna.

350-960MHz UHF SISO Omni Ceiling Antenna

Omni ceiling antenna is designed to be mounted in a suspended ceiling and provides better indoor coverage than a standard whip antenna.

380-3800MHz Low PIM Slim Indoor Omni Antenna

470-512MHz RF Red VHF UHF Antenna

470-512MHz RF Antenna is used for VHF,UHF,Public Safety Solution System.The color is as same as 138-960MHz Components,like power splitter,directional coupler,hybrid coupler,combiner

Antenna coupler

An antenna coupler is a device which makes it possible for one or two antennas to do the electrical work of many, as opposed to using a separate antenna for each individual wavelength.

RF wifi 350-2700MHz ultra thin Omni Ceiling Antenna High Gain

350-2700MHz Low PIM -140dBc Ultra thin Omni Antenna

RF Antenna high gain indoor omni antenna

Maniron 698-2700MHz Low PIM -153dBc Omni Ceiling Antenna

Omni Directional Antenna covers frequency 698-2700MHz ,which is in low PIM -153dBc for indoor system

Maniron 698-2700MHz Slim RF Omni Ceiling Antenna

The omni ceiling antenna covers frequency 698-2700MHz,which is slim and in low PIM -153dBc.

ultra thin omni ceiling antenna 380-3800MHz for IBS

The omni ceiling antenna covers frequency 380-3800MHz,which is slim and in low PIM -153dBc.

High Gain Antenna 698-4000MHz Omni Ceiling Antenna

The omni ceiling antenna covers frequency 698-4000MHz,which is in low PIM -153dBc with N/4.3-10/DIN-F connector

Maniron 698-3800MHz Low PIM -153dBc RF Panel Antenna

This RF Panel antenna covers frequency 698-3800MHz,which is in low PIM -153dBc with N/4.3-10/DIN-F connector and it's used for outdoor DAS

617-3800MHz Slim RF Omni Ceiling Antenna with -153dBc

The slim omni ceiling antenna covers frequency 617-3800MHz,which is in low PIM -153dBc with N/4.3-10/DIN-F connector.It's easy for installation.

High Gain Antenna 698-6000MHz Omni Ceiling Antenna with 4.3/10

The omni ceiling antenna covers frequency 698-6000MHz,which is in low PIM -153dBc with N/4.3-10/DIN-F connector

High Gain Antenna 698-3800MHz Omni Ceiling Antenna for 5G Low PIM

The omni ceiling antenna covers frequency 698-3800MHz,which is in low PIM -153dBc with N/4.3-10/DIN-F connector

698-4000MHz outdoor panel antenna with low PIM 4.3/10 connector

This RF Panel antenna covers frequency 698-4000MHz,which is in low PIM -153dBc with N/4.3-10/DIN-F connector and it's used for outdoor DAS

860-870MHz 5dBi Omni Directional Antenna with N-Female

860-870MHz Omni Directional Antenna has high gain which are in high gain for indoor buliding systems.

Fiberglass Omni Antenna 380-470MHz

380～470MHz 3dBi Fiberglass Omni Antennas for UHF Band Communications System

690-3800MHz, 1.5/2/2/5dBi, 50W SISO Omni Ceiling Antenna with N-Female connector PIM 140dBc

The Ceiling Omni Antenna is widely used for In-building DAS,which is small and easy for installing.

beautiful 700-2700MHz Paper MIMO Omni Antenna with low PIM

The omni ceiling antenna covers frequency 700-2700MHz,which is in low PIM -153dBc with N/4.3-10/DIN-F connector

1710-2700MHz MIMO 12dBi Outdoor Panel Directional Antenna

SISO 698-3800MHz Log-periodic Antenna with 4.3/10 type for 5G DAS

698-3800MHz Log-periodic Antenna is widely used for In-building Solutions with high Gain,10/12dBi.

698-2700MHz 68CM 50W Fiberglass Omni Antenna

This Fiberglass Omni Antenna with N Female connector covers 698-960/1710-2700MHz Fiberglass antennas deployed in a comprehensive range of networks such as Public Safety, Mission Critical Communication, LTE and IoT networks

Maniron 380-3800MHz 2 Way Round Cavity Power Splitter with Low PIM -160dBc

The cavity power splitter with high power.It covers frequency from 380 to 3800MHz with Low PIM -160dBc

Maniron 698-3800MHz 3.5dBi Omni-directional Fibreglass Antenna with 4.3-10 female Connector

It's Omni-directional fibreglass antenna,coveres frequency from 698-3800MHz.It's easy for install.

380-3800MHz 4 Way Round Cavity Power Splitter with Low PIM -160dBc

4 Way cavity power splitter with high power.It covers frequency from 380 to 3800MHz with Low PIM -160dBc

wideband 698-2700MHz Desktop Antenna 4G Vertical Polarization

The Desktop Antenna covers frequency 698-2700MHz,which is in high gain with SMA connector

698-2700MHz Ultra omni antenna rectangle with high gain

Ultra omni antenna covers frequency 698-2700MHz,which is beautiful shape with N-F connector

dual band single-polarization 402-514/806-866MHz panel antenna

Panel antenna covers frequency 402-514/806-866MHz,which is dual band with N-F connector.

698-2700MHz MIMO Ceiling Mount Dome Antenna with low PIM

MIMO Ceiling Mount Dome Antenna covers frequency 698-2700MHz ,which is in low PIM -153dBc for indoor system

Indoor Wide band 5G Panel Antenna coverage 380MHz - 3800MHz low PIM

Indoor Wide band Panel Antenna , coverage 380MHz - 3800MHz , Low PIM ≤-140@2 x 20W

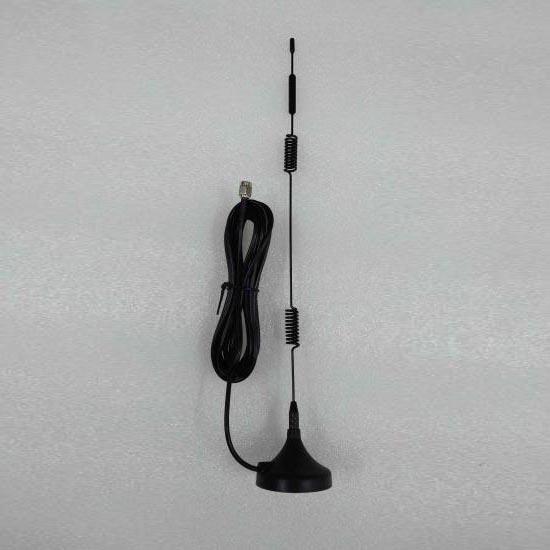

6dBi Magnetic Antenna 700-3600MHz for 5G , SMA
