RF Combiner
Home /

RF Combiner

 / POI 6 IN 2 OUT 1800/2100/2600 19 Rack DIN Female

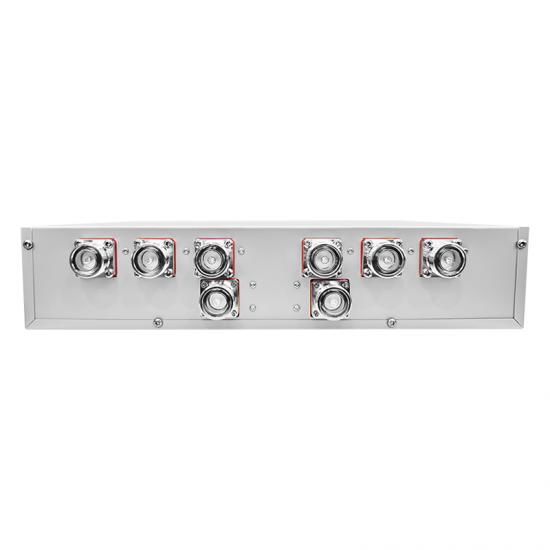

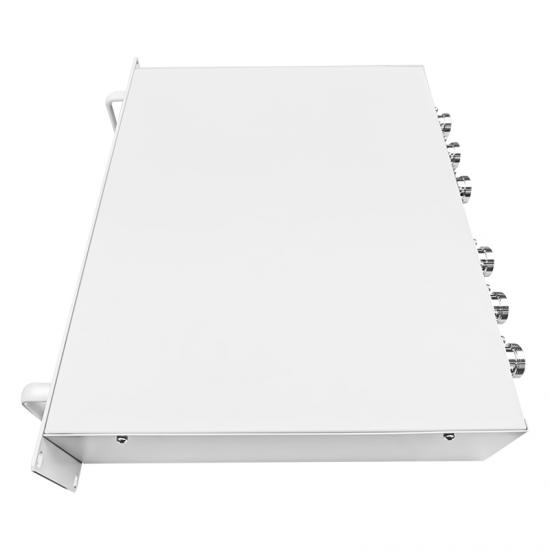

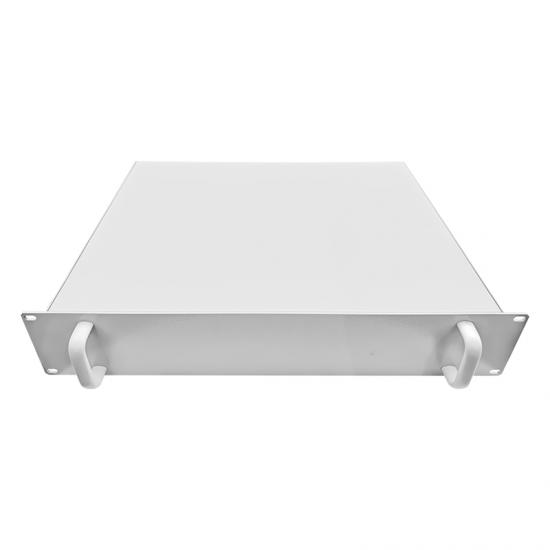

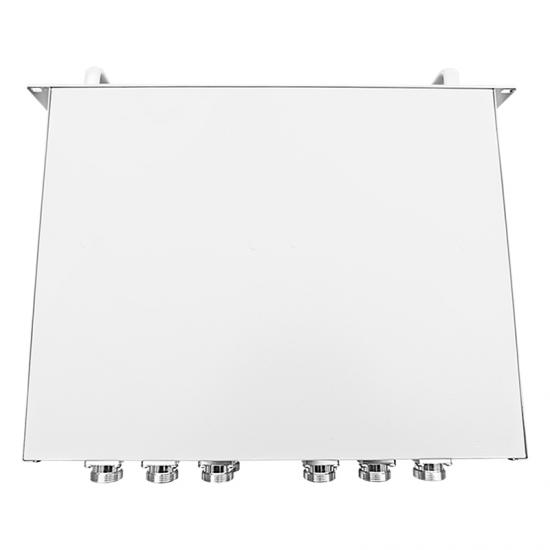

6 IN 2 OUT POI Combiner
6 IN 2 OUT POI Combiner 6 IN 2 OUT POI Combiner 6 IN 2 OUT POI Combiner 6 IN 2 OUT POI Combiner

POI 6 IN 2 OUT 1800/2100/2600 19 Rack DIN Female

6 IN 2 OUT RF POI 1710-1880MHz/1920-2170MHz/2490-2690MHz Point Of Interface widely used for In-building Solutions

  • Item NO.:

    MNL-POI-6IN2OUT

  • Product Orgin:

    China

  • Brand:

    Maniron

  • Shipping Port:

    Shanghai/Shenzhen/Guangzhou

  • Color:

    Grey

  • MOQ:

    1
Inquiry now
  • Products Details

Product Name

6 IN 2 OUT RF POI 1710-1880MHz/1920-2170MHz/2490-2690MHz Point Of Interface Combiner with DIN Female connector for DAS IBS


Product Features

◆Compact, low weight

◆Low PIM

◆High reliability

◆Simple installation


Technical &Mechanical Specifications

Input1
1800 Band
1710-1880MHz
2100 Band
1920-2170MHz
2600 Band
2490-2690MHz
Input2
1800 Band
1710-1880MHz
2100 Band
1920-2170MHz
2600 Band
2490-2690MHz
Insertion loss
≤5dB
Isolation （Same Band）
≥23dB
Isolation （Different band）
≥80dB
Input Port Return loss
≥18dB
Input Per Power
200W
Intermodulation (3rd order)
≤ -155dBc @ 2 x 20W
Impedance
50 ohm
Dimensions, LxWxH (mm)
(excluding connectors&mounting bracket)
350*482*89
Connectors type
DIN-F
Mounting
19”Rack
Operating temperature range
-10°C to +55°C
Relative humidity
＜95%
Environmental Class
IP40


Outline Drawings:
