4-Band Low PIM Combiner
4-Band Low PIM Combiner 4-Band Low PIM Combiner 4-Band Low PIM Combiner

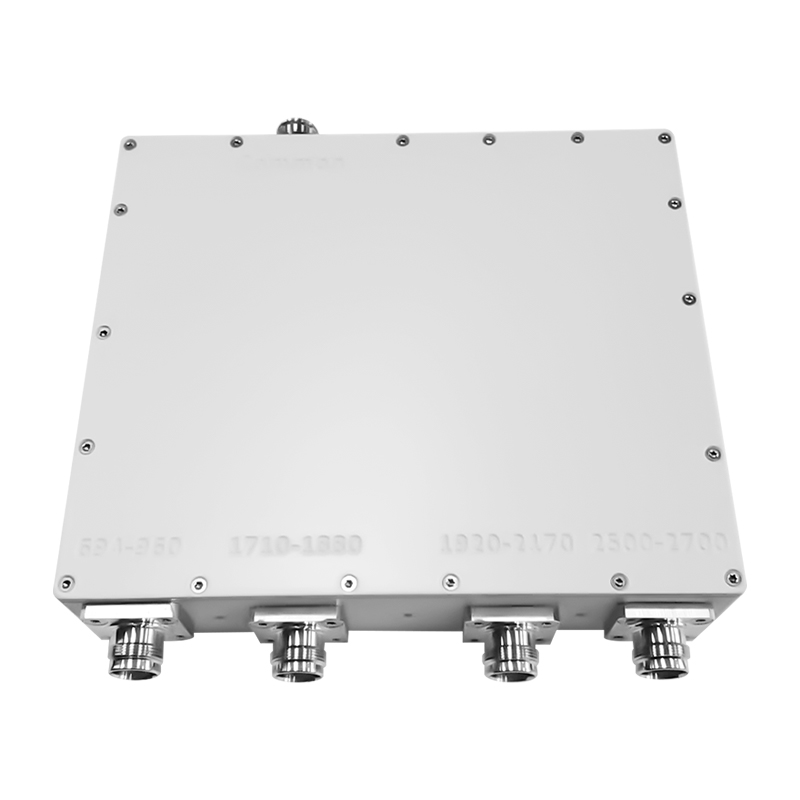

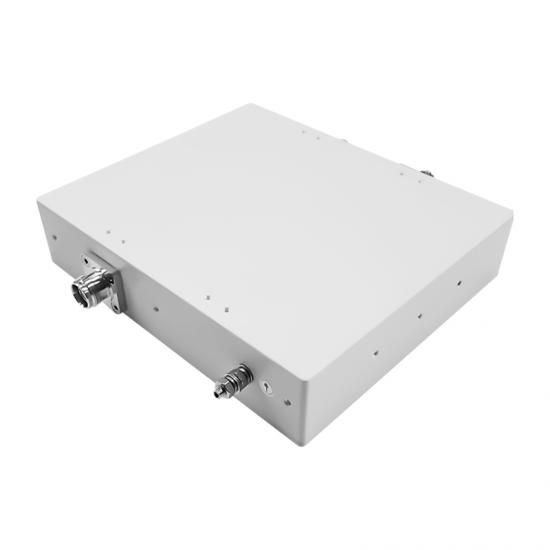

Quadruplexer 4-Band 700-900/1800/2100/2600MHz Low PIM Combiner

Wide Frequency Band 694-960/1710-1880/1920-2170/2500-2700MHz 4-Band Combiner widely used for In-building Solutions

  • Item NO.:

    MNC-4-694/2700-4F-15

  • Product Orgin:

    China

  • Brand:

    Maniron

  • Shipping Port:

    Shanghai/Shenzhen/Guangzhou

  • Color:

    Grey

  • MOQ:

    1
Inquiry now
  • Products Details

Product Name

694-960/1710-1880/1920-2170/2500-2700MHz 4 Band Combiner with 4310 Female connector for DAS IBS


Product Features

◆Compact, low weight

◆Low PIM

◆High reliability

◆Simple installation


Technical &Mechanical Specifications

 Model
MNC-4-694/2700-4F-155
 Freq-MHz

Port1：694-960MHZ

Port 2: 1710-1880MHz

Port 3: 1920-2170MHz

Port 4: 2500-2700MHz


 Insertion Loss-dB



≤0.2 dB (694-960MHz)

≤0.4 dB (1710-1880MHz)

≤0.5 dB (1920-2170MHz)

≤0.3 dB (2500-2700MHz)



 Isolation-dB

≥50dB

 VSWR
1.25
 PIM 3rd-dBc
≤ -155dBc
 Average Power-W
250W
 Impedance-Ω
50
 Connector
4310-female
 Temp(deg)
-40~+65
 Applications
Indoor/Outdoor（IP65）

Outline Drawings:



Our Advantages

Hefei Maniron Electronic And Technology Co.,Ltd.,established in 2002,located in Hefei National Hi-tech Industry Development Zone,is a leading manufacture of RF Components.

OEM services are offered.Maniron has a huge fellowship that is composed of many high-level technologists.We also has established a Research Insititution which is a cooperating with some famous universties in China.

Excelent engineers and profesional team

We also other passive components with Low PIM values,such as -150dBc,160dBc,161dBc etc.
