RF Combiner
Home /

RF Combiner

 / High Quality 50W 30MHz-120MHz;136MHz-170MHz;430MHz-470MHz triplexer combiner with N-F

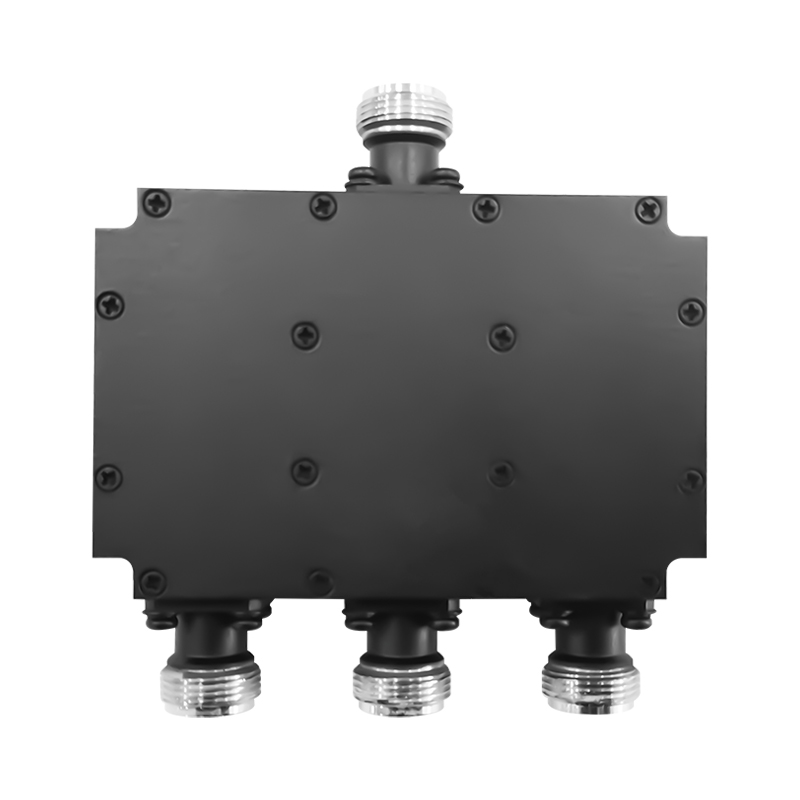

RF triplexer

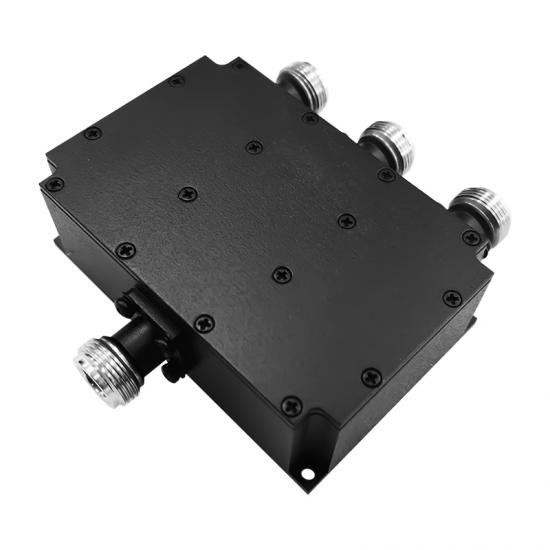

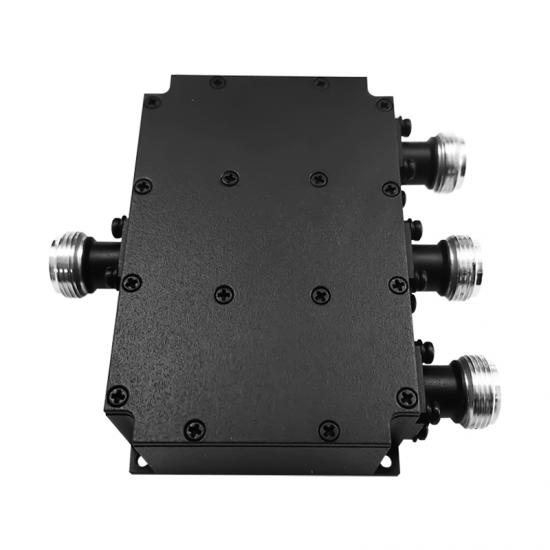

RF triplexer RF triplexer RF triplexer

High Quality 50W 30MHz-120MHz;136MHz-170MHz;430MHz-470MHz triplexer combiner with N-F

30-120MHz;136-170MHz; 430-470MHz rf triplexer combiner with N-F, High Power Capacity, High Isolation. It's easy for installation.

  • Item NO.:

    W-LC120-136-430-Y

  • Product Orgin:

    China

  • Brand:

    Maniron

  • Shipping Port:

    Shanghai/Shenzhen/Guangzhou

  • Color:

    Black
Inquiry now
  • Products Details

Product Name

50W 30-120MHz;136-170MHz; 430-470MHz rf triplexer combiner with N F High Isolation

Product Features

◆Compact, low weight

◆High reliability

◆Simple installation

Technical &Mechanical Specifications

Outline Pictures:

Frequency

 CH1: 30MHz-120MHz

 CH2: 136MHz-170MHz

CH3:  430MHz-470MHz

Power

50 W

Isolation

≥ 30 dB

Insertion Loss

≤ 2.0 dB

VSWR

< 1.5

Connectors type

N(f)

RF triplexer
