Octa Band Combiner

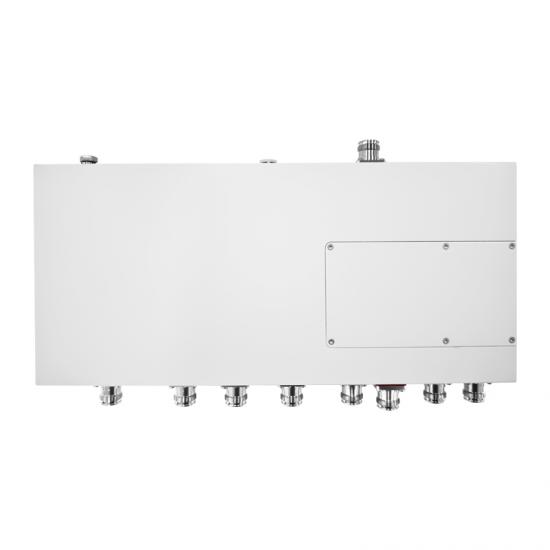

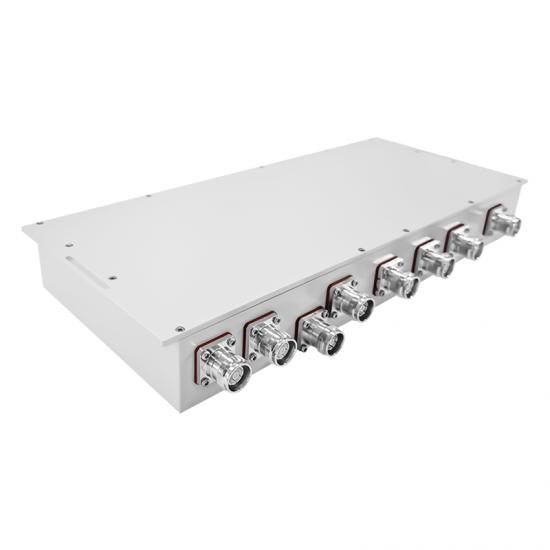

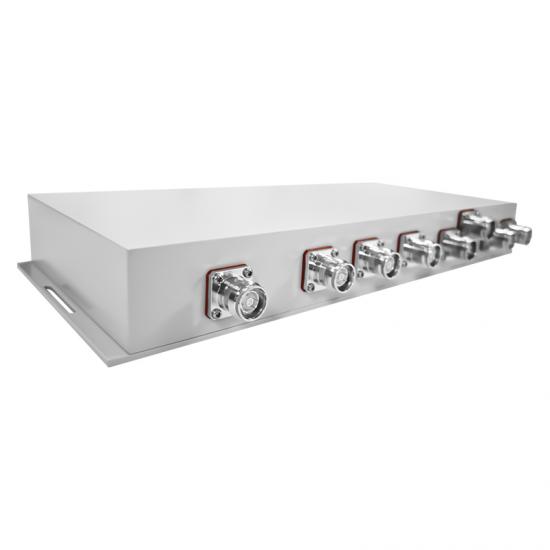

Octa Band Combiner Octa Band Combiner Octa Band Combiner

RF Parts Manufacturer Low PIM Octa Band Combiner -150dBc 700-3800MHz

Wide Frequency Band 703-803/885-960/1710-1880/1920-2170/3300-3800/3300-3800/2300-2400/2500-2690MHz 8 Octa Band Combiner widely used for In-building Solutions

  • Item NO.:

    MOCTA-700/3800-43F-1

  • Product Orgin:

    China

  • Brand:

    Maniron

  • Shipping Port:

    Shanghai/Shenzhen/Guangzhou

  • Color:

    Grey

  • MOQ:

    1
Inquiry now
  • Products Details

Product Name

703-803/885-960/1710-1880/1920-2170/3300-3800/3300-3800/2300-2400/2500-2690MHz 8 Octa Band Combiner

with 4310 Female connector for DAS IBS


Product Features

◆Compact, low weight

◆Low PIM

◆High reliability

◆Simple installation


Technical &Mechanical Specifications

 Model
MOCTA-700/3800-43F-150
 Freq-MHz

Port1：703-803MHZ

Port 2: 885-960MHz

Port 3: 1710-1880MHz

Port 4: 1920-2170MHz

Port 5: 3300-3800MHz

Port 6: 3300-3800MHz

Port 7: 2300-2400MHz

Port 8: 2500-2690MHz

 Insertion Loss-dB

≤1.5 dB（≤3GHz）

≤4.0 dB（≥3GHz）

 Isolation-dB

≥50dB for different bands

≥25dB for same bands

 Return Loss
≥20dB
 PIM 3rd-dBc
≤ -150dBc
 Average Power-W
200W
 Impedance-Ω
50
 Connector
4310-female
 Temp(deg)
-20~+65
 Applications
Indoor/Outdoor（IP65）

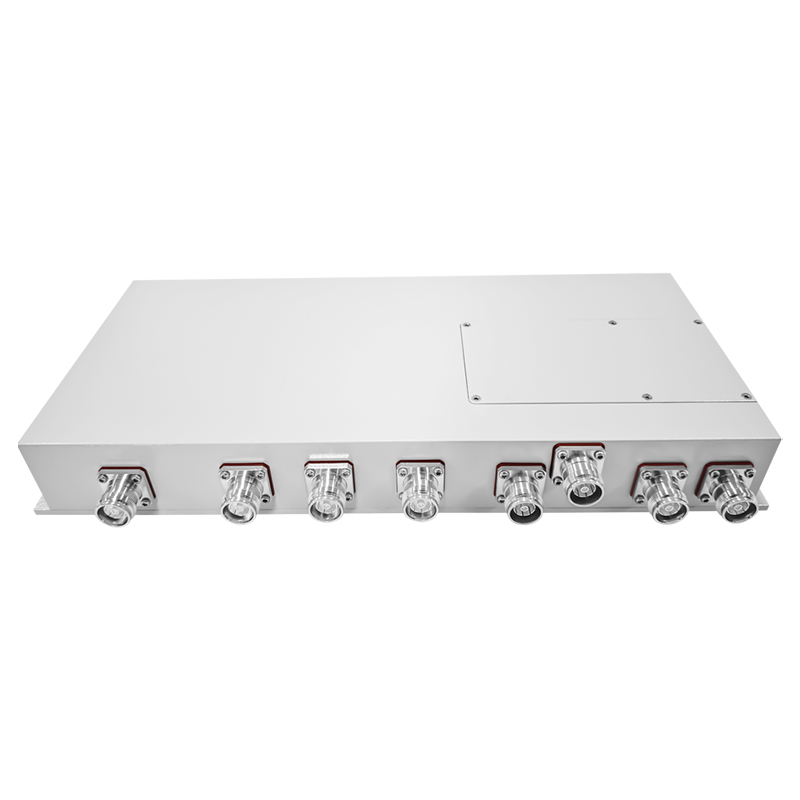

Outline Drawings:

Octa Band Combiner



Our Advantages

Hefei Maniron Electronic And Technology Co.,Ltd.,established in 2002,located in Hefei National Hi-tech Industry Development Zone,is a leading manufacture of RF Components.

OEM services are offered.Maniron has a huge fellowship that is composed of many high-level technologists.We also has established a Research Insititution which is a cooperating with some famous universties in China.

Excelent engineers and profesional team

We also other passive components with Low PIM values,such as -150dBc,160dBc,161dBc etc.
