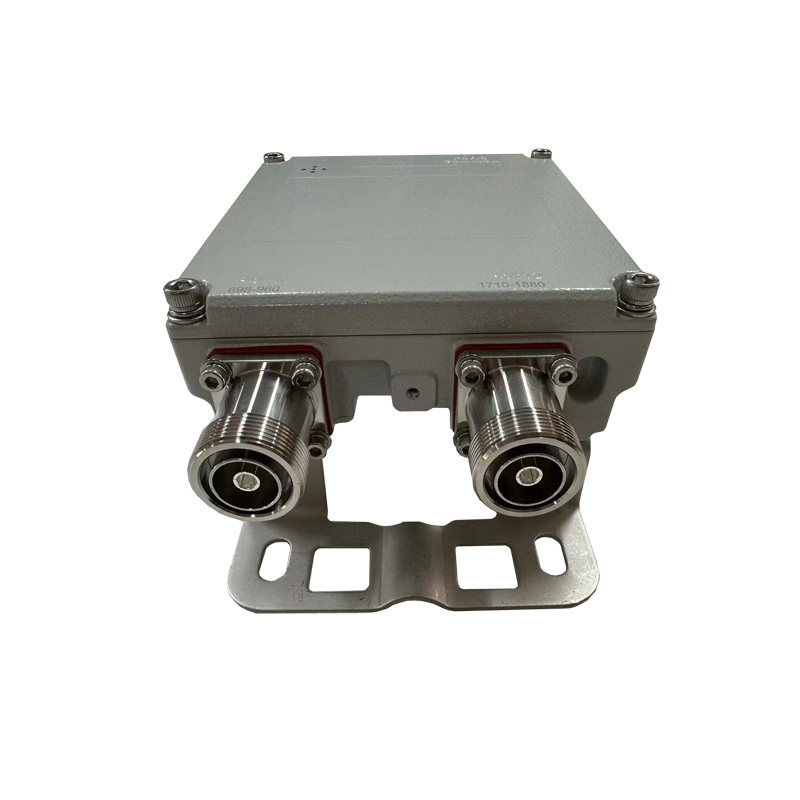

698-960/1710-1880MHz Single Unit Diplexer with DIN Female Connector Low PIM -160dBc

This Single Unit Diplexer covers frequency 698-960, 1710-1880MHz for 5G, Low PIM, high isolation, low loss. It's easy for installation.
  • Item NO.:

    MDC-0918-DF-160
  • Product Orgin:

    China
  • Brand:

    Maniron
  • Shipping Port:

    Shanghai/Shenzhen/Guangzhou
  • Color:

    Grey
  • Products Details

Product Name

698-960/1710-1880MHz Single Unit Diplexer is for outdoor with high performance.


Product Features

◆Compact, low weight

◆Low PIM

◆High reliability

◆Simple installation

Technical &Mechanical Specifications

                        Product Name

                                                         Dual-Band Combine

Frequency Band(MHz)

                 698-960/1710-1880

VSWR
≤1.25
Rejection

≥50dB

Insertion Loss(dB)

≤0.5dB

Connectors type DIN female
Impedance
50 Ohm
Power/Avg 100W

Lightning Protection

3kA; 10/350 μs pulse

PIM(dBc)
≤-160@2×43dBm
IP Rate
65
Operating Temp. (℃)

-20℃ to +55℃

Size(mm)

162.5 x 140x 51.5mm

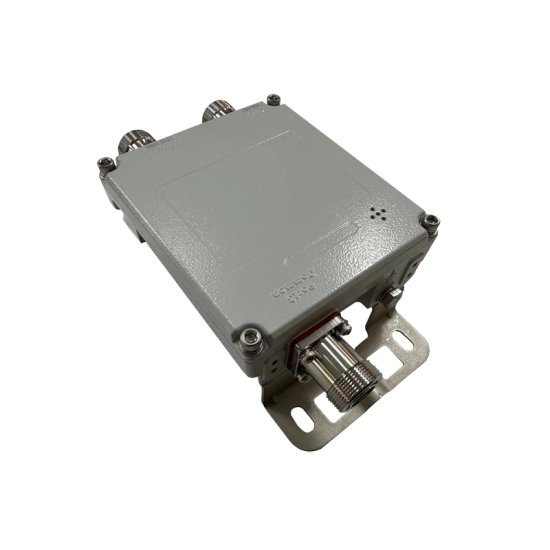

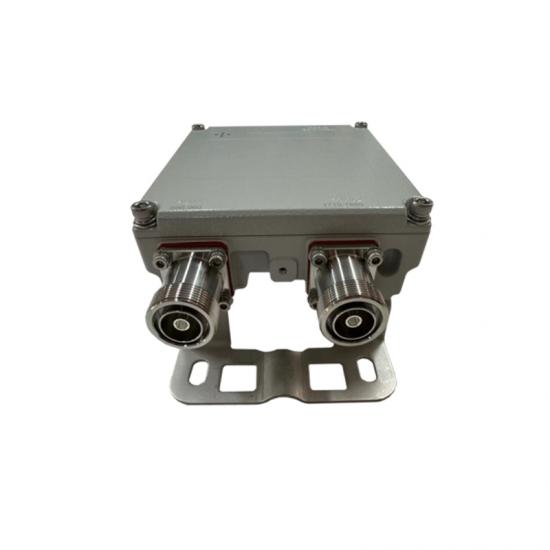

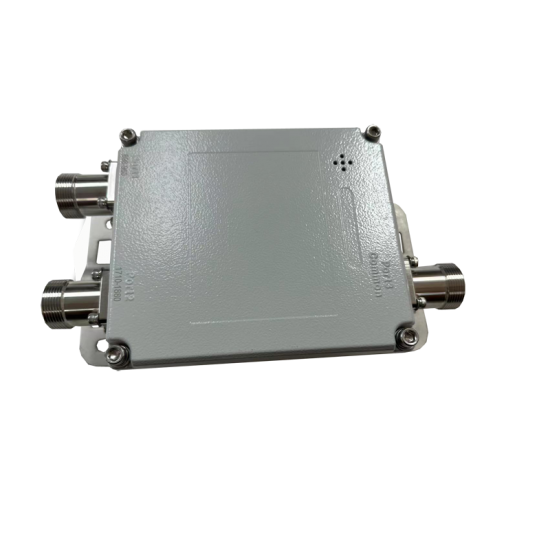

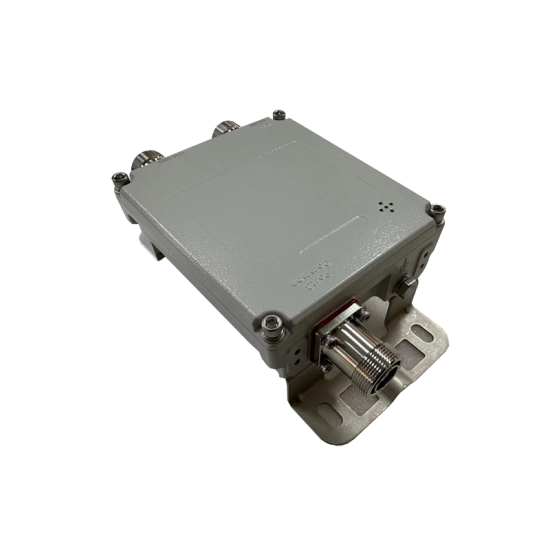

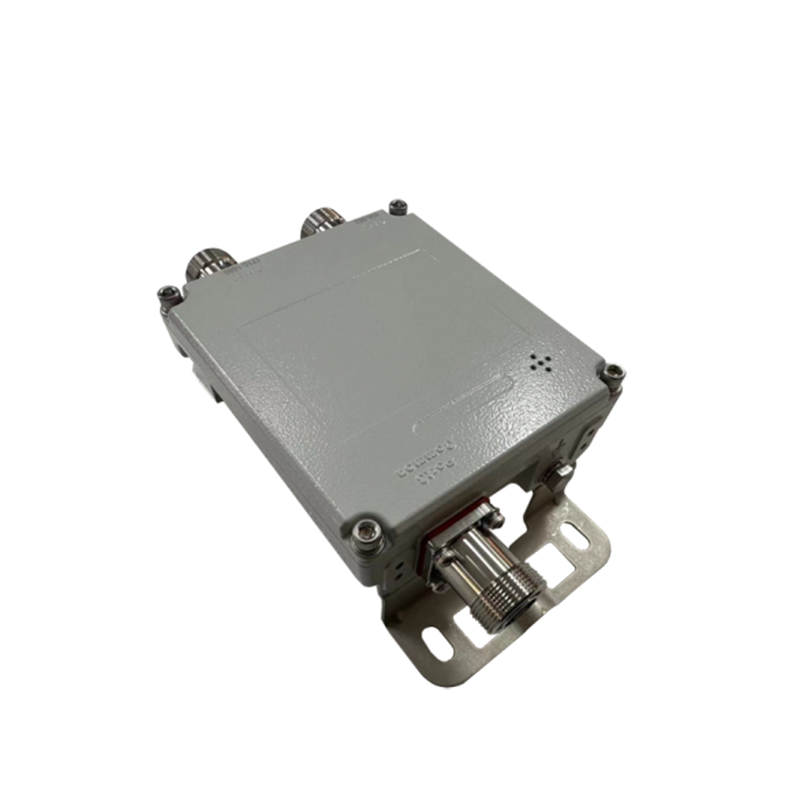

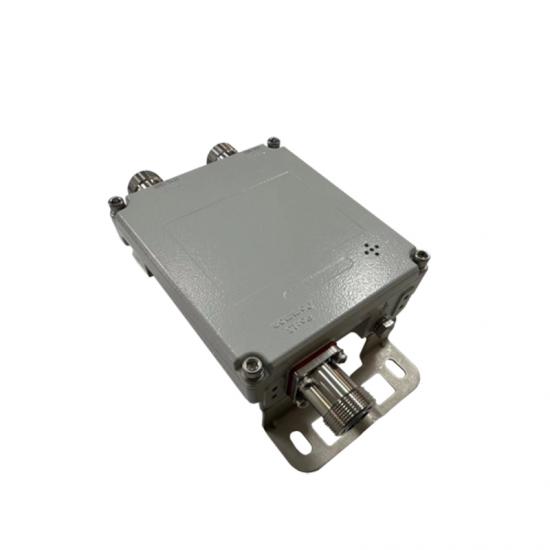

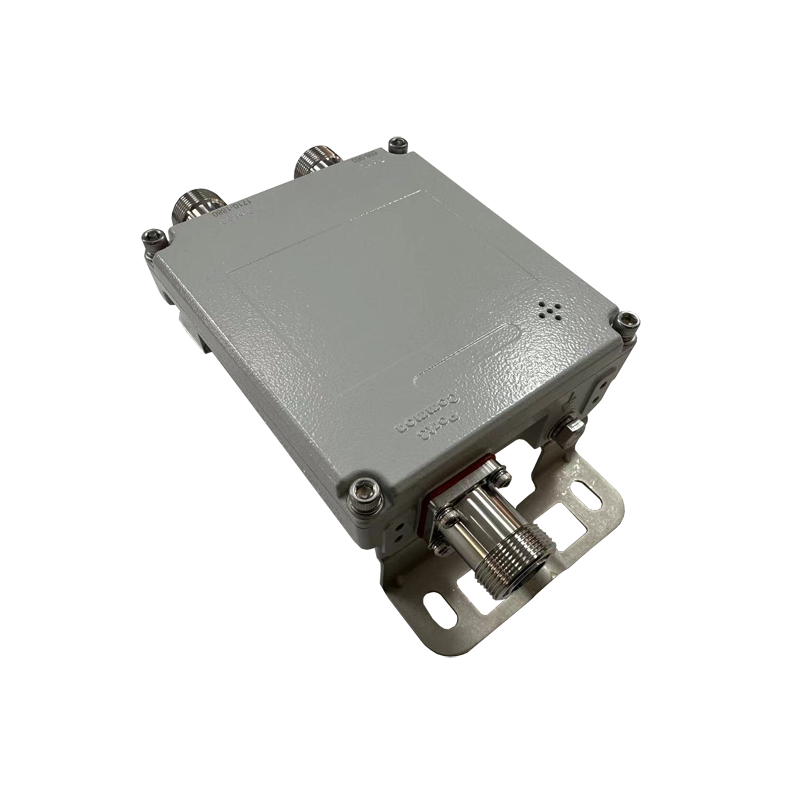

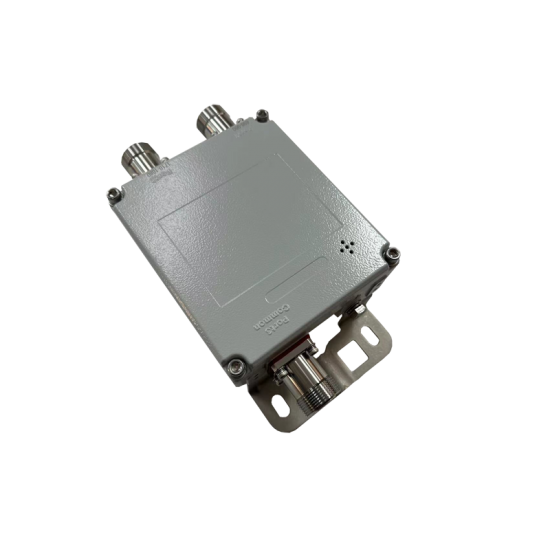

Outline Pictures:
