769-775/799-816/851-861MHz RF Bandpass Filter with N female connector

The Filter covers frequency from 769-775/799-816/851-861MHz which is in high rejection with N Male/Female Connector

Item NO.:
YT-780-FL-150dBc
Lead Time:
According to quantity
Product Orgin:
Hefei ,China
Brand:
Maniron
Shipping Port:
Shanghai,shenzhen,Guangzhou,Ningbo
Payment:
FOB,CIF
Color:
Grey

Inquiry now

Products Details

Product Name

RF Bandpass Filter

Product Features

◆Compact, Low Weight

◆High Reliability

◆ Simple Installation

This rf diplexer/duplexer covers frequency 769-775/799-816/851-861MHz,it is in high rejection.

Technical &Mechanical Specifications

Frequency	769-775/799-816/851-861MHz
Return Loss	≥18dB
Insertion loss	≤2.9dB
Rejection	≥90dB@DC-817MHz&873-4000MHz
Power handling	150 W Avg
Impedance	50 Ohm
Connectors type	N female
Operating temperature Range	0 to 60
Relative humidity	5%-95%
Applications	IP65
Connector Type	NM/NF
Outer Dimension(mm)	22020049

Pictures

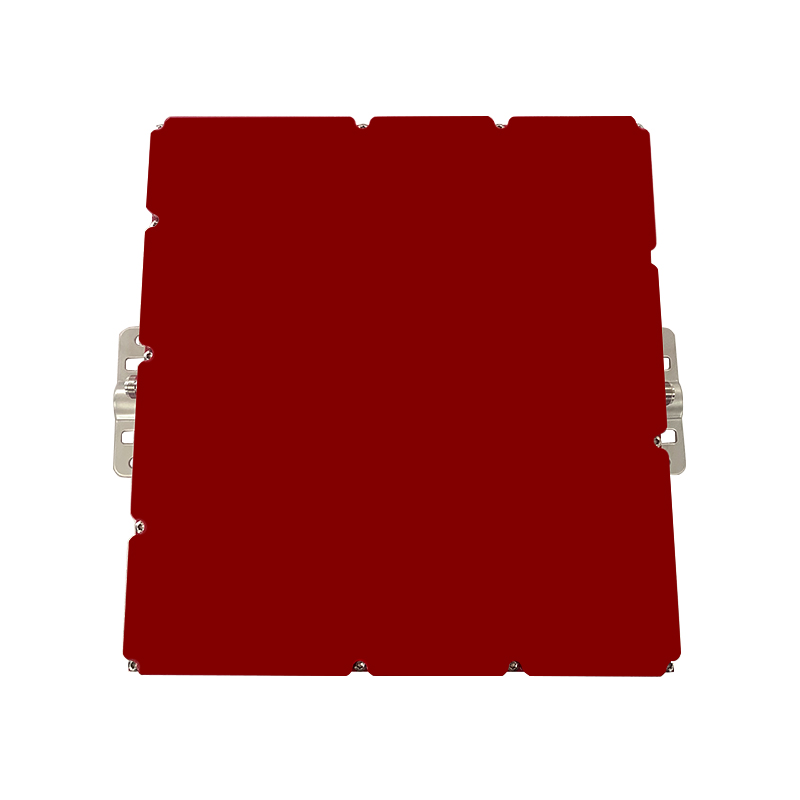

RF Bandpass Filter
