821-869MHz N type connector IP65 RF Cavity Filter

IP65 RF Cavity Filter is widely used in Public security,fire fighting,emergency system and other communication industries.
  • Item NO.:

    MNF-821869-OA2-70dB
  • Product Orgin:

    China
  • Shipping Port:

    Shanghai/Ningbo/Shenzhen
  • Products Details

Product Name

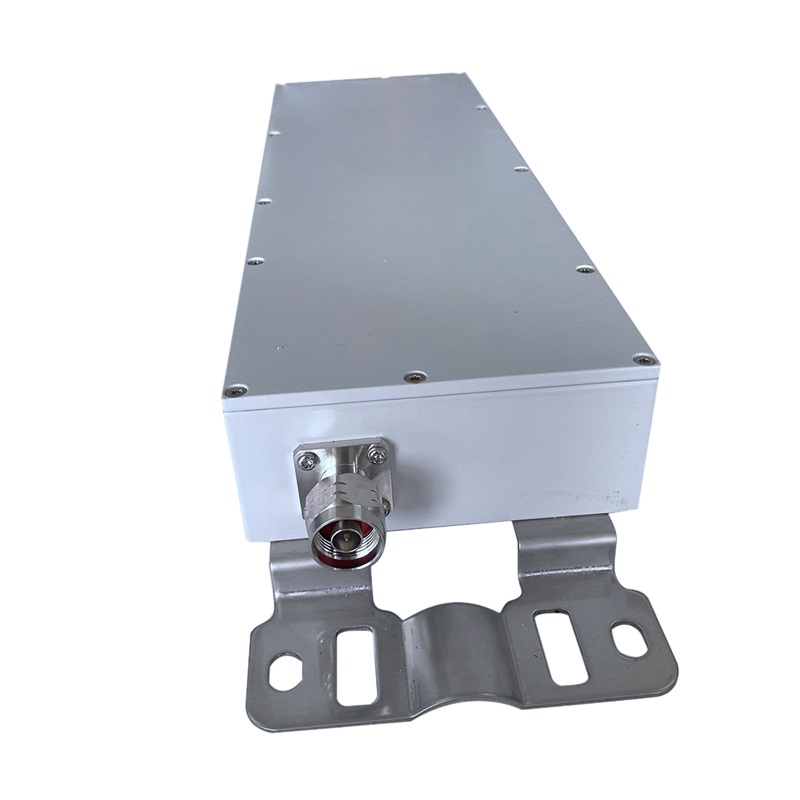

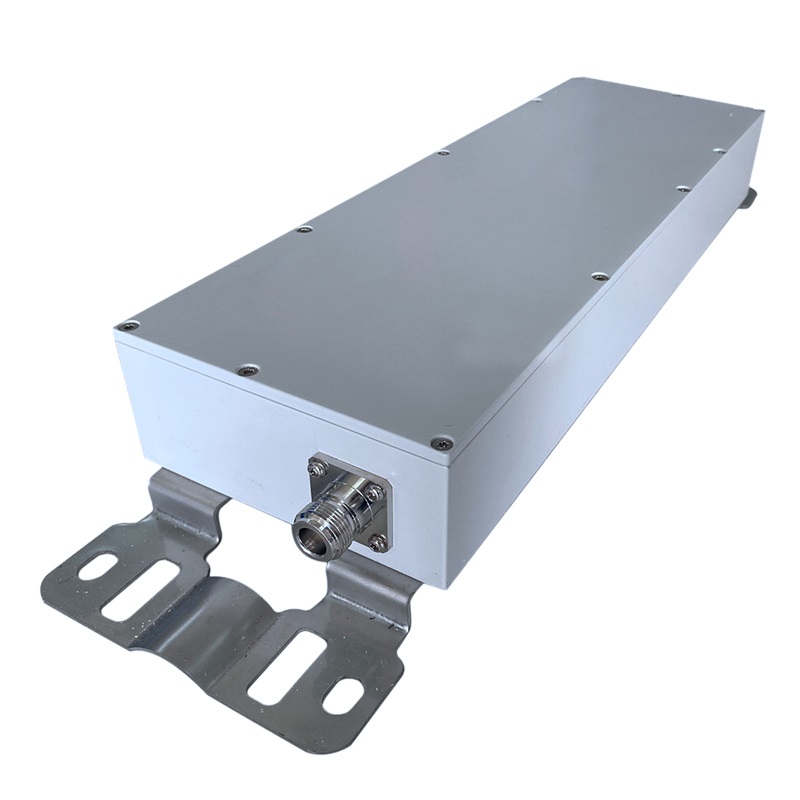

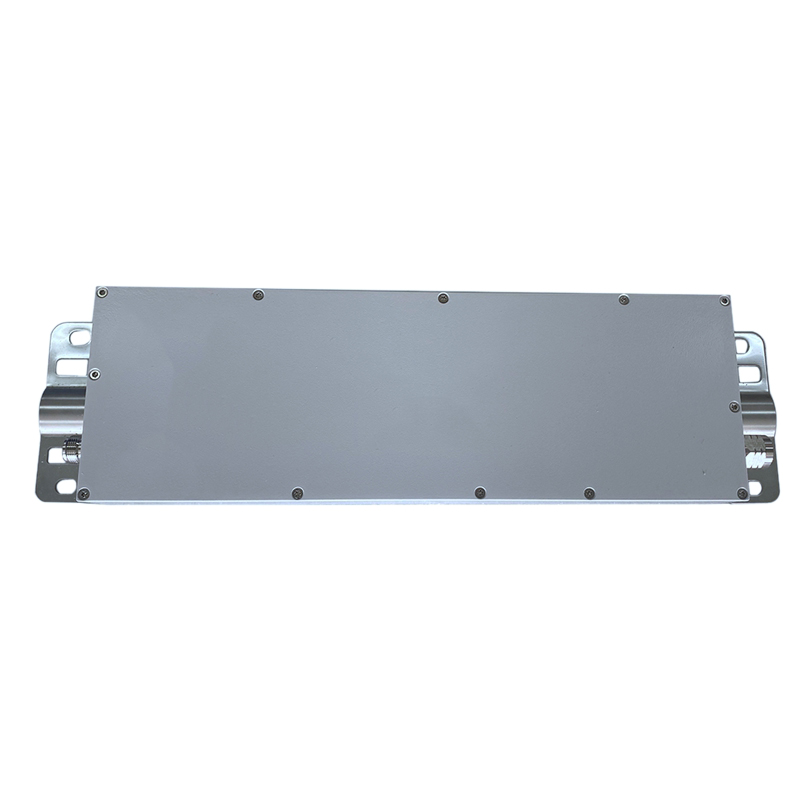

RF Bandpass Filter(821-869MHz,N-Male/N-Female,IP65)

N type Cavity Filteris wide Frequency Band and Waterproof IP67 is used for large data acquisition system. Filter microwave signals and extract useful signals.


This Bandpass filter has a pass band return loss of over 20 dB and a band-reject insertion loss of over 70 dB above and below the passband. It provides optimum filtering with a sharp cutoff and notched response.




Product Features

◆ Wide Frequency Band 821-869MHz

◆ 2G/3G/4G/LTE Coverage

◆ High reliability

◆ Compact,Low weight

◆ widely used in public security, fire fighting, emergency system and other communication industries.



Technical &Mechanical Specifications


Model No.

MNF-821869-OA2-70dB

Frequency Range (MHz)

CH:821-869MHz

Insertion Loss(dB)

≤2.0dB

Return Loss

≥18dB

Rejection(dB)

≥70dB@DC-817MHz & 873-4000MHz

Power Handling

150W  Average

Impedance

50 ohms

Operating Temperature Range

0℃to +60℃

Storage Temperature Range

-40℃to +85℃

Relative humidity

5%-95%

Connector Type

N-Male/N-Female

Waterproof Grade

IP65

Outer Dimension(mm)

354*113*49

Finish

As your Requirement

Packing

1 Pce in box

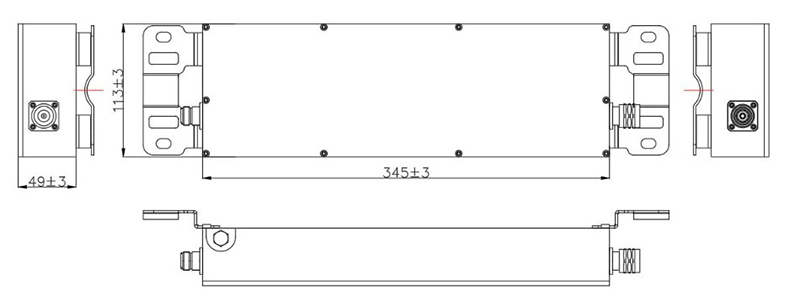

Mechanical Drawing



821-869MHz RF Cavity Filter
