821-869MHz RF Bandpass Filter with 90dB Isolation

The Filter covers frequency from 821-869MHz which is in high rejection 90dB with N Male/Female Connector
  • Item NO.:

    YT-821869-OA2-90dB
  • Lead Time:

    According to quantity
  • Product Orgin:

    Hefei ,China
  • Brand:

    Maniron
  • Shipping Port:

    Shanghai,shenzhen,Guangzhou,Ningbo
  • Payment:

    FOB,CIF
  • Color:

    Grey
  • Products Details

Product Name

821-869MHz RF Bandpass Filter with 90dB Isolation


Product Features

◆Compact, Low Weight

◆High Reliability

◆Simple Installation


This rf diplexer/duplexer covers frequency 821-869MHz,it is in high rejection 90dB with 150W Power.


Technical &Mechanical Specifications

Frequency
821-869MHz
Return Loss ≥18dB
Insertion loss ≤2.9dB
Rejection
≥90dB@DC-817MHz&873-4000MHz
Power handling
150 W Avg
Impedance 50 Ohm
Connectors type N female
Operating temperature Range 0 to 60
Relative humidity 5%-95%
Applications IP65
Connector Type
NM/NF
Outer Dimension(mm)
220*200*49


Pictures

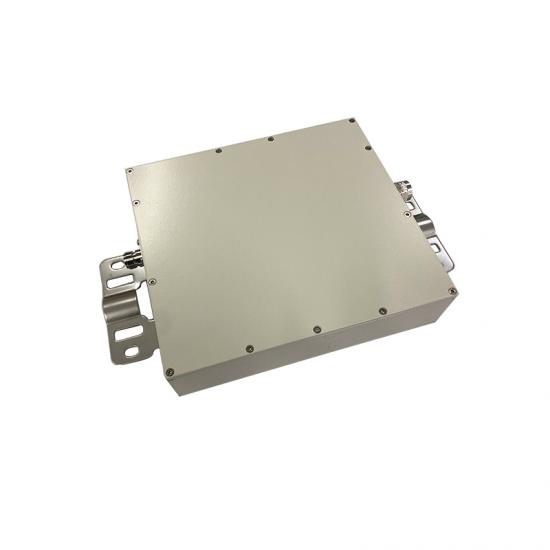

821-869MHz RF Bandpass Filter

821-869MHz RF Bandpass Filter


FEATURES

  • Low insertion loss & high return loss
  • High Isolation value
  • OEM and ODM is available

More details,pls contact us,Thanks in advance
