863 to 867MHz Low Insertion High Rejection RF Cavity Filter

100W RF Bandpass with frequency 863-867MHz.Filter is small in size, light in weight, excellent in performance and reliable in reliability.
  • Item NO.:

    MNF-863-40-NF
  • Product Orgin:

    China
  • Brand:

    Maniron
  • Shipping Port:

    Shanghai/Shenzhen
  • Color:

    Grey
  • MOQ:

    1
  • Products Details

Product Name

100W RF Bandpass Filter (863-867MHz, N-male/Female)

RF Bandpass Filter is can improve the input selectivity of receivers and amplifiers &increase the isolation of transmitters, whose re-spective antennas are mounted close together
100W RF Filters are Narrow pass band range with low insertion loss, high stop band attenuation.


Product Features

◆ Wide Frequency Band

◆ 2G/3G/4G/LTE Coverage

◆ High reliability

◆ Compact,Low weight

◆ Widely used for In-building Solutions



Technical &Mechanical Specifications


Model No.

MNF-863-40-NF

Frequency Range(MHz)

863-867MHz

Insertion Loss(dB)

≤3.0dB

 Rejection(dB)

≥40dB@869-1100MHz

Impedance(ohms)

50

Input power(W)

100 max

Connector

N-Male/Female

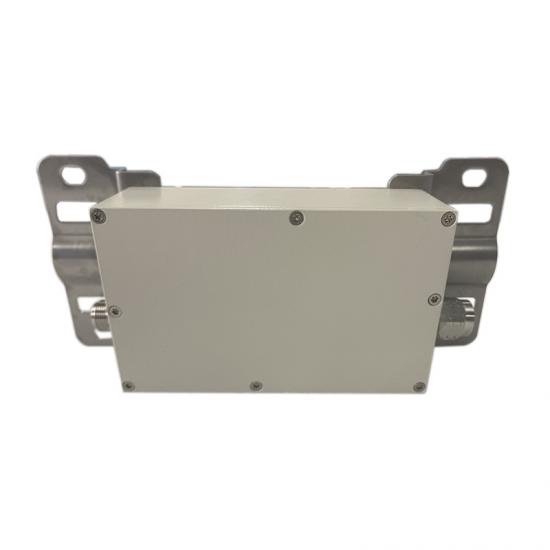

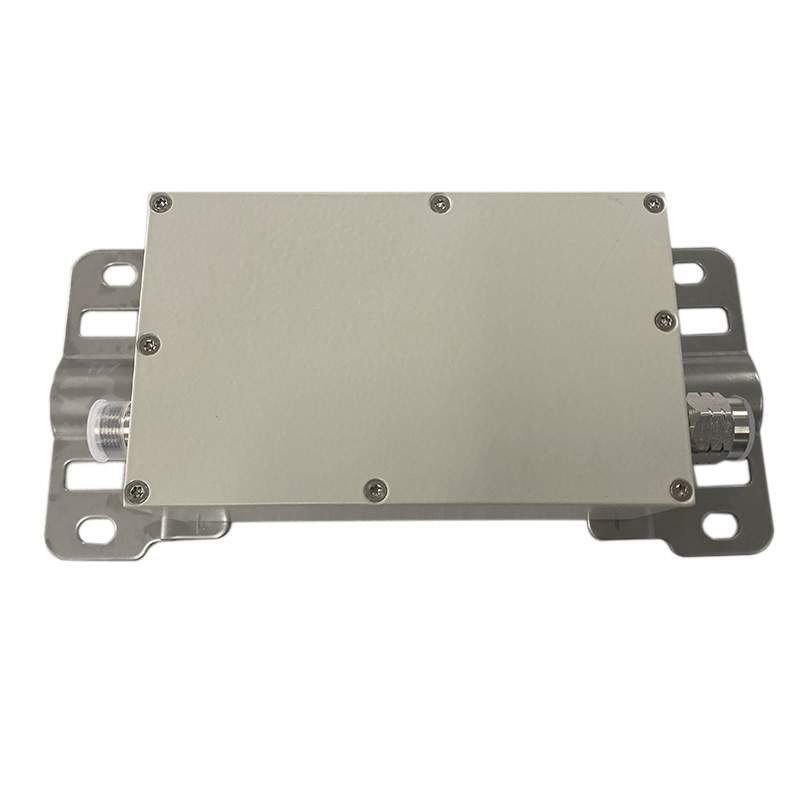

Product Photos
