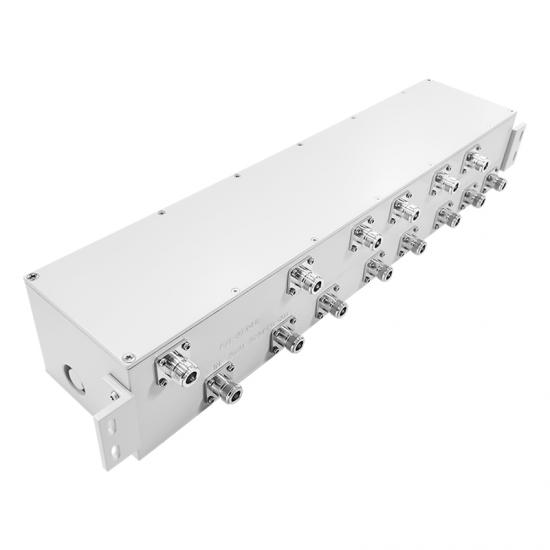

7 In 7 Out Band Pass Cavity Filter

Center

Frequency(F0)

780.5 MHz

881.5 MHz

951.5 MHz

1842.5 MHz

2140 MHz

2400MHz

2655 MHz

Bandwidth

45 MHz (758

to 803 MHz)

25 MHz (869

to 894 MHz)

17 MHz (943

to 960 MHz)

75 MHz (1805

to 1880 MHz)

60 MHz (2110

to 2170 MHz)

200 MHz

(2300 to 2500 MHz)

70 MHz (2620

to 2690 MHz)

Pass Band

Insertion Loss

≤1.0dB max

@780.5

MHz

≤ 2.0dB @

758 – 803

MHz

≤1.0dB max

@881.5 MHz

≤ 2.0dB @ 869

– 894 MHz

≤1.0dB max

@951.5 MHz

≤ 2.0dB @

943 – 960

MHz

≤1.0dB max

@1842.5 MHz

≤ 2.0dB @

1805 – 1880

MHz

≤1.0dB max

@2140 MHz

≤ 2.0dB @

2110 – 2170

MHz

≤1.0dB max

@2400 MHz ≤ 2.0dB @

2300 – 2500 MHz

≤1.0dB max

@2655 MHz

≤ 2.3dB @

2620 – 2690

MHz

Return Loss

18dB min

Rejection

(Attenuation)

50 dB min

@F0±31MHz

(DC to 749

MHz. 811 to

3000 MHz)

50 dB min @

F0±31.5MHz

(DC to 850 MHz.

913 to 3000

MHz)

50 dB min

@F0±31.5MHz

(DC to 920

MHz. 983 to

3000 MHz)

50 dB min

@F0±52.5MHz

(DC to 1790

MHz. 1895 to

4000 MHz)

50 dB min

@F0±45MHz

(DC to 2095

MHz. 2185 to

4000 MHz)

60 dB min @ F0

± 200 MHz

(DC to 2200

MHz, 2600to

4000 MHz

70 dB min

@F0±53MHz

(DC to 2602

MHz. 2708 to

4000 MHz)

Impedance

50 ohm

Operating

Temperature

-20°C to +60°C

Power Handling

≤100W

Connectors

N - Female

Dimension-mm

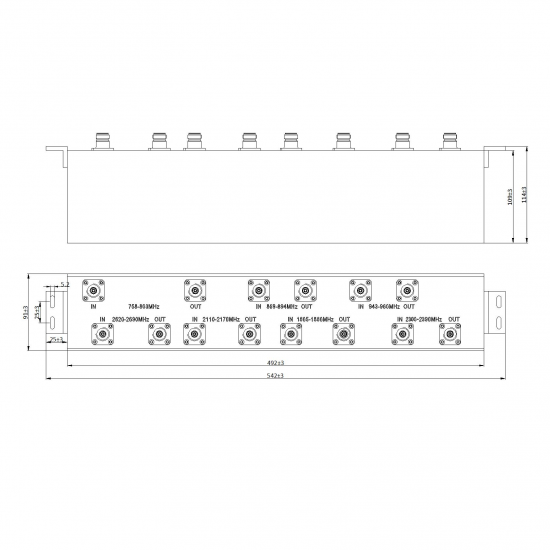

See Drawing

Weight

/

IP grade

IP67
