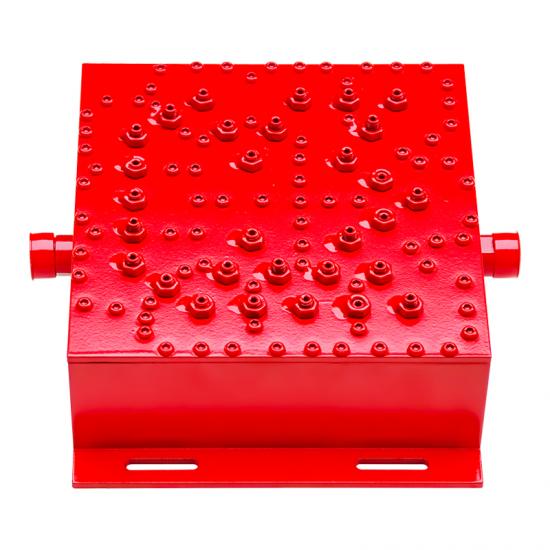

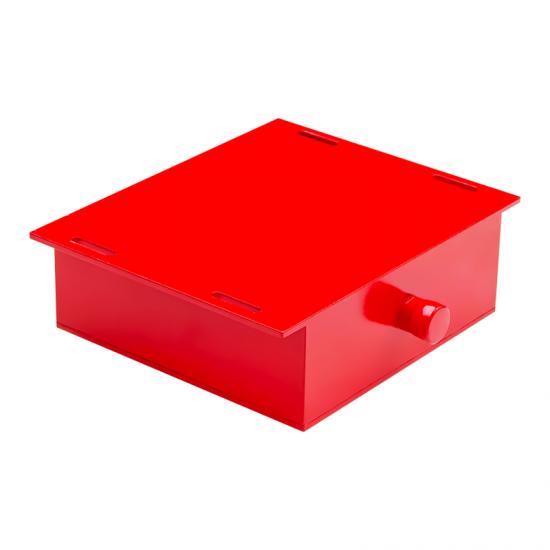

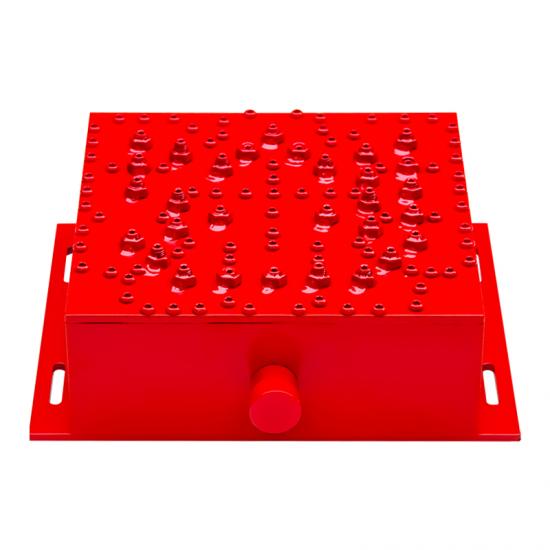

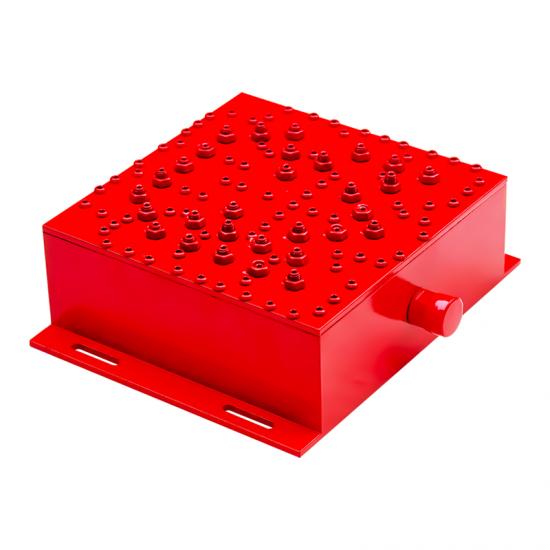

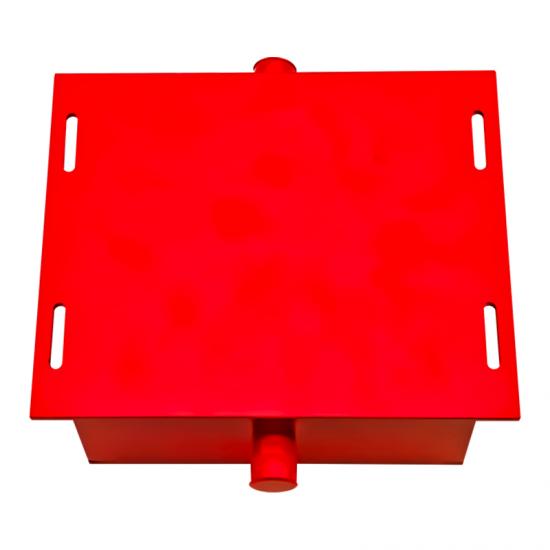

806-816/851-861MHz Low Insertion Loss RF Filter with N-Female For Indoor Building DAS

RF FilterRF Bandpass Filter covers frequency band 806-816/851-861MHz with N-Female For Indoor Building DAS.

Item NO.:
MNLF-811-NF
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Shenzhen/Guangzhou
Color:
Red
MOQ:
1

Inquiry now

Products Details

Product Name

806-816/851-861MHz RF Filter

Product Features

◆Compact, low weight

◆High reliability

◆Simple installation

Technical &Mechanical Specifications

Frequency	806-816/851-861MHz
VSWR	≤1.25
Insertion Loss	≤1.5
Isolation	≥30db@826-841MHz
Impedance	50 Ohm
Connectors Type	N Female

Our Advantages

Hefei Maniron Electronic And Technology Co.,Ltd.,established in 2002,located in Hefei National Hi-tech Industry Development Zone,is a leading manufacture of RF Components.

OEM services are offered.Maniron has a huge fellowship that is composed of many high-level technologists.We also has established a Research Insititution which is a cooperating with some famous universties in China.

Excelent engineers and professional team.

Leave Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Subject : 806-816/851-861MHz Low Insertion Loss RF Filter with N-Female For Indoor Building DAS
Im interested in your "806-816/851-861MHz Low Insertion Loss RF Filter with N-Female For Indoor Building DAS", please inform me more detailed product information and price. Thankyou!
