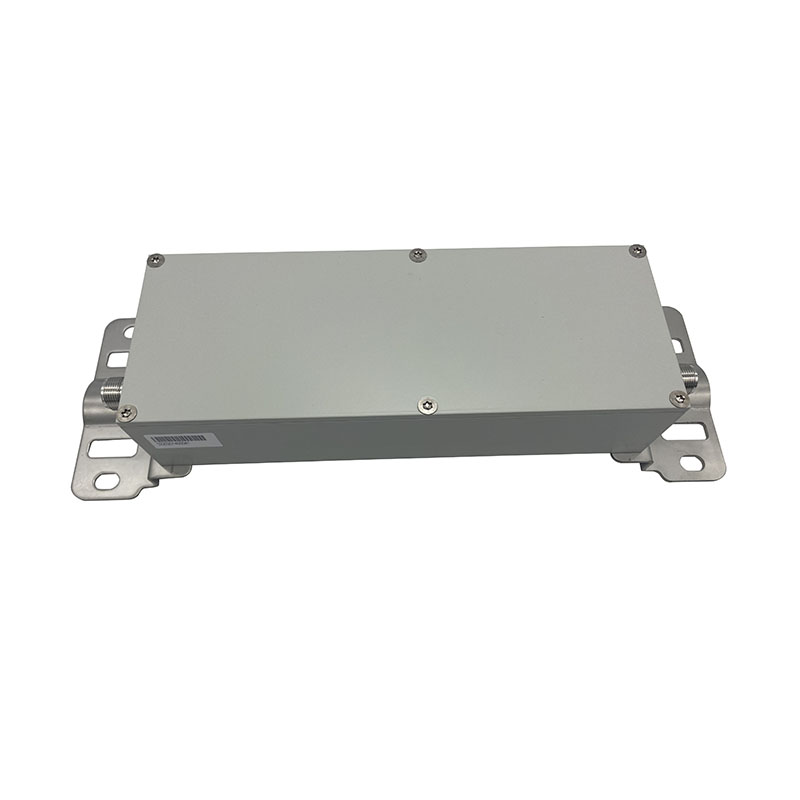

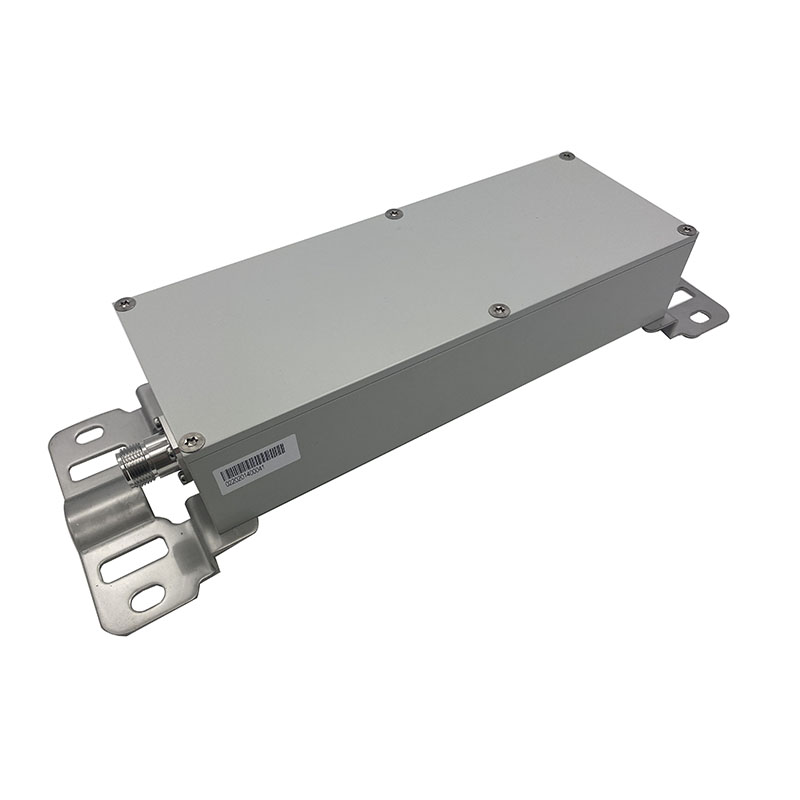

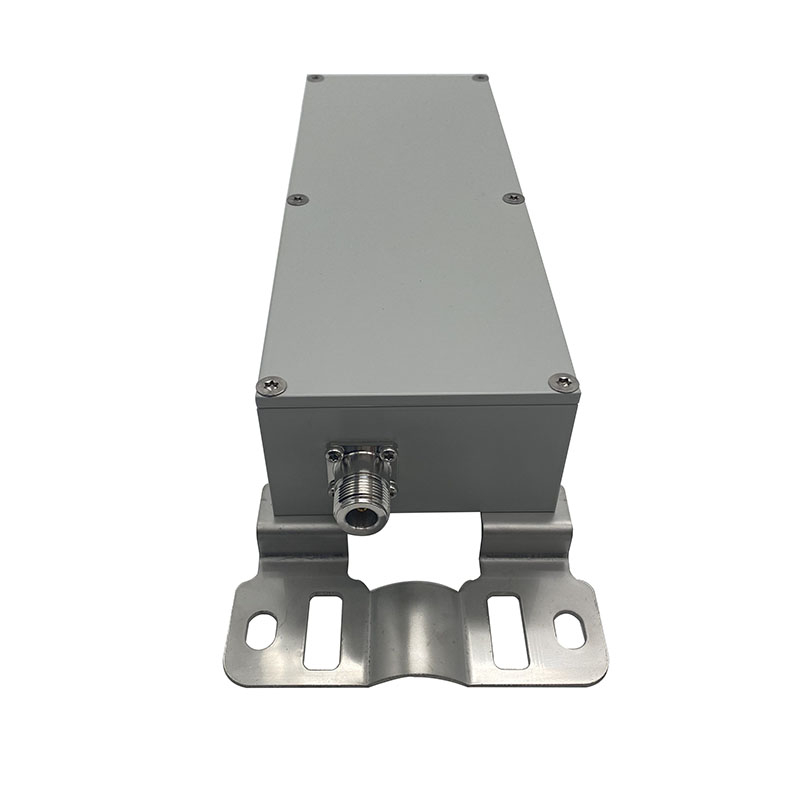

RF Cavity Filter (902.3-927.5MHz,N-Female/Female,IP67)
N type Cavity Filter is wide Frequency Band and Waterproof IP67 is used for large data acquisition system. Filter microwave signals and extract useful signals.
This Bandpass filter has a passband return loss of over 20 dB and a band-reject insertion loss of over 60 dB above and below the passband. It provides optimum filtering with a sharp cutoff and notched response.
Product Features
◆ Wide Frequency Band 902.3-927.5MHz
◆ 2G/3G/4G/LTE Coverage
◆ High reliability
◆ Compact,Low weight
◆ widely used in public security, fire fighting, emergency system and other communication industries.
Technical &Mechanical Specifications
Model No. |
MNF-NL0220-NF/F |
Frequency Range (MHz) |
902.3-927.5MHz |
Insertion Loss(dB) |
≤4.0dB |
Return Loss |
≥18dB |
Out of Band Rejection(dB) |
≥50dB@900MHz |
Out of Band Rejection(dB) |
≥50dB@930MHz |
Input Power |
50W max |
Impedance |
50 ohms |
Operating Temperature Range |
-10℃to +55℃ |
Storage Temperature Range |
-40℃to +85℃ |
Relative humidity |
5%-95% |
Input Connector |
N-Female |
Output Connector |
N-Female |
Waterproof Grade |
IP67 |
Outer Dimension(mm) |
237*88*47 |
Finish |
As your Requirement |
Packing |
1 Pce in box |

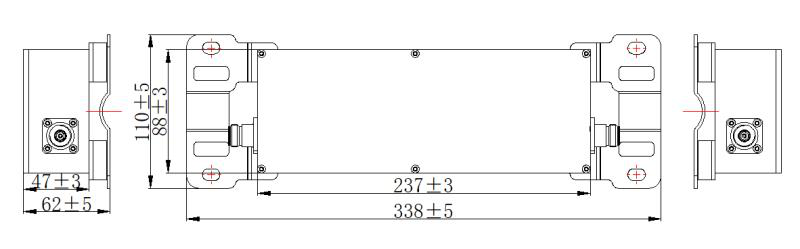

Mechanical Drawing
