SMA female type Cavity 2500-2700MHz bandpass filter for telecommunication

The Filter with Frequency 2500-2700 MHz,Power 50W, Low insterion loss, high isolation, SMA female type
  • Item NO.:

    MN-FP-2527-SF
  • Product Orgin:

    China
  • Brand:

    Maniron
  • Shipping Port:

    Shanghai/Shenzhen
  • Color:

    Red
  • Products Details

Product Name


RF cavity Filter(2500-2700MHz,N-Female)


It is a High Pass Filter with Frequency 2500-2700MHz,


N type Cavity Filteris wide Frequency Band and Waterproof IP67 is used for large data acquisition system. Filter microwave signals and extract useful signals.



Product Features

◆ Wide Frequency Band 758-775MHz

◆ 2G/3G/4G/LTE Coverage

◆ High reliability

◆ Compact,Low weight

◆ widely used in public security, fire fighting, emergency system and other communication industries.



Technical &Mechanical Specifications


Model No.

MN-FP-2527-SF

Frequency Range (MHz)

2500-2700MHz

Insertion Loss(dB)

0.5Max

Return Loss

≥ 18

Rejection(dB)

35dBc @ 0-2300MHz&2600-3000MHz

Power Handling

50

Impedance

50 ohms

Operating Temperature Range

-20°C to +65°C

Relative humidity

5%-95%

Connector Type

SMA-Female

Application

Indoor

Outer Dimension(mm)

47*70*21(exclude connector)

Packing

1 Pce in box

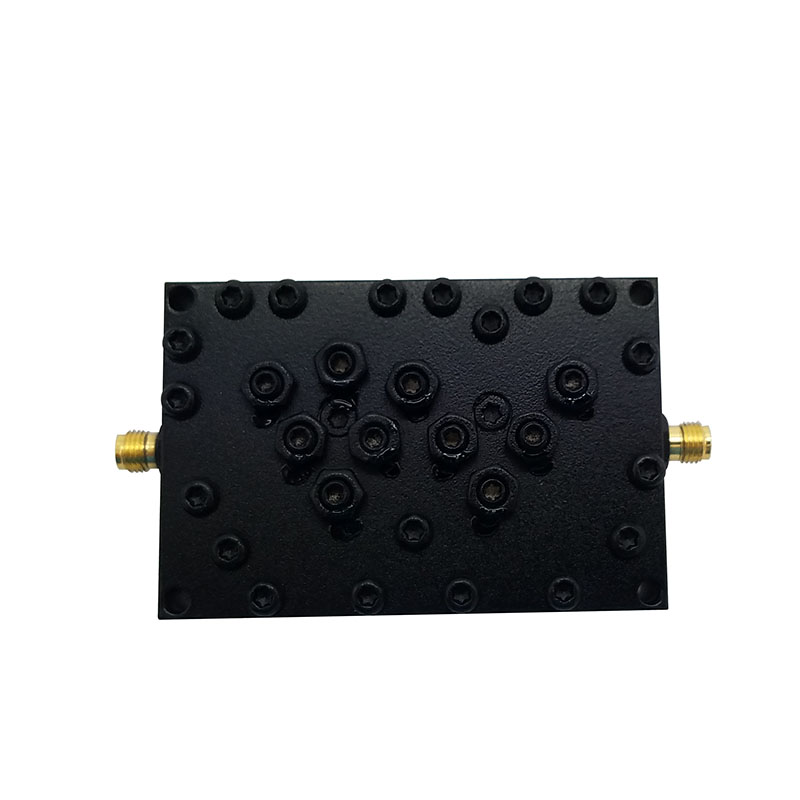

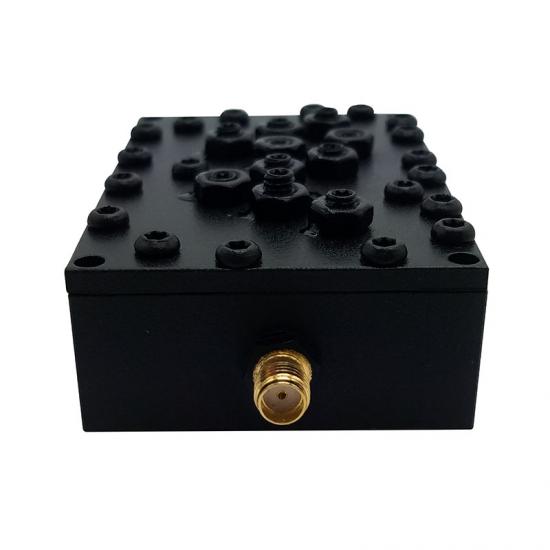

Real Photos
