DC-6GHz 7/16 Straight Male Connector for 1/2" Super Flexible RF Cable

RF Connector, DIN Male for 1/2”Super FlexibleRFCable with Low PIM -155dBc

Item NO.:
MA-716M-12S
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Ningbo/Shenzhen

Inquiry now

Products Details

Product Name

DIN Male for 1/2” Super Flex Cable is designed to meet the rising performance needs of mobile network equipment

Product Features

RF Connector is in low PIM,Low VSWR and excellent impedance matching,High frequency.From DC to 6GHz.It's widely used for IBS DAS.

Technical &Mechanical Specifications

Electrical Characteristics
Characteristic Impedance		50 ohm
Insulation Resistance		≥5000MΩ
Centre contact resistance		≤0.40mΩ
Outer contact resistance		≤0.20 mΩ
Dielectric Withstanding Voltage		2000V rms(AC)
Insertion Loss	@690-960 MHz	≤0.08dB
	@1700-2700 MHz	≤0.12dB
	@2700-3000 MHz	≤0.15dB
	@3000-5000 MHz	≤0.20dB
VSWR	@690-960 MHz	≤1.10
	@1700-2700 MHz	≤1.13
	@2700-3000 MHz	≤1.15
	@3000-5000 MHz	≤1.20
PIM3	(@2x20W,1800MHz,staticstate) ≤-155dBc
Material and plating
Socket-Centre contact		Brass/Sliver Plated
Outer contact & Body		Brass / Trimetal Plated
Dielectric		TPX
Gasket		Silicon Rubber
Nut		Brass / Nickel Plated

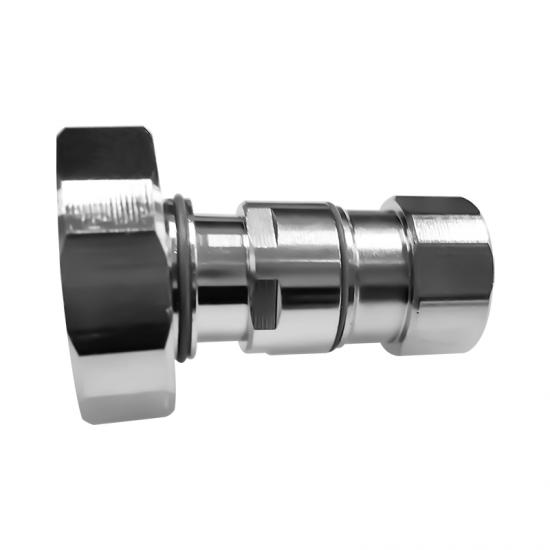

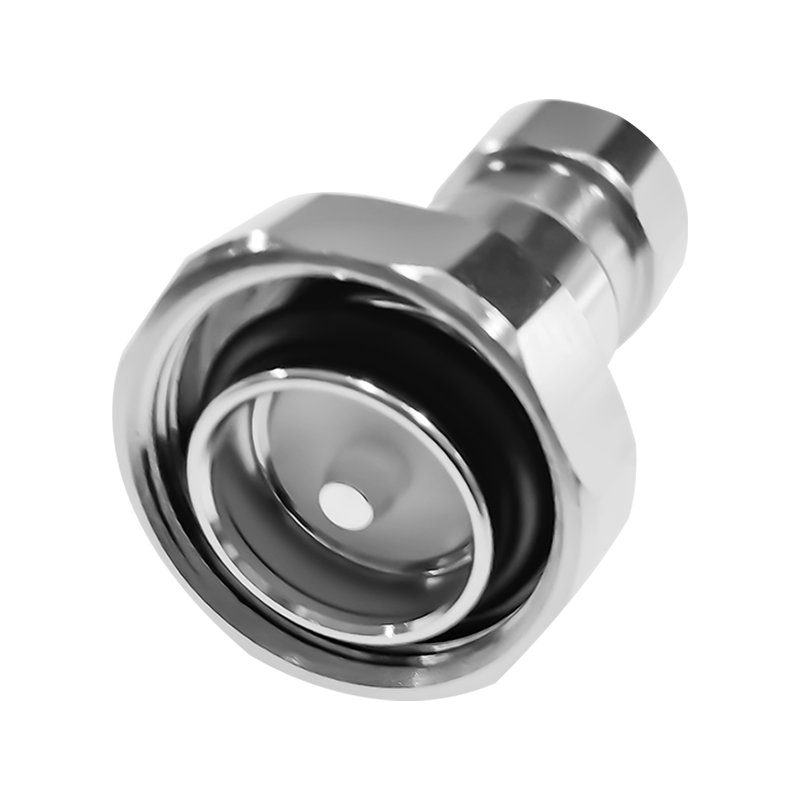

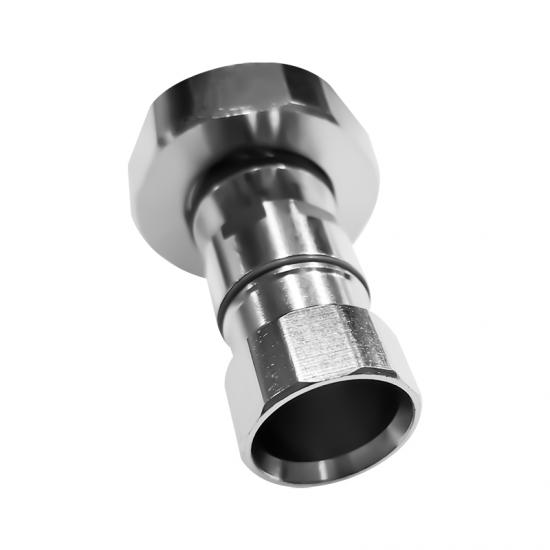

Product picture

OUR SERVICES

1. Professional skills support for RF Passive Products
2. OEM/ODM services is available.
3. 24 hours you can contact our salesman and engineer.
4. We will try our best to provide support whatever you need and we can do.

NOTE:All the specifications can be changed as customer's requirment. Our company has a variety of products to choose
