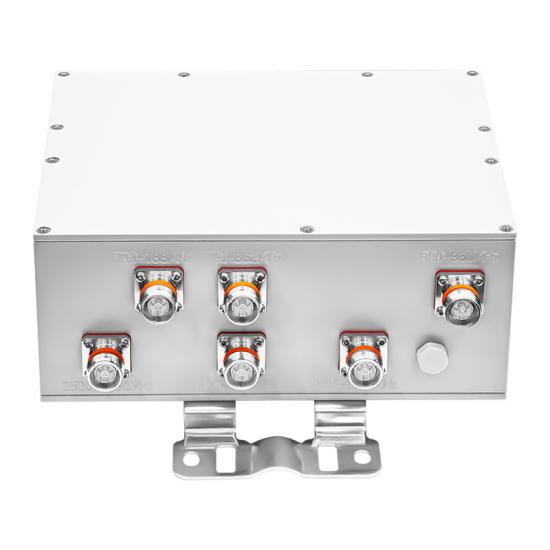

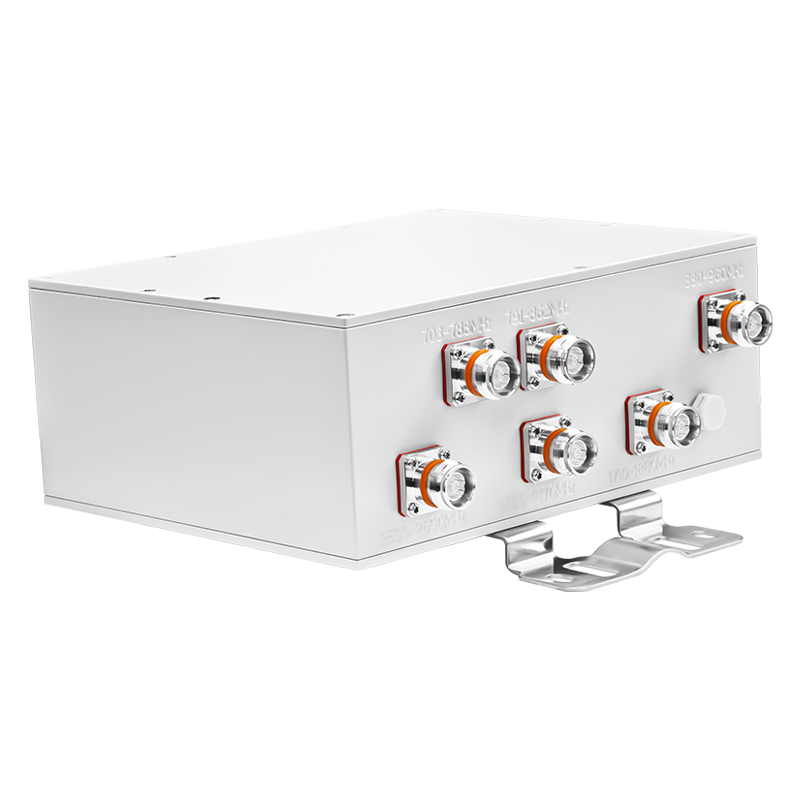

Outdoor Hexagon-band Combiner
Outdoor Hexagon-band Combiner Outdoor Hexagon-band Combiner Outdoor Hexagon-band Combiner

Outdoor Hexagon-band Combiner Low PIM Combiner -153dBc 703-2690MHz

Wide Frequency Band 703-788/791-862/880-960/1710-1880/1920-2170/2500-2690MHz 6 Band Combiner widely used for In-building Solutions

  • Item NO.:

    MNC-703/2690-6-43F-1

  • Product Orgin:

    China

  • Brand:

    Maniron

  • Shipping Port:

    Shanghai/Shenzhen/Guangzhou

  • Color:

    Grey

  • MOQ:

    1
Inquiry now
  • Products Details

Product Name

703-788/791-862/880-960/1710-1880/1920-2170/2500-2690MHz 6 Band Combiner




Product Features

◆Compact, low weight

◆Low PIM

◆High reliability

◆Simple installation


Technical &Mechanical Specifications

 Model
MNC-703/2690-6-43F-153
 Freq-MHz

Port1：703-788MHZ

Port 2: 791-862MHz

Port 3: 880-960MHz

Port 4: 1710-1880MHz

Port 5: 1920-2170MHz

Port 6: 2500-2690MHz

 Insertion Loss-dB

≤1.5 dB@703-862MHz

≤0.5 dB@880-2690MHz

 Isolation-dB

≥35dB@703-960MHz

≥50dB@1710-2690MHz

 VSWR
≤1.30
 PIM 3rd-dBc
≤ -153dBc
 Average Power-W
200W
 Impedance-Ω
50
 Connector
4310-female
 Temp(deg)
-40~+65
 Applications
IP67

Outline Drawings:




Our Advantages

Hefei Maniron Electronic And Technology Co.,Ltd.,established in 2002,located in Hefei National Hi-tech Industry Development Zone,is a leading manufacture of RF Components.

OEM services are offered.Maniron has a huge fellowship that is composed of many high-level technologists.We also has established a Research Insititution which is a cooperating with some famous universties in China.

Excelent engineers and profesional team

We also other passive components with Low PIM values,such as -150dBc,160dBc,161dBc etc.
