Product Overview

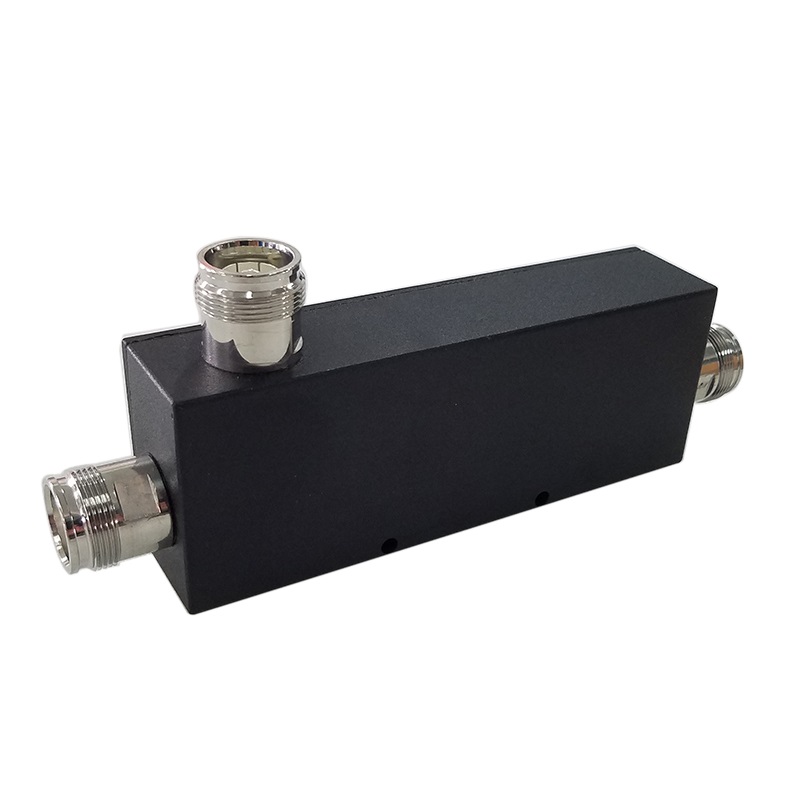

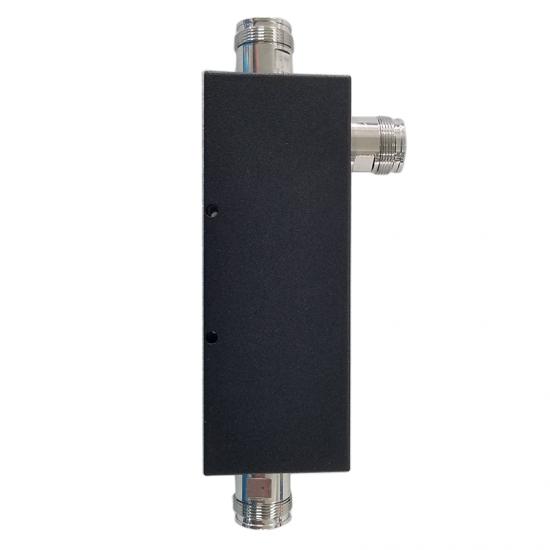

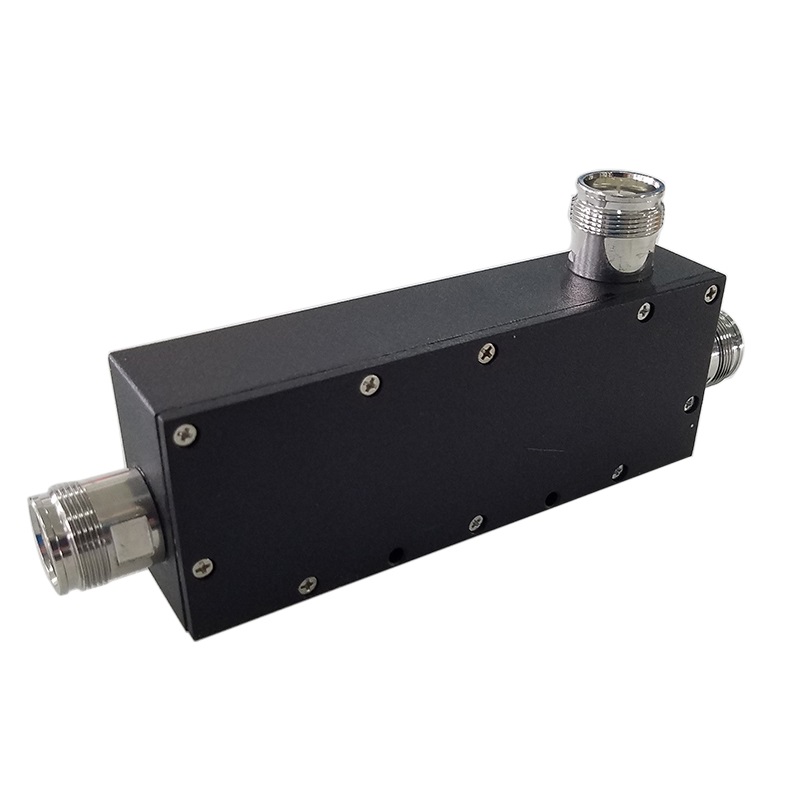

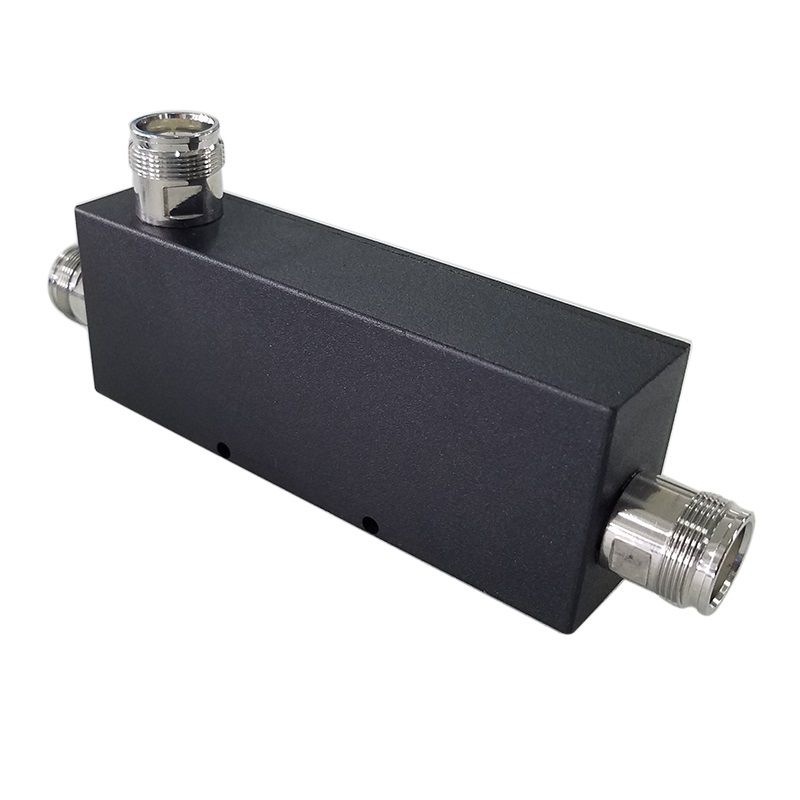

The MC-738-4F-5 Series is a high-performance directional coupler specifically engineered for modern 5G BTS, DAS, and IBS infrastructure. Featuring an ultra-wide frequency coverage from 698MHz to 3800MHz, it provides a future-proof solution for 5G NR, 4G LTE, and legacy networks. With a compact design, a low PIM rating of ≤-150dBc, and IP65 protection, this series delivers exceptional signal precision and reliability for both high-density indoor and demanding outdoor applications.
Technical & Mechanical Specifications
| Parameters | Specification Details | |||||
|---|---|---|---|---|---|---|
| Model Number | MC-738-05/06-4F-5 | MC-738-07/08-4F-5 | MC-738-10/12-4F-5 | MC-738-13/15-4F-5 | MC-738-20-4F-5 | MC-738-30-4F-5 |
| Coupling (dB) | 5 / 6 | 7 / 8 | 10 / 12 | 13 / 15 | 20 | 30 |
| Insertion Loss (dB) | ≤2.2 / ≤2.05 | ≤1.9 / ≤1.8 | ≤1.2 / ≤1.2 | ≤1.2 / ≤0.9 | ≤0.8 | ≤0.8 |
| Accuracy (dB) | ±1.3 | ±1.3 | ±1.6 | ±1.6 / ±1.7 | ±1.8 | ±2.0 |
| Isolation (dB) | ≥20 / ≥21 | ≥22 / ≥23 | ≥25 / ≥27 | ≥28 / ≥30 | ≥35 | ≥45 |
| Frequency Range | 698-3800 MHz | |||||
| VSWR | ≤1.25 | |||||
| PIM (dBc) | ≤-150dBc @ 2x43dBm | |||||
| Average Power | 200W | |||||
| Impedance | 50 ohm | |||||
| Connector Type | N-Female | |||||
| Color | Black | |||||
| Operating Temp | -30°C to +65°C | |||||
| Application | Indoor or Outdoor (IP65) | |||||
| Net Weight | 0.23 kg | |||||
| Humidity Range | 5% - 95% | |||||
Frequently Asked Questions
- Q1: How does the 698-3800MHz frequency range benefit 5G deployment?
- A: This ultra-wideband coverage includes the 3.5GHz (n78) band, which is essential for global 5G NR networks. It allows a single system to handle everything from 700MHz (low-band 4G/5G) to high-speed 5G mid-band signals.
- Q2: What is the significance of -150dBc PIM in DAS systems?
- A: A low PIM (≤-150dBc) rating prevents the component from becoming a source of interference. This ensures cleaner signals, reduces dropped calls, and maintains higher data rates in multi-operator IBS environments.
- Q3: Can this coupler be installed in outdoor locations?
- A: Yes, it is rated at IP65, meaning it is dust-tight and protected against water ingress. Along with a wide temperature range, it is robust enough for both indoor venues and outdoor DAS deployments.
- Q4: How does high isolation (up to 45dB) improve system performance?
- A: High isolation ensures that signals from the main transmission line do not leak back into other paths, maintaining signal purity and protecting sensitive BTS equipment from unwanted reflections.
- Q5: Is this series compatible with high-power base stations?
- A: Definitely. With an average power rating of 200W, these couplers can safely handle the output from most standard BTS and high-power remote radio units (RRU) without failure.
