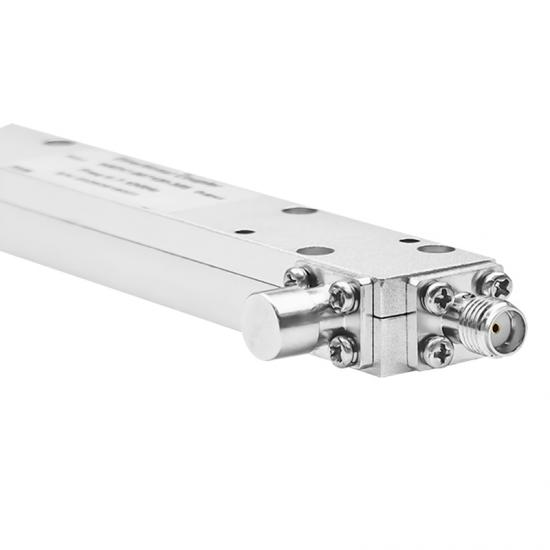

High Power Wideband Single Directional Coupler for Wireless Communication Infrastructure

High-performance broadband single directional coupler delivering exceptional directivity, low insertion loss, and reliable power handling for demanding RF and microwave applications.

Item NO.:
MDC-0.4-12.4G-30dB-N
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Guangzhou/Shenzhen
Color:
white

Inquiry now

Products Details

Product Name:

High Power Wideband Single Directional Coupler for Wireless Communication Infrastructure

Product Feature:

◆ Broad frequency coverage

◆ Low Insertion Loss & High Directivity

◆ Low Input & Output VSWR Performance

Technical &Mechanical Specifications:

Model No.	MDC-0.4-12.4G-30dB-NF
Frequency(GHz)	0.4-12.4
Coupling(dB)	30
Insertion Loss(dB)	≤0.8	≤1.2
Power Rating(W)	30
VSWR	≤1.5
Impedance(Ω)	50

Leave Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Subject : High Power Wideband Single Directional Coupler for Wireless Communication Infrastructure
Im interested in your "High Power Wideband Single Directional Coupler for Wireless Communication Infrastructure", please inform me more detailed product information and price. Thankyou!
