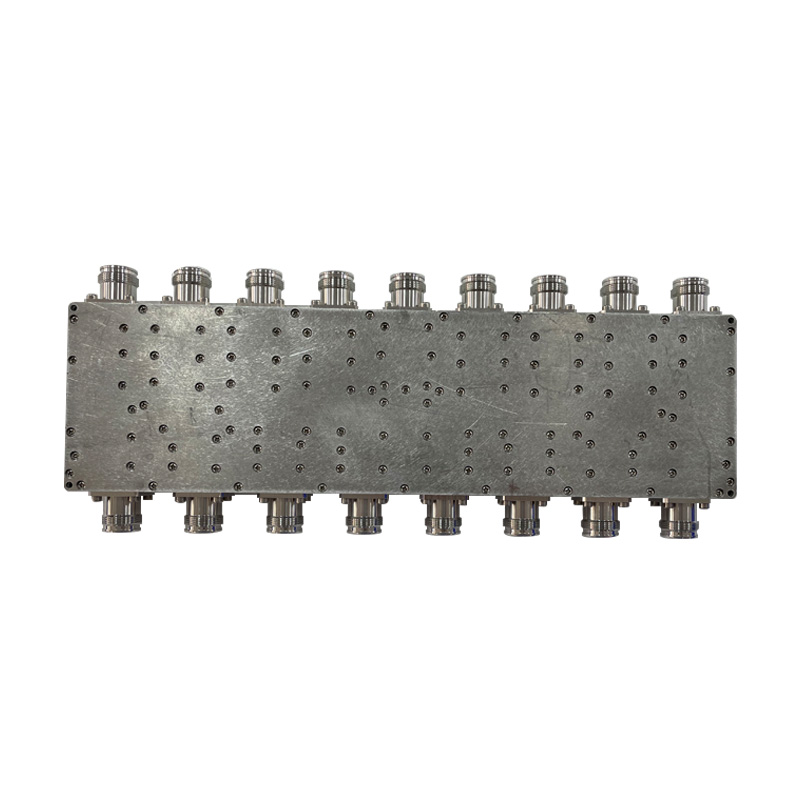

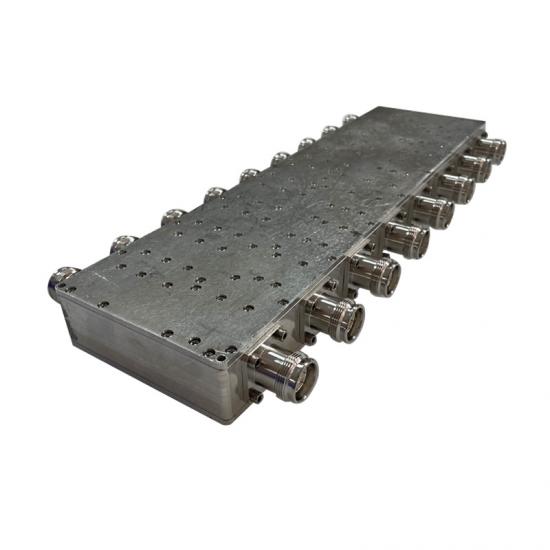

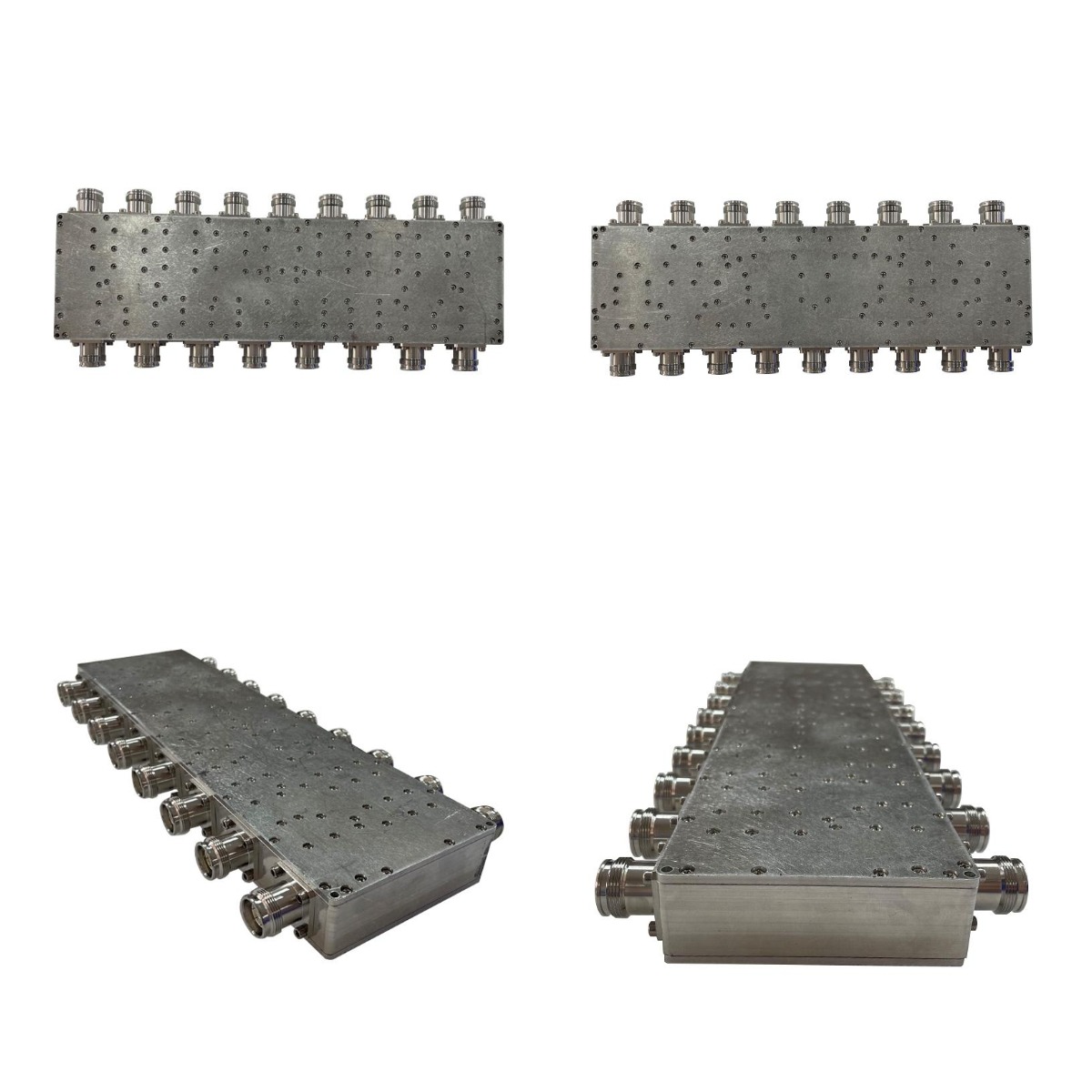

170-6000MHz Antenna Coupler With 4.3-10 Female Connector For IBS DAS

RF antenna Coupler covers frequency from170-6000MHz which is widely used for IBS DAS
  • Item NO.:

    MAC-1760-41-F
  • Product Orgin:

    China
  • Brand:

    Maniron
  • Shipping Port:

    Shanghai/Shenzhen/Ningbo
  • Products Details

Product name

170-6000MHz rf antenna coupler  for 5G DAS IBS


Product Features

◆Wide Frequency Bandfor 5G IBS BTS DAS

◆ 2G/3G/4G/LTE/5G Coverage

◆ Low Passive Intermodulation

◆ Low VSWR &Insertion Loss

◆ High Isolation, Indoor outdoor Application

◆ Widely used for In-building Solutions


Technical &Mechanical Specifications



Model No.

                                                            MAC-1760-41-F

Freq(MHz)

      170~6000MHZ

        VSWR (CAL PORT)

    1.45Max

        VSWR (CAL PORT)
                                                                1.35Max

   Insertion Loss(dB)

(In Ports to Out Ports

                                                                  1dB Max

   Insertion Loss(dB)

(CAL Ports to In Ports

                                                                 26±2.0dB

Isolation

(In Port to In Port)

50dB

      Amplitude Balance

(In Ports to Out Ports

±0.5dB

   Amplitude Balance

(CAL Port to In Ports

                                                       ±0.5dB

    Power Rating(W)

70W

RF Connectors

   50 ohm

   Connector

17*4.3-10-F

Finish

Conductive Oxidation

   Temp(deg)

-40~+75





We provide various types of Low PIM directional coupler for users at home and abroad!  High quality,best service and reasonable price, please contact us immediately.
